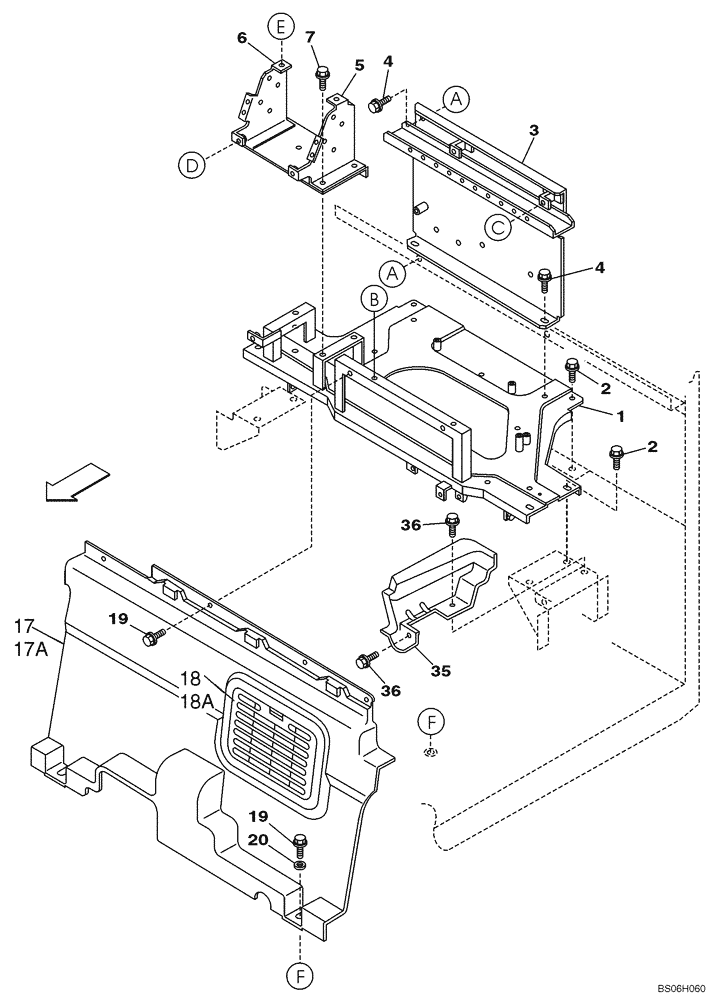

Запчасти Case CX290 (09-15) - OPERATORS COMPARTMENT (09) - CHASSIS

1

KHN2227

BRACKET

1шт.

2

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

6шт.

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

6шт.

3

KHN2810

BRACKET

1шт.

4

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

5

KHN2331

BRACKET

1шт.

6

KHN2330

BRACKET

1шт.

7

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

3шт.

KHN2239

PADDING

Grey, Incl. 17, 18

1шт.

KHN3593

PADDING

Wheat, Incl. 17A, 18A

1шт.

17

KHN2240

PADDING

Grey

1шт.

17a

KHN3595

PADDING

Wheat

1шт.

18

KHN2241

COVER

Grey

1шт.

18a

KHN3596

COVER

Wheat

1шт.

19

KHN2309

BOLT,Spcl

5шт.

20

KHN2312

WASHER

2шт.

35

KHN2395

PADDING

Grey

1шт.

35

KHN3599

PADDING

Wheat

1шт.

36

KHN2132

BOLT,Hex Flg Hd, M6 x 16

2шт.
