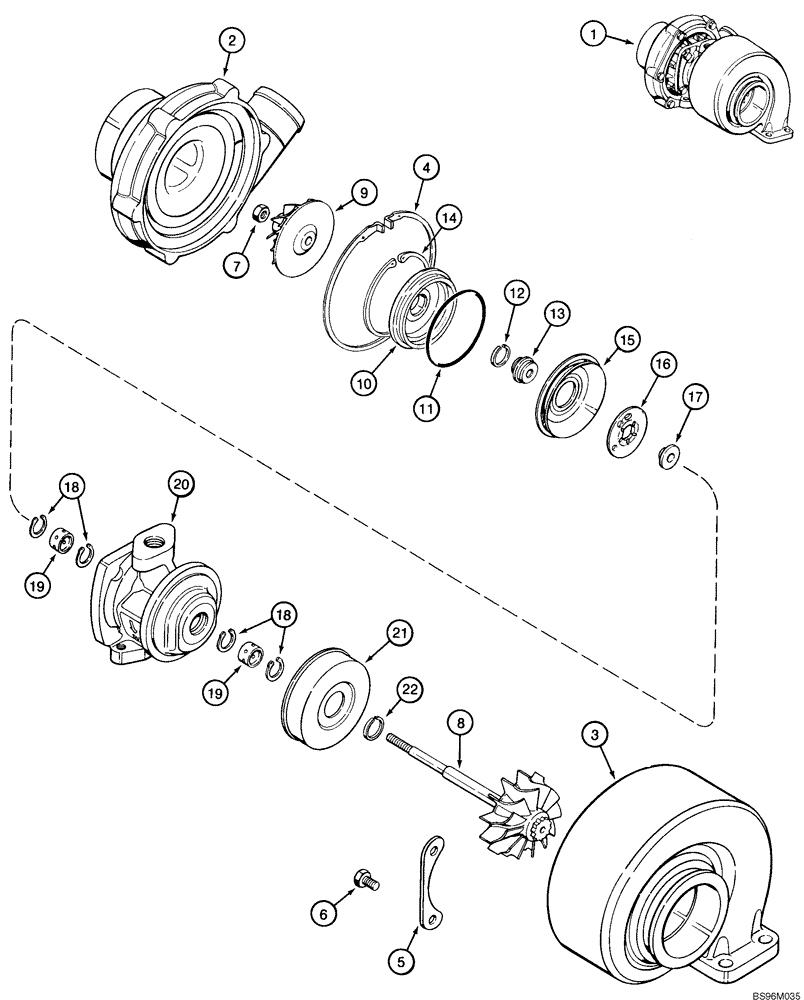

Запчасти Case CX290 (02-11) - TURBOCHARGER (02) - ENGINE

.

6TAA-5904 Emissions Certified Engine

1шт.

1

A77998

TURBOCHARGER

Incl. 2 - 23

1шт.

1

AR77998

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

1

AC77998

CORE-TURBOCHARGER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Compressor

1шт.

3

NSS

NOT SOLD SEPARAT

Housing, Turbine

1шт.

4

J533163

SNAP RING

1шт.

5

J534309

PLATE

2шт.

6

J759917

SET SCREW

4шт.

7

NSS

NOT SOLD SEPARAT

Nut

1шт.

8

NSS

NOT SOLD SEPARAT

Rotor Assy

1шт.

9

NSS

NOT SOLD SEPARAT

Impeller

1шт.

10

NSS

NOT SOLD SEPARAT

Plate

1шт.

11

NSS

NOT SOLD SEPARAT

Seal

1шт.

12

NSS

NOT SOLD SEPARAT

Seal

1шт.

13

NSS

NOT SOLD SEPARAT

Slinger

1шт.

14

NSS

NOT SOLD SEPARAT

Ring, Retaining

1шт.

15

NSS

NOT SOLD SEPARAT

Baffle

1шт.

16

NSS

NOT SOLD SEPARAT

Bearing, Thrust

1шт.

17

NSS

NOT SOLD SEPARAT

Collar

1шт.

18

NSS

NOT SOLD SEPARAT

Ring, Snap

4шт.

19

NSS

NOT SOLD SEPARAT

Bearing, Journal

2шт.

20

NSS

NOT SOLD SEPARAT

Housing

1шт.

21

NSS

NOT SOLD SEPARAT

Shield

1шт.

22

NSS

NOT SOLD SEPARAT

Seal

1шт.

23

838-5312

LOCK PIN,M3 x 12, Slotted

3 x 12 mm, Not Illustrated

1шт.

J575169

REPAIR KIT

Overhaul, Incl. 6, 7, 11, 12, 14 - 16, 18, 19, 22

1шт.
