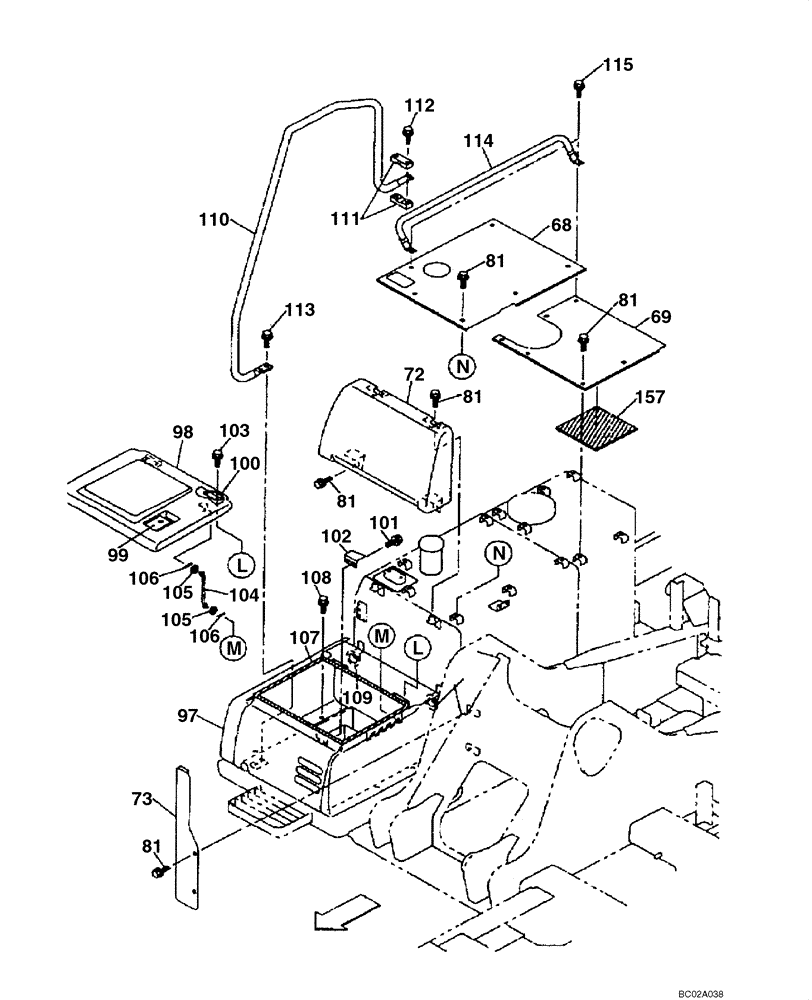

Запчасти Case CX290 (09-10) - STORAGE BOX - INSULATION (09) - CHASSIS

68

KRN2310Y2

COVER

1шт.

69

KRN2238Y2

COVER

1шт.

72

KRN2158Y2

COVER

1шт.

73

KRN2254Y2

COVER

1шт.

81

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

16шт.

97

KRN2157Y2

COVER

1шт.

98

KRN2203Y2

COVER

Incl. 99, 100

1шт.

99

150938A1

LOCK

1шт.

100

KHN3390

HINGE

Replaces 159118A1

2шт.

101

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

102

159114A1

BRACKET

1шт.

103

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

4шт.

104

159119A1

STAY

1шт.

105

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

106

153181A1

COTTER PIN

2шт.

107

KRN2295

RUBBER SEAL

1шт.

108

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

109

KHN2651

GROMMET

2шт.

110

KHN3032Y2

STAY

1шт.

111

KHN3033

COLLAR

2шт.

112

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

113

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

114

KBN1098Y2

STAY

1шт.

115

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

157

KRN2092

SEAL

1шт.
