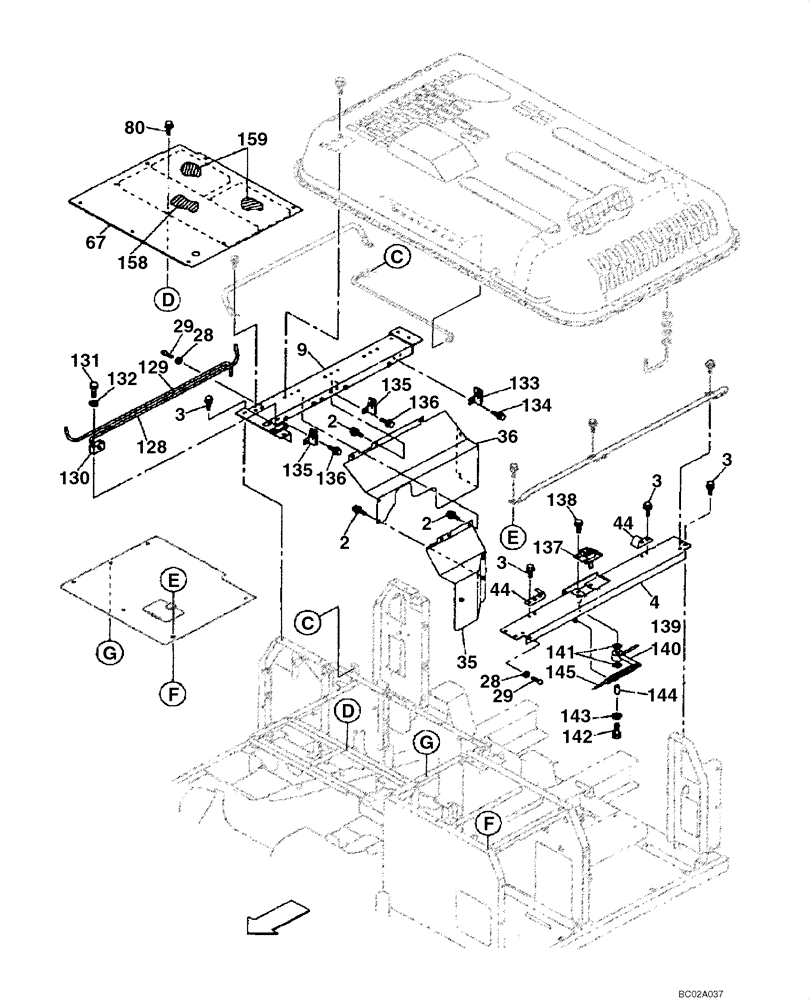

Запчасти Case CX290 (09-09) - HOOD, ENGINE - SUPPORTS (09) - CHASSIS

2

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

7шт.

3

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

12шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.

4

KBN1087G1

SUPPORT ASSY.

1шт.

9

KBN1092G1

SUPPORT ASSY.

P.I.N. DAC0729101 - DAC0729152

1шт.

9

KBN1249G1

SUPPORT ASSY.

P.I.N. DAC0729153 And After, Not Illustrated

1шт.

28

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

29

159091A1

STOP

2шт.

35

KBN1124

COVER

1шт.

36

KBN1125

COVER

1шт.

44

KSN1241

SUPPORT

2шт.

59

KBN1232

BRACKET

Used With Ref 9, KBN1249G1; Not Illustrated

1шт.

60

166352A1

BOLT

Used With Ref 9, KBN1249G1; Not Illustrated

2шт.

67

KRN2368Y2

COVER

1шт.

80

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

9шт.

128

KBN1137

SPRING

1шт.

129

KTN1308

SPRING

1шт.

130

KBN1097

SUPPORT

1шт.

131

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

132

150811A1

WASHER

M12

2шт.

133

166723A1

BRACKET

1шт.

134

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

135

KTN1313

SUPPORT

2шт.

136

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

137

KTN1400

LOCK

1шт.

138

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

139

KTN1319

LINK

Incl. 140

1шт.

140

160377A1

BEARING, NEEDLE,16 mm ID x 24 mm OD x 26 mm

1шт.

141

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

142

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

1шт.

143

153081A1

WASHER

1шт.

144

KTN1386

SPACER

1шт.

145

KSN1283

CABLE

See Figure 09-05

1шт.

158

KRN2258

FOAM INSULATION

1шт.

159

KRN2259

FOAM INSULATION

1шт.
