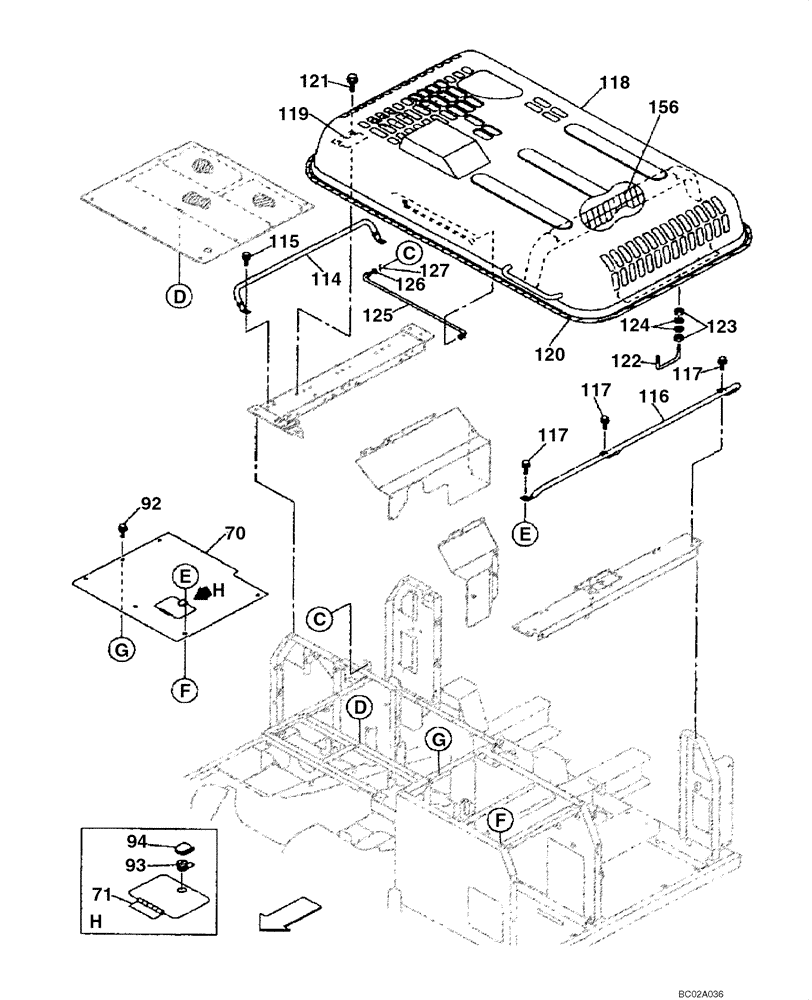

Запчасти Case CX290 (09-08) - HOOD, ENGINE - INSULATION (09) - CHASSIS

70

KBN1095Y2

TOP COVER

Top, Incl. 71

1шт.

71

162283A1

HINGE

1шт.

92

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

93

KNN0469

LOCK

1шт.

94

KAN2497

CAP

1шт.

114

KBN1098Y2

STAY

1шт.

115

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

116

KBN1099Y2

STAY

1шт.

117

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

118

KBN11720G1

ENGINE HOOD

HOOD ENGINE, Incl. 119; Replaces KBN1264G1,KBN1110G1

1шт.

119

KTN1287

HINGE

3шт.

120

KHN2065

SEAL PROTECTION

1шт.

121

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

9шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

9шт.

122

KTN1274

HOOK

1шт.

123

829-1416

NUT,M16, Cl 10

4шт.

124

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

4шт.

125

166679A1

STAY

1шт.

126

166575A1

SHIM

1шт.

127

KHN2373

PIN, SPLIT (COTTER)

PIN, COTTER

1шт.

156

KBN1104

SEAL

Cushion

1шт.
