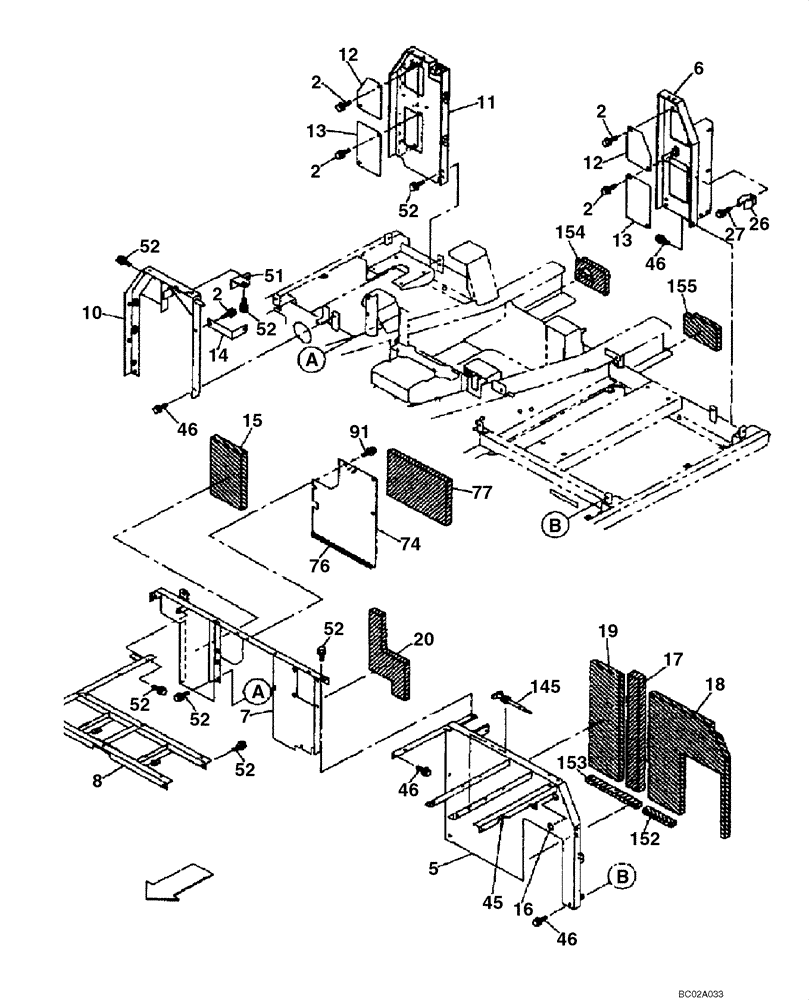

Запчасти Case CX290 (09-05) - FRAMES, COVERS - INSULATION (09) - CHASSIS

Upper Structure

1шт.

2

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

10шт.

5

KBN1122

SUPPORT ASSY.

1шт.

6

KBN1086

SUPPORT ASSY.

1шт.

7

KBN1123

SUPPORT ASSY.

1шт.

8

KBN1089

SUPPORT ASSY.

1шт.

10

KBN1133

SUPPORT ASSY.

P.I.N. DAC0729101 - DAC0729152

1шт.

10

KBN11630

SUPPORT ASSY.

FRAME, P.I.N. DAC0729153 And After, Replaces KBN10170

1шт.

11

KBN1091

SUPPORT ASSY.

1шт.

12

KRN2406

COVER

Center

2шт.

13

KRN2407

COVER

Center

2шт.

14

KBN1127

SUPPORT

1шт.

15

KRN2259

FOAM INSULATION

1шт.

16

KMR0307

GROMMET

Rubber

1шт.

17

KBN1134

SEAL

Cushion

1шт.

18

KBN1128

NOISE PROTECTION

1шт.

19

KRN2269

NOISE PROTECTION

1шт.

20

KRN2268

NOISE PROTECTION

1шт.

26

152772A1

HOLDER

1шт.

27

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

45

159310A1

GASKET

1шт.

46

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

12шт.

51

KNN1346

BRACKET

1шт.

52

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

11шт.

74

KBN1126

COVER

Center

1шт.

76

NSS

NOT SOLD SEPARAT

Trim

1шт.

77

KBN1132

NOISE PROTECTION

1шт.

91

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

145

KSN1283

CABLE

See Figure 09-09

1шт.

152

KBN1135

SEAL

Cushion

1шт.

153

KBN1106

SEAL

Cushion

1шт.

154

KBN1035

FOAM INSULATION

Cushion

1шт.

155

KBN1036

FOAM INSULATION

Cushion

1шт.
