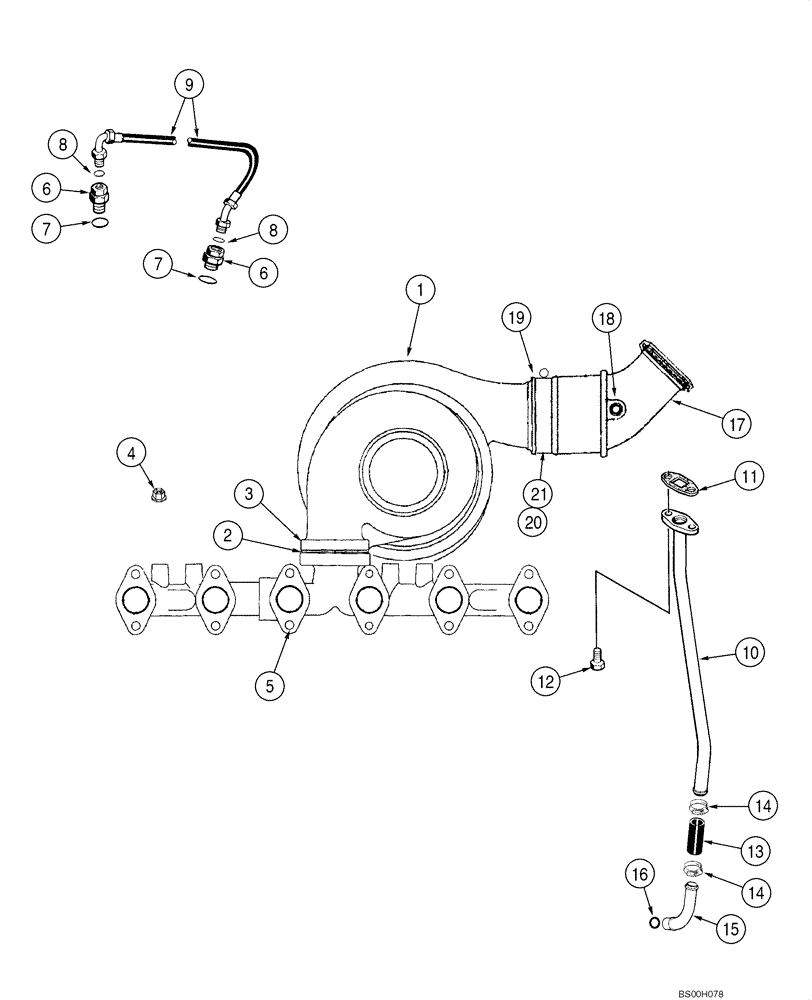

Запчасти Case CX290 (02-10) - TURBOCHARGER SYSTEM (02) - ENGINE

6TAA-5904 Emissions Certified Engine

1шт.

1

REF

INSTRUCTION

Turbocharger, See Figure 02-11

1шт.

2

J919369

GASKET,0.5mm Thk

1шт.

3

J818823

STUD

4шт.

4

J818824

FLANGE NUT

M10

4шт.

5

REF

INSTRUCTION

Manifold, Exhaust, See Figure 02-09, REF 1, 2

1шт.

J922789

HYD CONNECTOR

Incl. 6 - 8

2шт.

6

NSS

NOT SOLD SEPARAT

Adapter

1шт.

7

J678603

O-RING,2.2mm Thk x 9.3mm ID

1шт.

8

313262A1

O-RING,0.07" Thk x 0.364" ID

(M9.2 ID x 1.7 Thk)

1шт.

9

J930840

HOSE

475 mm (18-3/4 in)

1шт.

10

J945191

TUBE

1шт.

11

J937706

GASKET,0.79mm Thk

1шт.

12

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

2шт.

13

J286499

HOSE

1шт.

14

214-1512

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm, W/ Liner

2шт.

15

J931973

TUBE,0.875" OD

1шт.

16

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

17

J918327

ELBOW

Air Transfer

1шт.

18

86637724

PLUG,1/8" - 27 NPT

1шт.

19

J883284

O-RING,0.07" Thk x 2.364" ID, -36

1шт.

20

J069053

CLAMP,66.54mm ID

1шт.

21

231-1444

NUT,1/4"-20, GB

1шт.

22

A170467

CLAMP,72mm ID

Not Illustrated

1шт.
