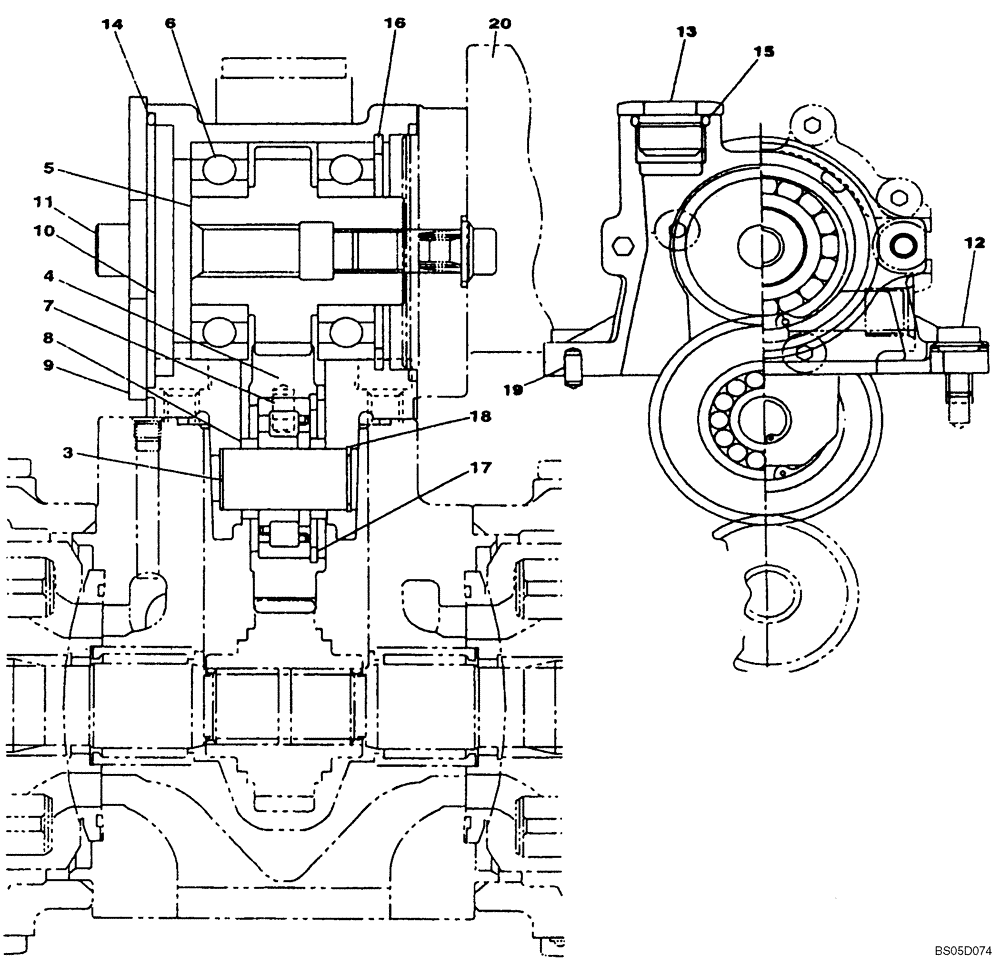

Запчасти Case CX290 (08-93) - KBJ2895 PUMP ASSY, GEAR PUMP (08) - HYDRAULICS

KBJ2895

PUMP, HYDRAULIC

Includes All Parts on Figures 08-92 - 08-96

1шт.

87341985

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP, For N.A. Only

1шт.

87341986

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

LC00159

HYDRAULIC PUMP

Gear, Incl. 3 - 19

1шт.

3

NSS

NOT SOLD SEPARAT

Shaft, Idler

1шт.

4

NSS

NOT SOLD SEPARAT

Gear, Pinion

1шт.

5

NSS

NOT SOLD SEPARAT

Gear, Pinion

1шт.

6

NSS

NOT SOLD SEPARAT

Bearing, Roller

2шт.

7

NSS

NOT SOLD SEPARAT

Bearing, Roller

1шт.

8

NSS

NOT SOLD SEPARAT

Spacer

2шт.

9

NSS

NOT SOLD SEPARAT

Cover

1шт.

10

NSS

NOT SOLD SEPARAT

Case, Gear

1шт.

11

863-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

2шт.

12

LA00691

BOLT,Hex Skt Hd

4шт.

13

155471A1

PLUG

1шт.

14

154697A1

O-RING

1шт.

15

154503A1

O-RING

1шт.

16

800-2172

SNAP RING

1шт.

17

800-2152

SNAP RING,M52, Int

1шт.

18

800-2120

SNAP RING,M20, Int

1шт.

19

157018A1

COTTER PIN

2шт.

20

LJ00683

PUMP, HYDRAULIC

Gear; See Figure 08-94

1шт.
