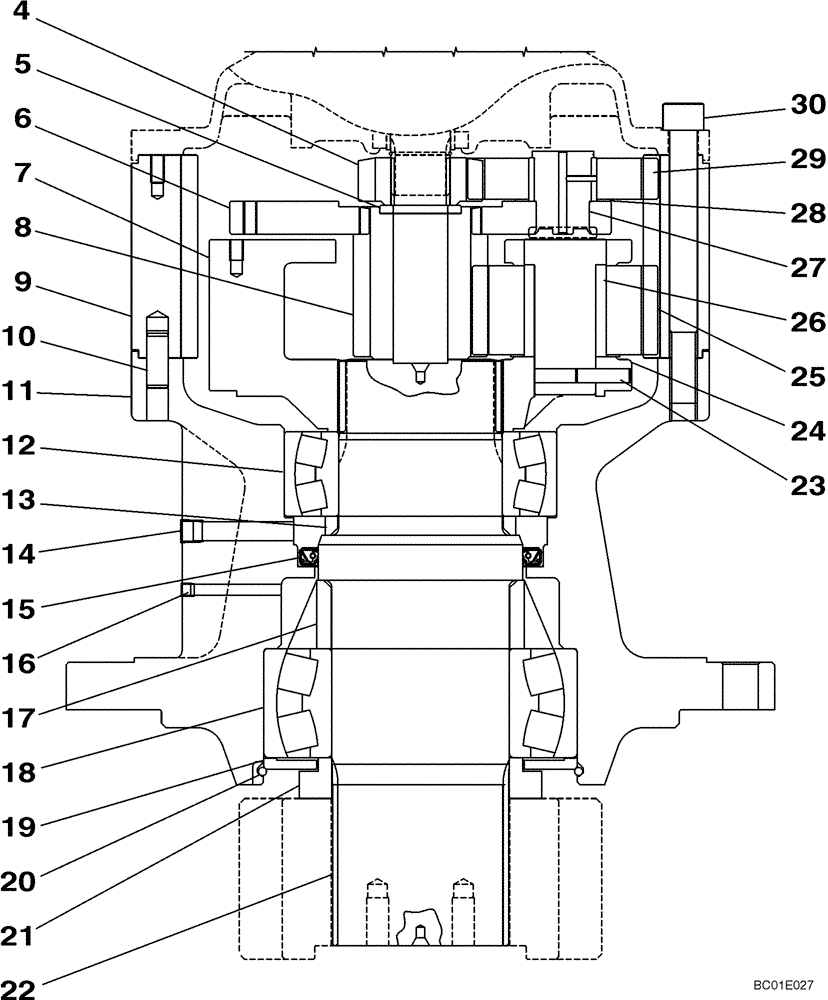

Запчасти Case CX290 (08-67) - GEAR ASSY, REDUCTION MOTOR, SWING (08) - HYDRAULICS

KSC0253

REDUCER

Incl. 4 - 30, Replaces KSC0235

1шт.

KSC10250R

REMAN-REDUCTION UNIT

CX290 CASE CRAWLER EXCAVATOR (NORTH AMERICA), Reman for New PN KSC0253

1шт.

KSC10250C

CORE-REDUCTION UNIT

Return Number

1шт.

4

KSC0220

SUN GEAR

1шт.

5

KSC0212

PLATE, THRUST

Thrust

1шт.

6

KSC0245

CARRIER

Incl. 27 - 29

1шт.

7

KSC0246

CARRIER

Incl. 23 - 26

1шт.

8

KSC0219

SUN GEAR

1шт.

9

KSC0221

RING

1шт.

10

KTC0155

PIN

4шт.

11

KSC0248

BOX

Gear, Replaces KSC0225

1шт.

12

KSC0207

BEARING,120mm ID x 200mm OD x 62mm W

1шт.

13

KSC0210

SPACER

1шт.

14

150824A1

PLUG

1шт.

15

KTC0153

OIL SEAL

1шт.

16

158352A1

PLUG

2шт.

17

KSC0249

SPACER

Replaces KSC0211

1шт.

18

150491A1

ROLLER BEARING,130mm ID x 280mm OD x 93mm W

Replaces KSC0206

1шт.

19

KSC0250

BEARING COVER

Bearing, Replaces KSC0213

1шт.

20

KSC0251

RETAINING WIRE

Replaces KSC0209

1шт.

21

KSC0214

SPACER

1шт.

22

KSC0222

SHAFT

1шт.

23

NSS

NOT SOLD SEPARAT

Pin, Spring

4шт.

24

NSS

NOT SOLD SEPARAT

Plate

4шт.

25

NSS

NOT SOLD SEPARAT

Gear, Planetary

4шт.

26

NSS

NOT SOLD SEPARAT

Pin, Special

4шт.

27

NSS

NOT SOLD SEPARAT

Pin, Special

3шт.

28

NSS

NOT SOLD SEPARAT

Plate

3шт.

29

NSS

NOT SOLD SEPARAT

Gear, Planetary

3шт.

30

150483A1

BOLT,Hex Skt, M20

12шт.
