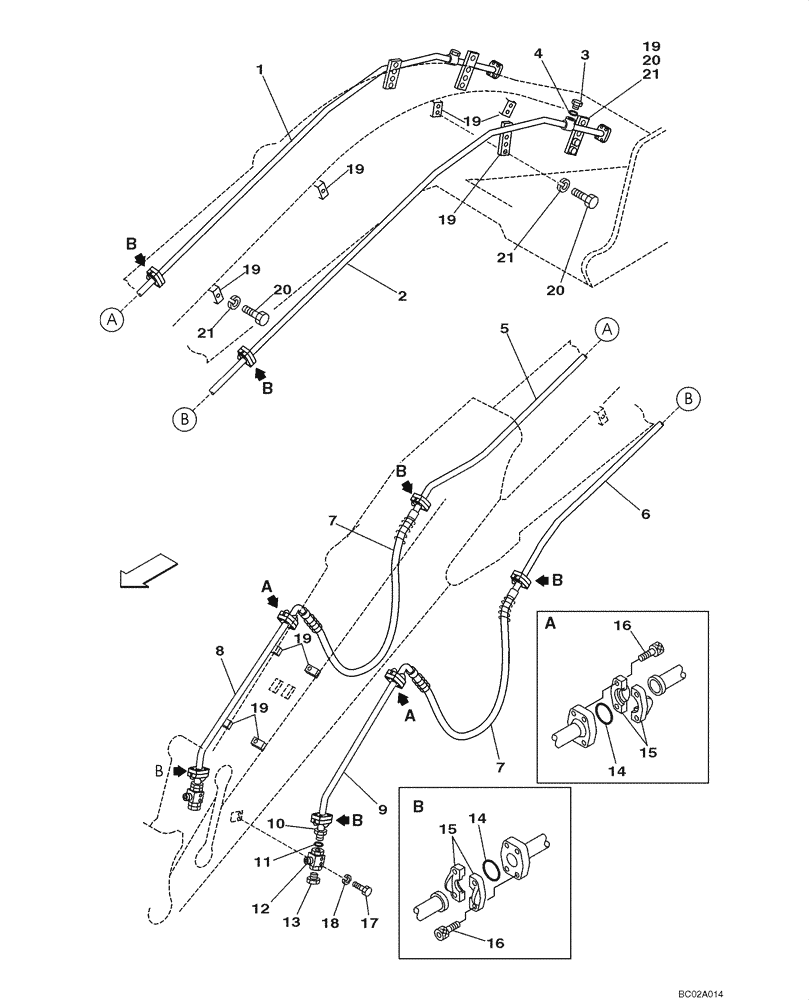

Запчасти Case CX290 (08-64) - HYDRAULICS - AUXILIARY ATTACHMENT (08) - HYDRAULICS

Arm 3,2 m (10 Ft 6 In)

1шт.

Standard Arm

1шт.

1

KBV1762

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

2

KBV1763

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

3

152924A1

PLUG

Incl. 4

2шт.

4

154503A1

O-RING

1шт.

5

KBV1710

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

6

KBV1711

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

7

KBV1764

HYDRAULIC HOSE,31.80 mm ID x 2150.00 mm

2шт.

8

KBV1909

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

9

KBV1910

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

10

KHV0451

FITTING

Incl. 11

2шт.

11

154559A1

O-RING

1шт.

12

KHV10700

VALVE SECTION

Stop; Replaces KHV0389

2шт.

13

162335A1

PLUG

2шт.

14

164450A1

O-RING

8шт.

15

150124A1

FLANGE

Split

16шт.

16

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

32шт.

17

627-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9, Full Thd

4шт.

18

150811A1

WASHER

M12

4шт.

19

KTV1209

CLAMP

14шт.

20

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

14шт.

21

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

14шт.
