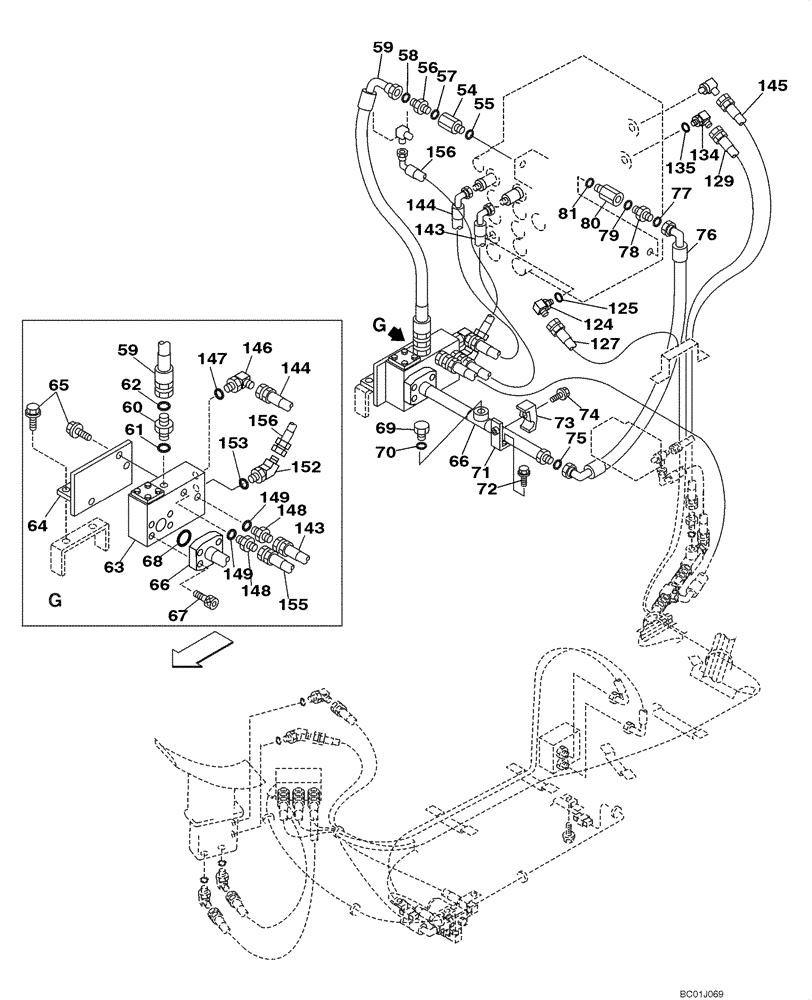

Запчасти Case CX290 (08-61) - HYDRAULICS - MULTIFUNCTION AUXILIARY (08) - HYDRAULICS

54

152012A1

ELEC CONNECTOR

Incl. 55

1шт.

55

154503A1

O-RING

1шт.

56

KHJ1348

ADAPTER

Incl. 57

1шт.

57

154503A1

O-RING

1шт.

58

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

59

KRJ5936

HYDRAULIC HOSE,19.00 mm ID x 560.00 mm

1шт.

60

KHJ1348

ADAPTER

Incl. 61

1шт.

61

154503A1

O-RING

1шт.

62

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

63

KHJ1340

VALVE

See Figure 08-76

1шт.

64

KRJ5938

BRACKET

1шт.

65

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

5шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

5шт.

66

KRJ5940

TUBE ASSY.,20.8 mm ID x 27.2 mm OD

1шт.

67

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

68

154528A1

O-RING

1шт.

69

152924A1

PLUG

Incl. 70

1шт.

70

154503A1

O-RING

1шт.

71

KRJ5939

BRACKET

1шт.

72

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

1шт.

73

151486A1

CLAMP BRACKET

1шт.

74

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

75

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

76

KRJ5937

HYDRAULIC HOSE,19.00 mm ID x 720.00 mm

1шт.

77

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

78

KHJ1348

ADAPTER

Incl. 79

1шт.

79

154503A1

O-RING

1шт.

80

159198A1

ADAPTER

Incl. 81

1шт.

81

154503A1

O-RING

1шт.

124

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 125

1шт.

125

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

127

151904A1

HOSE,6.3mm ID x 3100mm L

See Figure 08-62

1шт.

129

165397A1

HYDRAULIC HOSE

See Figure 08-62

1шт.

134

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 135

1шт.

135

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

143

159235A1

HYDRAULIC HOSE

850 mm (KRJ3572)

1шт.

144

159019A1

HOSE ASSY.

900 mm (35-1/2 in)

1шт.

145

164728A1

HYDRAULIC HOSE,6.30 mm ID x 1150.00 mm

See Figure 08-62

1шт.

146

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 147

1шт.

147

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

148

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 149

2шт.

149

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

152

150933A1

ELBOW

Incl. 53

1шт.

153

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

155

164791A1

HOSE ASSY.

See Figure 08-62

1шт.

156

162563A1

HOSE ASSY.

1шт.
