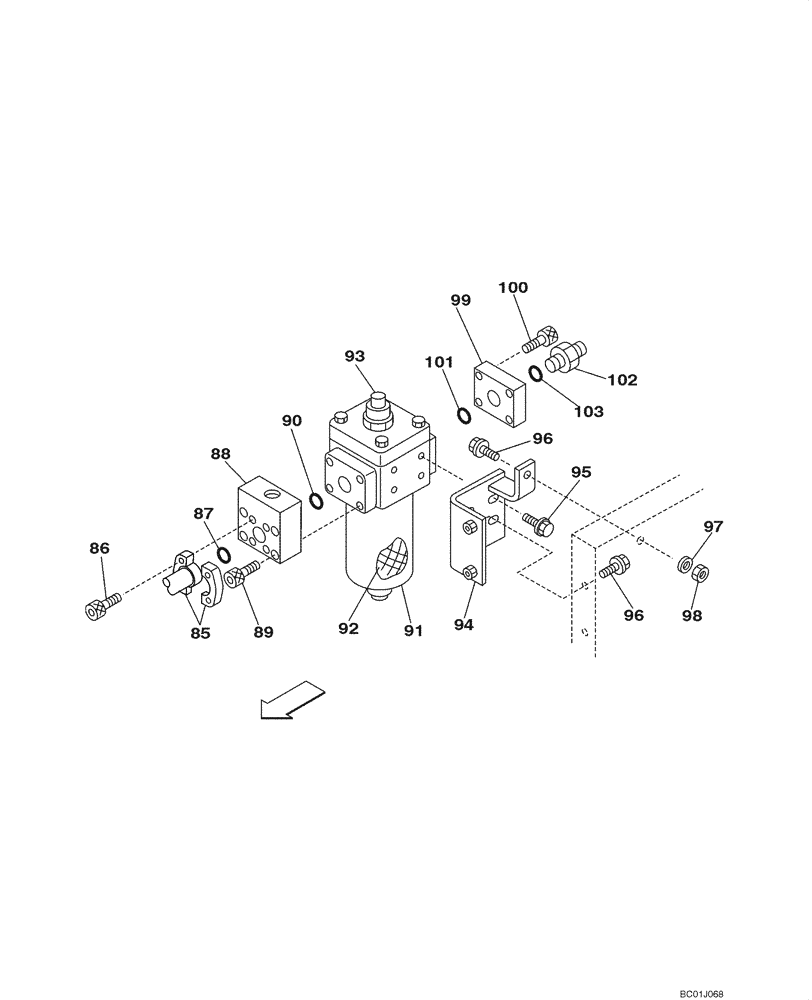

Запчасти Case CX290 (08-60) - FILTER ASSY - MULTIFUNCTION AUXILIARY (08) - HYDRAULICS

85

153459A1

FLANGE

2шт.

86

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

87

155211A1

O-RING

1шт.

88

KRJ5934

MANIFOLD

1шт.

89

862-10055

HEX SOC SCREW,M10 x 55mm, Cl 12.9

4шт.

90

154625A1

O-RING

1шт.

91

159704A1

FILTER ASSY

Incl. 92, 93, For Additional Components, See Figure 08-82A

1шт.

92

159705A1

HYDRAULIC OIL FILTER

1шт.

93

159706A1

INDICATOR

1шт.

94

KRJ6180

BRACKET

1шт.

95

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

96

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

97

150811A1

WASHER

M12

1шт.

98

829-1412

NUT,M12, Cl 10.9

1шт.

99

KRJ5954

FLANGE

Flat

1шт.

100

862-10025

HEX SOC SCREW,M10 x 25mm, Cl 12.9

4шт.

101

154625A1

O-RING

1шт.

102

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

Incl. 103

1шт.

103

154523A1

O-RING

1шт.
