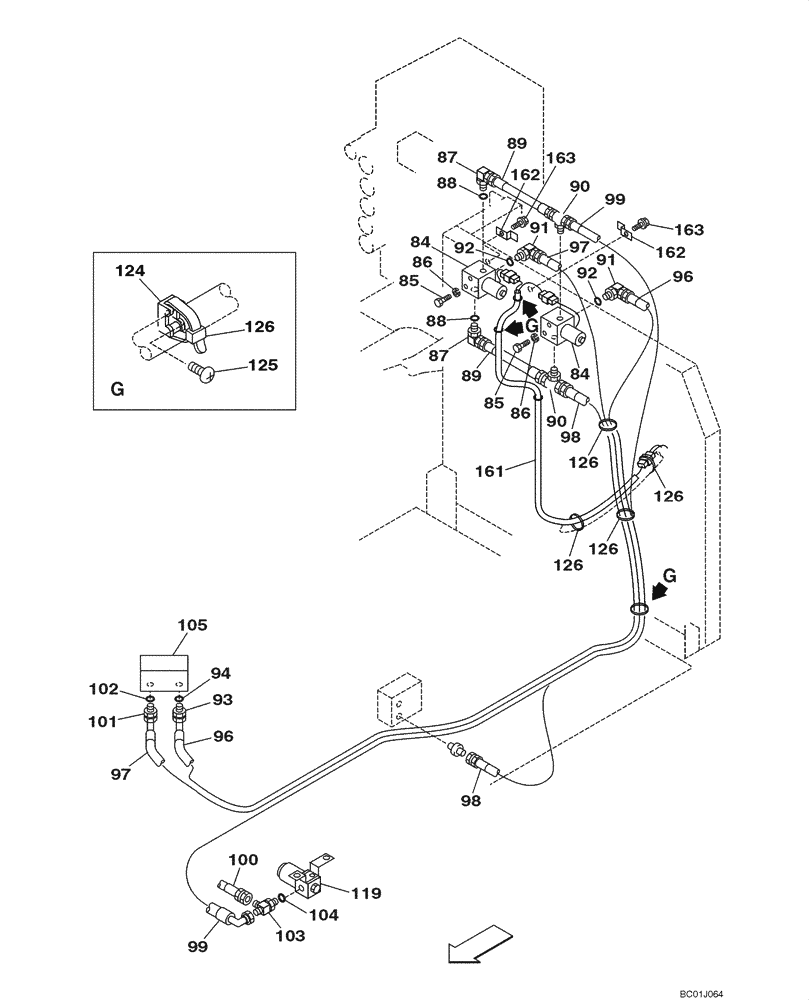

Запчасти Case CX290 (08-56) - HYDRAULICS - DOUBLE ACTING CIRCUIT/THUMB (08) - HYDRAULICS

84

162538A1

VALVE

See Figure 08-71

2шт.

85

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

4шт.

86

892-11006

LOCK WASHER,M6

4шт.

87

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 88

2шт.

88

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

89

MPJ2264

HOSE ASSY.,6.30 mm ID x 230.00 mm

2шт.

90

167321A1

TEE

2шт.

91

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 92

2шт.

92

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

93

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 94

1шт.

94

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

96

159009A1

HOSE ASSY.

1шт.

97

162193A1

HOSE ASSY.

1шт.

98

153484A1

HOSE ASSY.

1700 mm (67 in)

1шт.

99

167352A1

HOSE,2500.00 mm

1шт.

100

159235A1

HYDRAULIC HOSE

See Figure 08-55, 850 mm (KRJ3572)

1шт.

101

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 102

1шт.

102

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

103

159497A1

TEE

Incl. 104

1шт.

104

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

105

KHJ17100

VALVE PRESSURE RELIE

Replaces KHJ1655

1шт.

119

162538A1

VALVE

See Figure 08-55, 08-71

1шт.

124

150860A1

COLLAR

3шт.

125

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

3шт.

126

150496A1

MOUNTING CLIP

250 mm (10 in)

7шт.

161

KHR3329

HARNESS

1шт.

162

165405A1

CLIP

2шт.

163

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

2шт.
