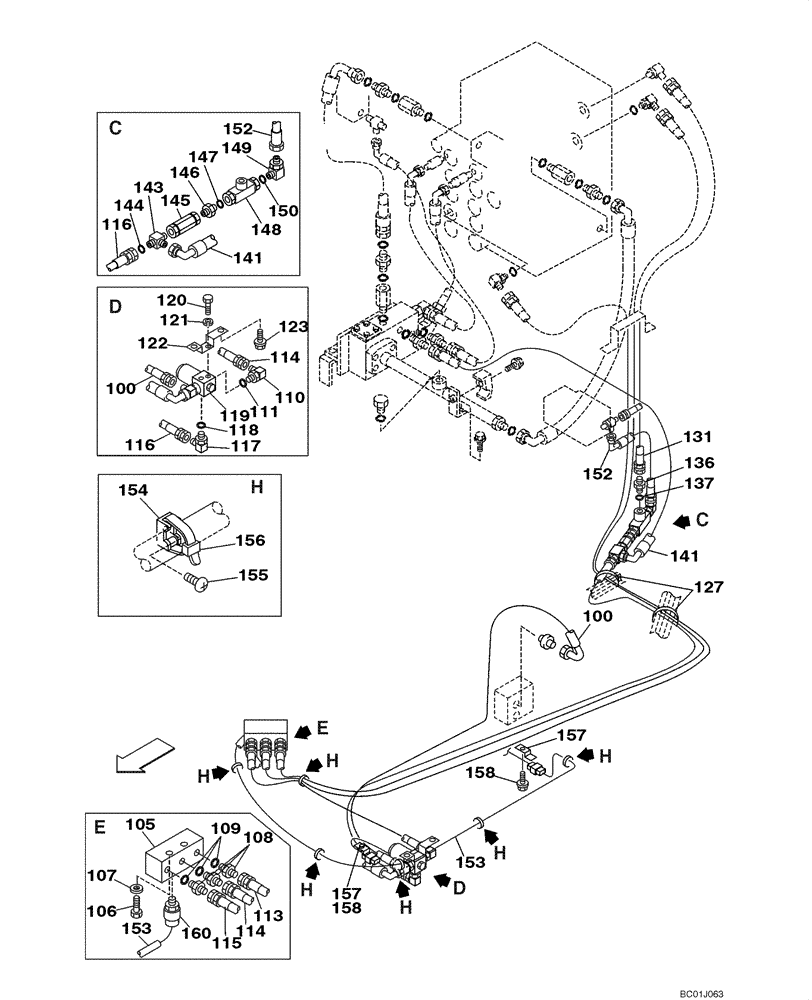

Запчасти Case CX290 (08-55) - HYDRAULICS - DOUBLE ACTING CIRCUIT/THUMB (08) - HYDRAULICS

100

159235A1

HYDRAULIC HOSE

See Figure 08-56, 850 mm (KRJ3572)

1шт.

105

KHJ17100

VALVE PRESSURE RELIE

Replaces KHJ1655

1шт.

106

827-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 10.9

2шт.

107

153081A1

WASHER

2шт.

108

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 109

3шт.

109

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

110

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 111

1шт.

111

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

113

151904A1

HOSE,6.3mm ID x 3100mm L

See Figure 08-54

1шт.

114

161272A1

HOSE

1шт.

115

165397A1

HYDRAULIC HOSE

See Figure 08-54

1шт.

116

152581A1

HOSE,6.3mm ID x 1900mm L

1шт.

117

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 118

1шт.

118

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

119

162538A1

VALVE

See Figure 08-56, 08-71

1шт.

120

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

2шт.

121

892-11006

LOCK WASHER,M6

2шт.

122

KRJ5751

BRACKET

1шт.

123

627-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

127

150071A1

MOUNTING CLIP

2шт.

131

164728A1

HYDRAULIC HOSE,6.30 mm ID x 1150.00 mm

See Figure 08-54

1шт.

136

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 137

1шт.

137

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

141

164791A1

HOSE ASSY.

See Figure 08-54

1шт.

143

159497A1

TEE

Incl. 144

1шт.

144

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

145

167853A1

ADAPTER

1шт.

146

162654A1

HYD CONNECTOR

Incl. 147

1шт.

147

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

148

KHJ17090

VALVE PRESSURE RELIE

; Replaces 158186A1

1шт.

149

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 150

1шт.

150

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

152

167353A1

HOSE,400.00 mm

1шт.

153

KHR3351

HARNESS

1шт.

154

150860A1

COLLAR

6шт.

155

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

6шт.

156

150496A1

MOUNTING CLIP

250 mm (10 in)

6шт.

157

165405A1

CLIP

2шт.

158

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

2шт.

160

159599A1

PRESSURE SWITCH

1шт.
