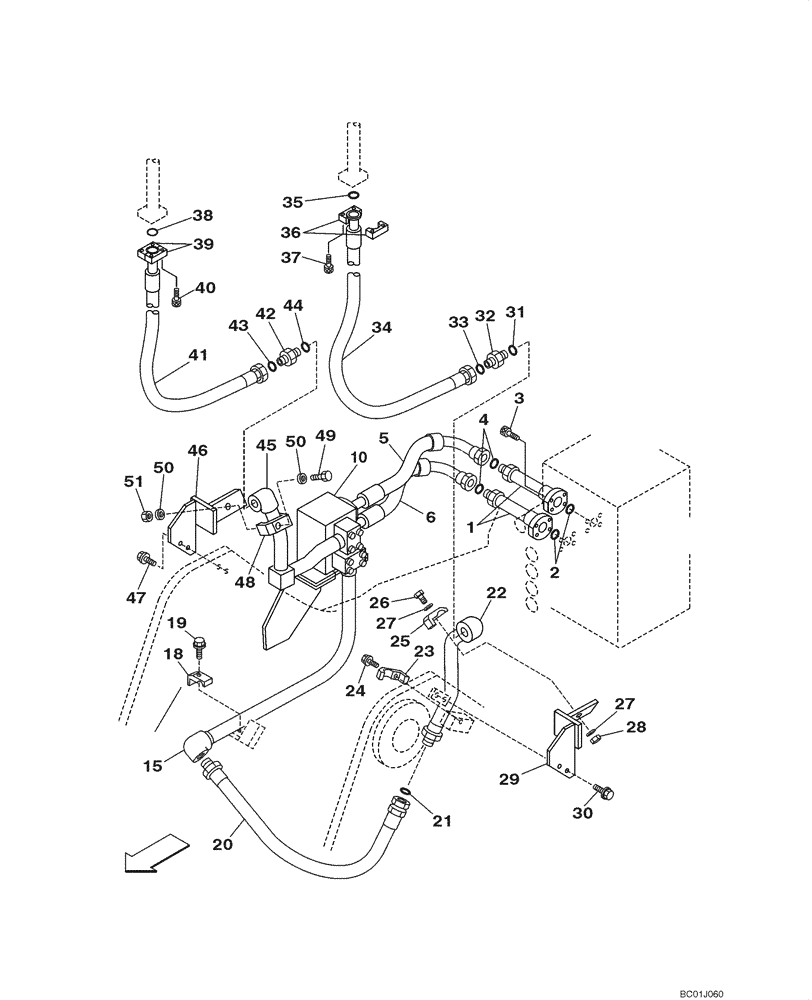

Запчасти Case CX290 (08-52) - HYDRAULICS - DOUBLE ACTING CIRCUIT/THUMB (08) - HYDRAULICS

1

KRJ5920

TUBE ASSY.,26 mm ID x 34 mm OD

2шт.

2

154548A1

O-RING

2шт.

3

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

8шт.

4

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

5

KRJ5926

HYDRAULIC HOSE,25.40 mm ID x 725.00 mm

See Figure 08-53

1шт.

6

KRJ5927

HYDRAULIC HOSE,25.40 mm ID x 575.00 mm

See Figure 08-53

1шт.

10

KHJ1857

MANIFOLD

See Figure 08-53

1шт.

15

KRJ6173

TUBE ASSY.,26 mm ID x 34 mm OD

1шт.

18

152974A1

COLLAR

1шт.

19

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

20

KRJ5929

HYDRAULIC HOSE,25.40 mm ID x 1010.00 mm

1шт.

21

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

22

KRJ6174

TUBE ASSY.,26 mm ID x 34 mm OD

1шт.

23

152974A1

COLLAR

1шт.

24

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

25

150777A1

COLLAR

1шт.

26

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

1шт.

27

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

2шт.

28

829-1416

NUT,M16, Cl 10

1шт.

29

KRJ6314

BRACKET

1шт.

30

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

31

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

32

KHJ1349

ADAPTER

Incl. 33

1шт.

33

154523A1

O-RING

1шт.

34

KRJ6476

HYDRAULIC HOSE,25.40 mm ID x 1550.00 mm

1шт.

35

164450A1

O-RING

1шт.

36

150124A1

FLANGE

Split

2шт.

37

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

4шт.

38

164450A1

O-RING

1шт.

39

150124A1

FLANGE

Split

2шт.

40

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

4шт.

41

KRJ6476

HYDRAULIC HOSE,25.40 mm ID x 1550.00 mm

1шт.

42

KHJ1349

ADAPTER

Incl. 43

1шт.

43

154523A1

O-RING

1шт.

44

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

45

KRJ6176

TUBE ASSY.,26 mm ID x 34 mm OD

1шт.

46

KRJ6313

BRACKET

1шт.

47

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

48

150777A1

COLLAR

1шт.

49

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

1шт.

50

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

2шт.

51

829-1416

NUT,M16, Cl 10

1шт.
