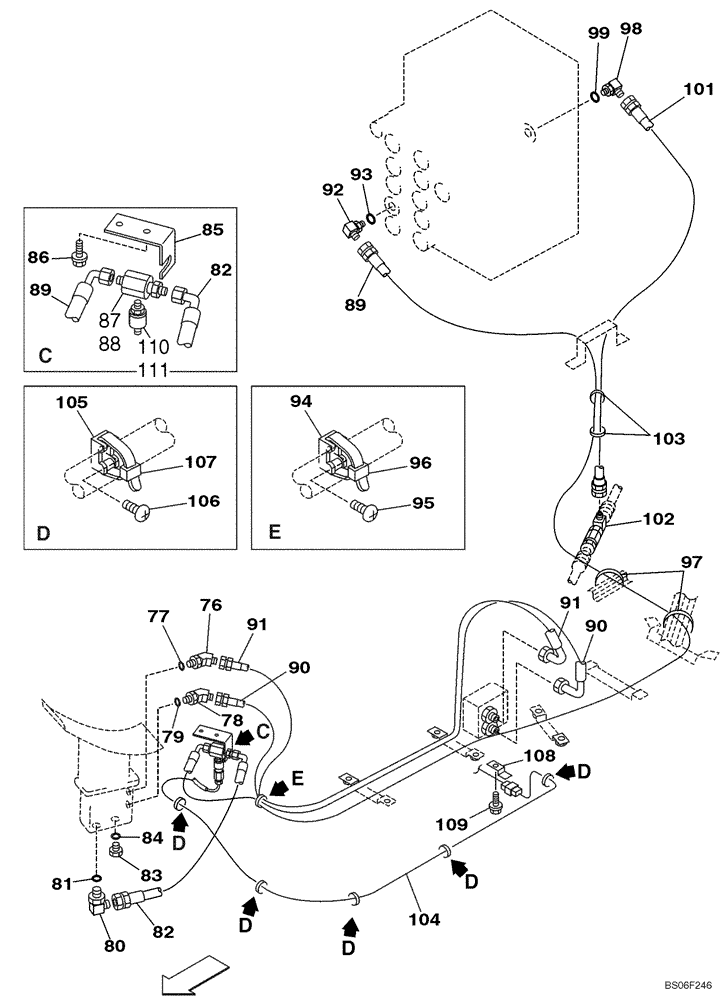

Запчасти Case CX290 (08-50) - HYDRAULICS - SINGLE ACTING CIRCUIT/HAMMER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
76
150933A1
ELBOW
Incl. 77
1шт.
77
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
78
KHJ0994
ADAPTER
Incl. 79
1шт.
79
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
80
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 81
1шт.
81
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
82
161483A1
HOSE ASSY.
1шт.
83
159002A1
PLUG
Incl. 84
1шт.
84
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
85
KHJ2127
BRACKET
1шт.
86
627-8016
BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd
2шт.
896-15008
WASHER,9mm ID x 21mm OD x 2.5mm Thk
2шт.
87
167852A1
ADAPTER
Used With 159599A1 Sensor, REF 110
1шт.
88
KHJ11470
ADAPTER
Used With KHR10790 Switch, REF 111
1шт.
89
164232A1
HOSE ASSY.
3150 mm (124-1/8 in)
1шт.
90
164236A1
HOSE ASSY.
1000 mm (39-3/8 in)
1шт.
91
159019A1
HOSE ASSY.
900 mm (35-1/2 in)
1шт.
92
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 93
1шт.
93
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
94
150860A1
COLLAR
1шт.
95
840-168
SCREW,Pan, M6 x 1 x 8mm, Cl 4.8
1шт.
96
150496A1
MOUNTING CLIP
250 mm (10 in)
1шт.
97
150071A1
MOUNTING CLIP
2шт.
98
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 99
1шт.
99
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
101
164728A1
HYDRAULIC HOSE,6.30 mm ID x 1150.00 mm
1шт.
102
163422A1
TEE
1шт.
103
150067A1
MOUNTING CLIP
150 mm (6 in)
2шт.
104
KHR3350
HARNESS
1шт.
105
150860A1
COLLAR
5шт.
106
840-168
SCREW,Pan, M6 x 1 x 8mm, Cl 4.8
5шт.
107
150496A1
MOUNTING CLIP
250 mm (10 in)
5шт.
108
165405A1
CLIP
1шт.
109
156559A1
BOLT,High Strength, Hex, M6 x 12mm, W/ LW
1шт.
110
159599A1
PRESSURE SWITCH
No Longer Used, Order KHR10790
1шт.
111
KHR10790
PRESSURE SWITCH
Used With KHJ11470 Adapter, Ref 88
1шт.
112
150067A1
MOUNTING CLIP
Not Illustrated
1шт.
Выбрано товаров: 37
