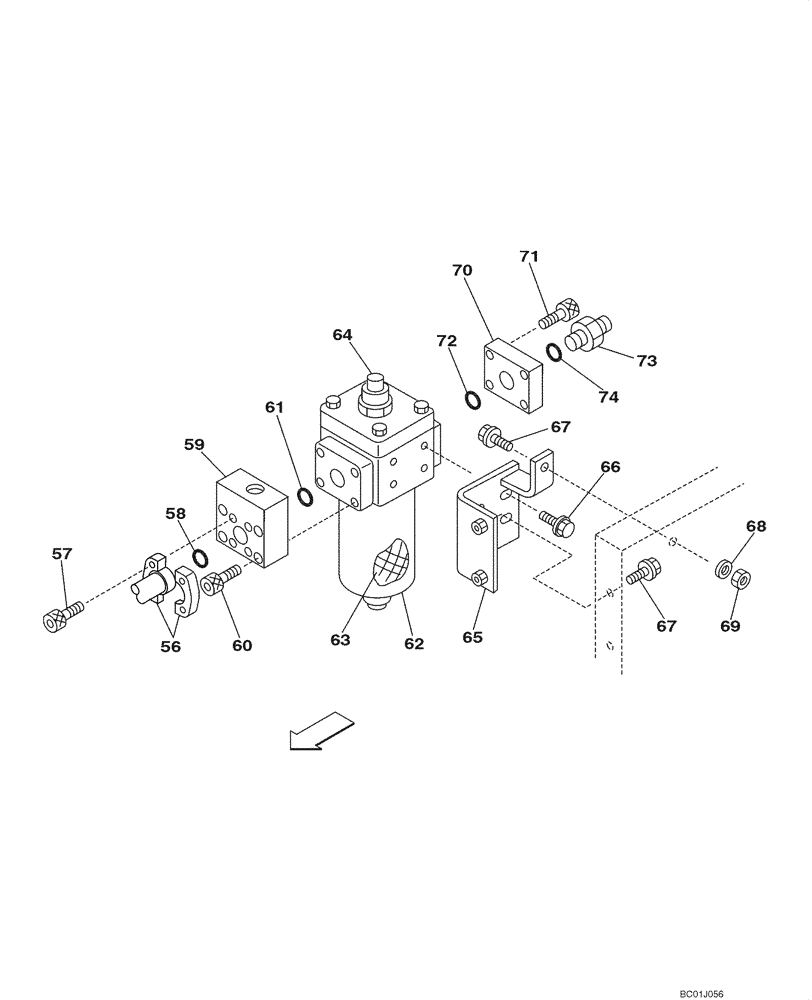

Запчасти Case CX290 (08-49) - FILTER ASSY - SINGLE ACTING CIRCUIT/HAMMER (08) - HYDRAULICS

56

153459A1

FLANGE

2шт.

57

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

58

155211A1

O-RING

1шт.

59

KRJ5934

MANIFOLD

1шт.

60

862-10055

HEX SOC SCREW,M10 x 55mm, Cl 12.9

4шт.

61

154625A1

O-RING

1шт.

62

159704A1

FILTER ASSY

Incl. 63, 64, Also See Figure 08-47

1шт.

63

159705A1

HYDRAULIC OIL FILTER

1шт.

64

159706A1

INDICATOR

1шт.

65

KRJ6180

BRACKET

1шт.

66

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

67

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

68

150811A1

WASHER

M12

1шт.

69

829-1412

NUT,M12, Cl 10.9

1шт.

70

KRJ5954

FLANGE

Flat

1шт.

71

862-10025

HEX SOC SCREW,M10 x 25mm, Cl 12.9

4шт.

72

154625A1

O-RING

1шт.

73

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

Incl. 74

1шт.

74

154523A1

O-RING

1шт.
