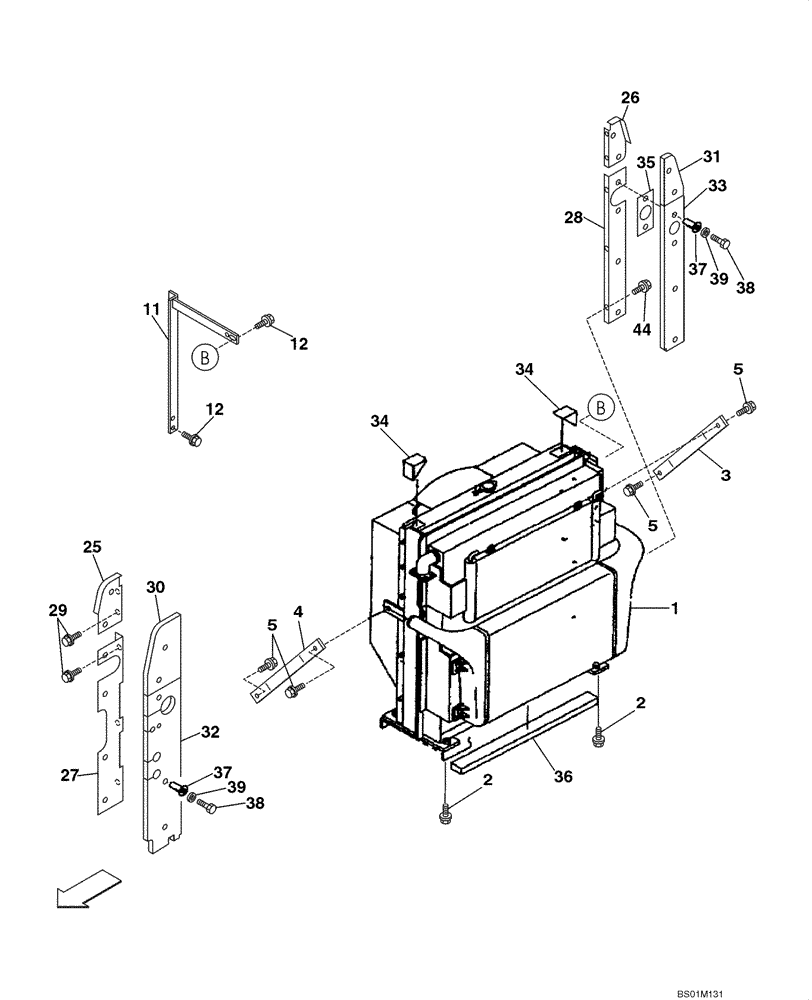

Запчасти Case CX290 (02-04) - RADIATOR - COOLANT RECOVERY SYSTEM (02) - ENGINE

1

KBH0885

RADIATOR

Not Serviced As An Assembly, See Figure 02-06

1шт.

2

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

3

KBH0904

STAY

1шт.

4

KBH0905

STAY

1шт.

5

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

11

KBH0912

FRAME

1шт.

12

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

25

KBH0930

BRACKET

1шт.

26

KBH0931

BRACKET

1шт.

27

KBH0932

BRACKET

1шт.

28

KBH0933

BRACKET

1шт.

29

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

10шт.

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

10шт.

30

KBH0925

SEAL

Cushion

1шт.

31

KBH0926

SEAL

Cushion

1шт.

32

KBH0927

SEAL

Cushion

1шт.

33

KBH0947

SEAL

Cushion

1шт.

34

KBH0934

SEAL

Cushion

2шт.

35

KBH0929

RUBBER

1шт.

36

KTH0606

SEAL

Cushion

1шт.

37

KHH0358

RETAINER

12шт.

38

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

12шт.

39

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

12шт.
