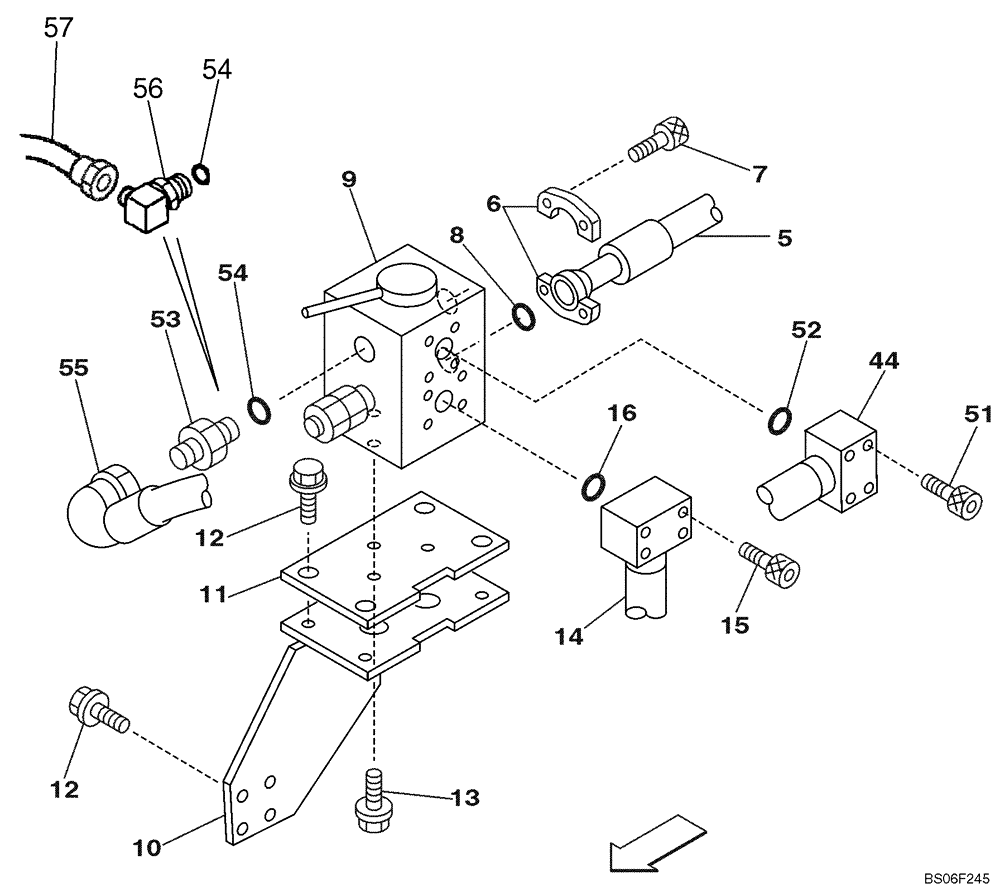

Запчасти Case CX290 (08-48) - MANIFOLD - SINGLE ACTING CIRCUIT/HAMMER (08) - HYDRAULICS

5

KRJ5927

HYDRAULIC HOSE,25.40 mm ID x 575.00 mm

1шт.

6

153459A1

FLANGE

Split

2шт.

7

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

8

155211A1

O-RING

1шт.

9

KHJ1841

MANIFOLD

See Figure 08-47, 08-78

1шт.

10

KRJ6171

BRACKET

1шт.

11

KRJ6172

BRACKET

1шт.

12

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

8шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

13

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

14

KRJ6173

TUBE ASSY.,26 mm ID x 34 mm OD

1шт.

15

862-10065

HEX SOC SCREW,M10 x 65mm, Cl 12.9

4шт.

16

154548A1

O-RING

1шт.

44

KRJ6176

TUBE ASSY.,26 mm ID x 34 mm OD

1шт.

51

862-10065

HEX SOC SCREW,M10 x 65mm, Cl 12.9

4шт.

52

154548A1

O-RING

1шт.

53

153001A1

ADAPTER

Incl. 54; No Longer Used, For Service Order KHJ0603, REF 56

1шт.

54

154503A1

O-RING

1шт.

55

KBJ2975

HYDRAULIC HOSE

Used With REF 53, No Longer Used, Service With KBJ3090 Hose and KHJ0603 Elbow

1шт.

56

KHJ0603

ELBOW

Incl. 54

1шт.

57

KBJ3090

HYDRAULIC HOSE,19.00 mm ID x 830.00 mm

Used With KHJ0603 Elbow

1шт.
