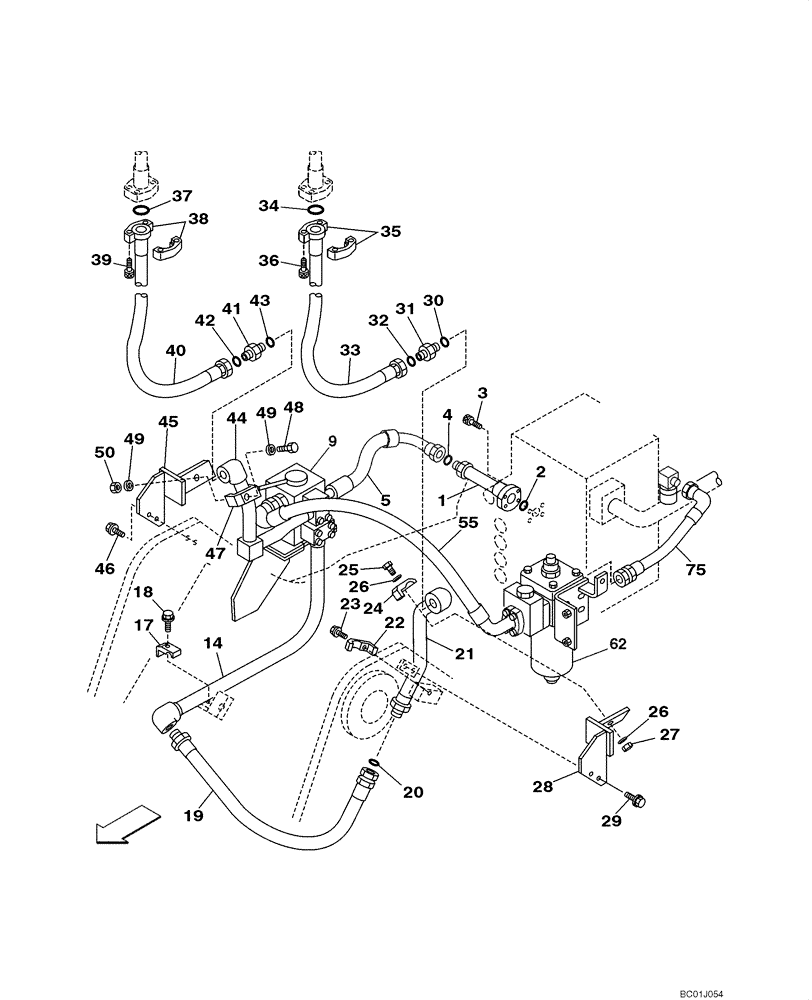

Запчасти Case CX290 (08-47) - HYDRAULICS - SINGLE ACTING CIRCUIT/HAMMER (08) - HYDRAULICS

1

KRJ5920

TUBE ASSY.,26 mm ID x 34 mm OD

1шт.

2

154548A1

O-RING

1шт.

3

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

4

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

5

KRJ5927

HYDRAULIC HOSE,25.40 mm ID x 575.00 mm

1шт.

9

KHJ1841

MANIFOLD

See Figure 08-48, 08-78

1шт.

14

KRJ6173

TUBE ASSY.,26 mm ID x 34 mm OD

1шт.

17

152974A1

COLLAR

1шт.

18

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

19

KRJ5929

HYDRAULIC HOSE,25.40 mm ID x 1010.00 mm

1шт.

20

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

21

KRJ6174

TUBE ASSY.,26 mm ID x 34 mm OD

1шт.

22

152974A1

COLLAR

1шт.

23

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

24

150777A1

COLLAR

1шт.

25

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

1шт.

26

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

2шт.

27

829-1416

NUT,M16, Cl 10

1шт.

28

KRJ6314

BRACKET

1шт.

29

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

30

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

31

KHJ1349

ADAPTER

Incl. 32

1шт.

32

154523A1

O-RING

1шт.

33

KRJ6476

HYDRAULIC HOSE,25.40 mm ID x 1550.00 mm

1шт.

34

164450A1

O-RING

1шт.

35

150124A1

FLANGE

2шт.

36

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

4шт.

37

164450A1

O-RING

1шт.

38

150124A1

FLANGE

2шт.

39

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

4шт.

40

KRJ6476

HYDRAULIC HOSE,25.40 mm ID x 1550.00 mm

1шт.

41

KHJ1349

ADAPTER

Incl. 42

1шт.

42

154523A1

O-RING

1шт.

43

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

44

KRJ6176

TUBE ASSY.,26 mm ID x 34 mm OD

2шт.

45

KRJ6313

BRACKET

1шт.

46

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

47

150777A1

COLLAR

1шт.

48

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

1шт.

49

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

2шт.

50

829-1416

NUT,M16, Cl 10

1шт.

55

KBJ3090

HYDRAULIC HOSE,19.00 mm ID x 830.00 mm

See Figure 08-48; Replaces KBJ2975

1шт.

62

159704A1

FILTER ASSY

See Figure 08-49

1шт.

75

KAJ4823

HYDRAULIC HOSE,25.40 mm ID x 410.00 mm

1шт.
