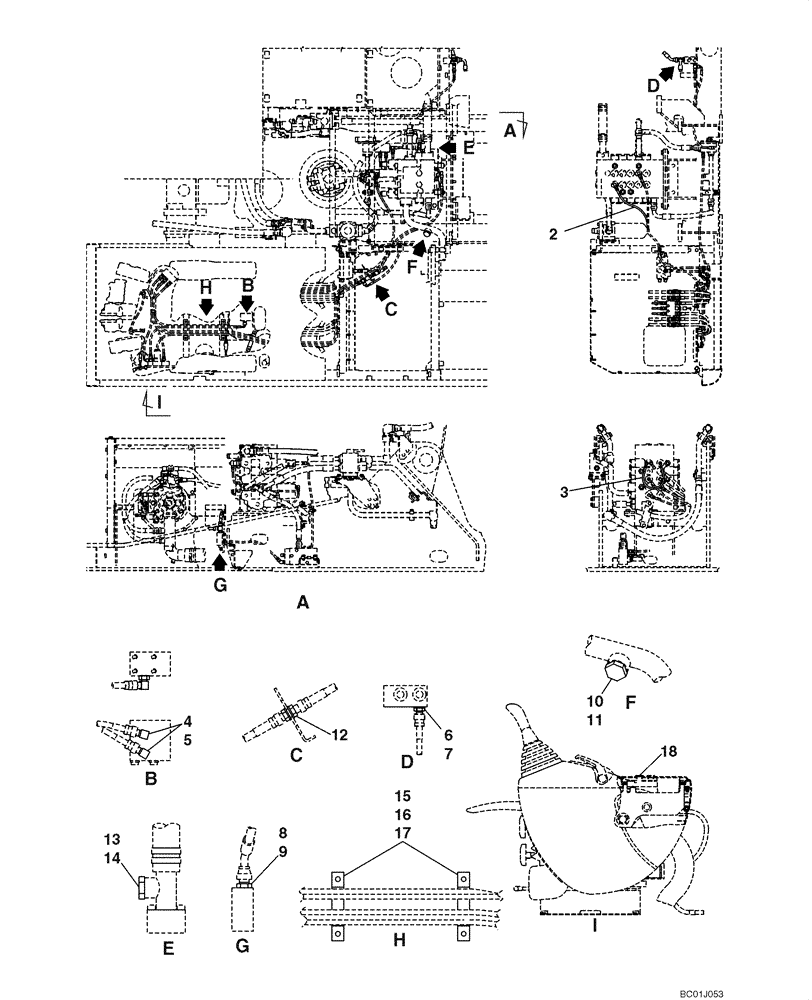

Запчасти Case CX290 (08-46) - HYDRAULICS - RETURN LINES (08) - HYDRAULICS

Models Without Auxiliary Hydraulics

1шт.

2

KSJ2117

HOSE

1шт.

3

161176A1

HOSE ASSY.

450 mm (17-3/4 in)

1шт.

4

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 5

2шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

8

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 9

1шт.

9

154487A1

O-RING

1шт.

10

152924A1

PLUG

Incl. 11

1шт.

11

154503A1

O-RING

1шт.

12

162826A1

ADAPTER

1шт.

13

152924A1

PLUG

Incl. 14

1шт.

14

154503A1

O-RING

1шт.

15

KHJ1951

CLAMP

2шт.

16

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

4шт.

17

153081A1

WASHER

4шт.

18

KHR2913

CAP

1шт.
