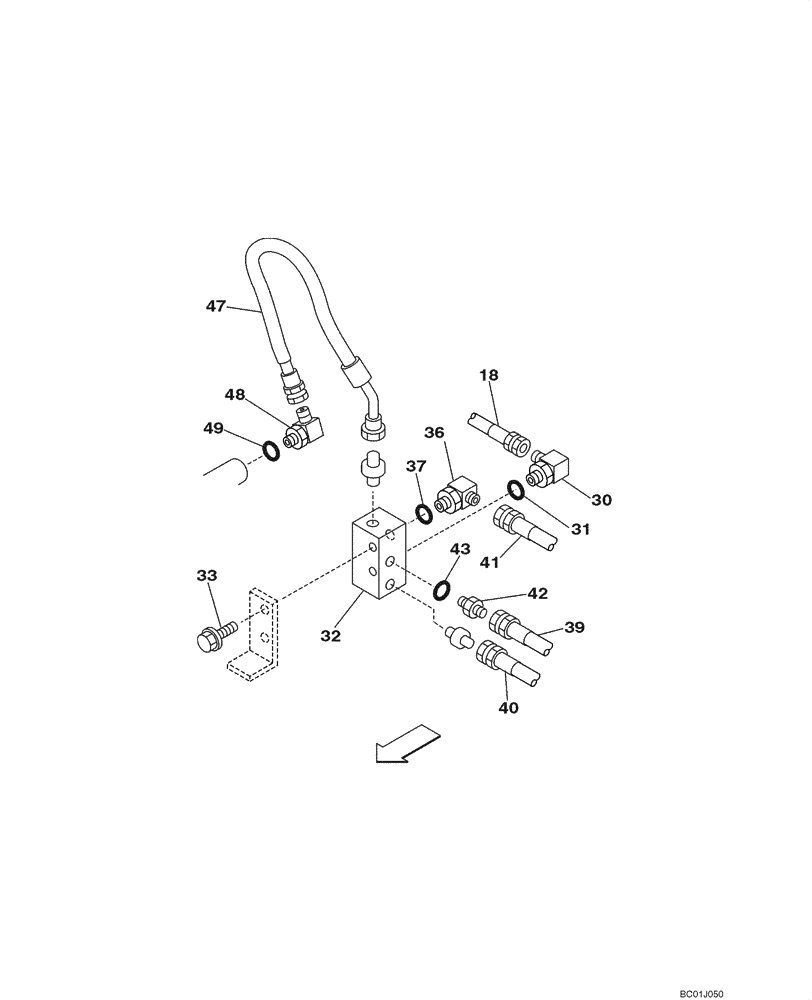

Запчасти Case CX290 (08-43) - MANIFOLD - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

18

KHJ1460

HYDRAULIC HOSE

See Figure 08-42

1шт.

30

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 31

1шт.

31

154475A1

O-RING

1шт.

32

KRJ6101

MANIFOLD

See Figure 08-41

1шт.

33

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

36

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 37

1шт.

37

154475A1

O-RING

1шт.

39

152773A1

HOSE ASSY.

See Figure 08-45

1шт.

40

152773A1

HOSE ASSY.

See Figure 08-45

1шт.

41

152713A1

HOSE ASSY.

See Figure 08-45

1шт.

42

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 43

1шт.

43

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

47

KRJ6096

HYDRAULIC HOSE,12.70 mm ID x 720.00 mm

1шт.

48

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 49

1шт.

49

154487A1

O-RING

1шт.
