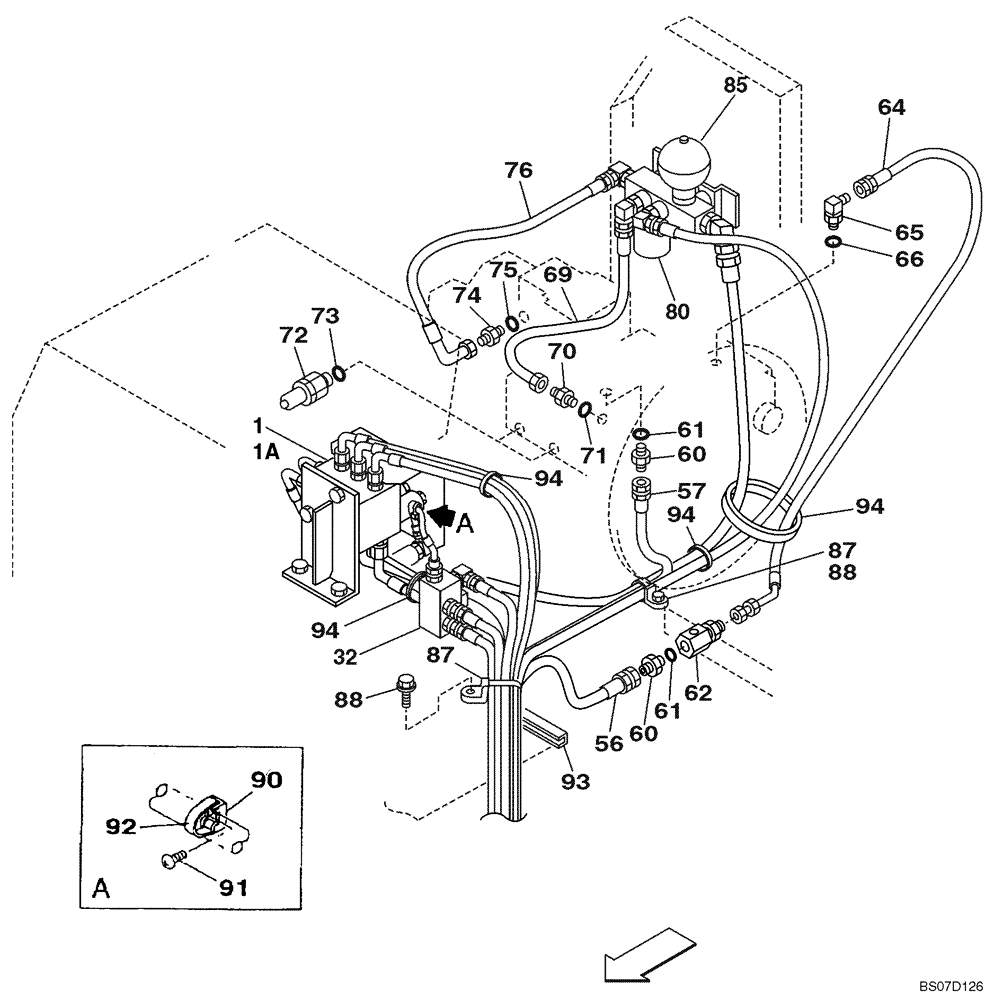

Запчасти Case CX290 (08-41) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

1

KHJ1972

SOLENOID VALVE

See Figures 08-42, 08-80; No Longer Available, Order KHJ15460

1шт.

1a

KHJ15460

SOLENOID VALVE

See Figures 08-42, 08-80A

1шт.

32

KRJ6101

MANIFOLD

See Figure 08-43

1шт.

56

152604A1

HOSE,63.00 mm ID x 1600.00 mm

See Figure 08-45

1шт.

57

157851A1

HOSE

2850 mm (112-1/4 in), See Figure 08-45

1шт.

60

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 61

2шт.

61

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

62

167662A1

FITTING

1шт.

64

151877A1

HOSE,63.00 mm ID x 1200.00 mm

1шт.

65

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 66

1шт.

66

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

69

255423A1

HOSE ASSY.

See Figure 08-44

1шт.

70

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 71

1шт.

71

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

72

KHJ1584

UNION

Incl. 73

1шт.

73

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

74

161084A1

ADAPTER

Incl. 75

1шт.

75

154487A1

O-RING

1шт.

76

KHJ1264

HYDRAULIC HOSE,9.52 mm ID x 800.00 mm

See Figure 08-44

1шт.

80

KHJ2431

MANIFOLD

See Figure 08-44

1шт.

85

150894A1

ACCUMULATOR

See Figure 08-44

1шт.

87

KHR2582

CLAMP

2шт.

88

KHJ2298

BOLT,Spcl

2шт.

90

150860A1

COLLAR

1шт.

91

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

92

150496A1

MOUNTING CLIP

250 mm (10 in)

1шт.

93

167839A1

GROMMET

1шт.

94

150071A1

MOUNTING CLIP

1шт.
