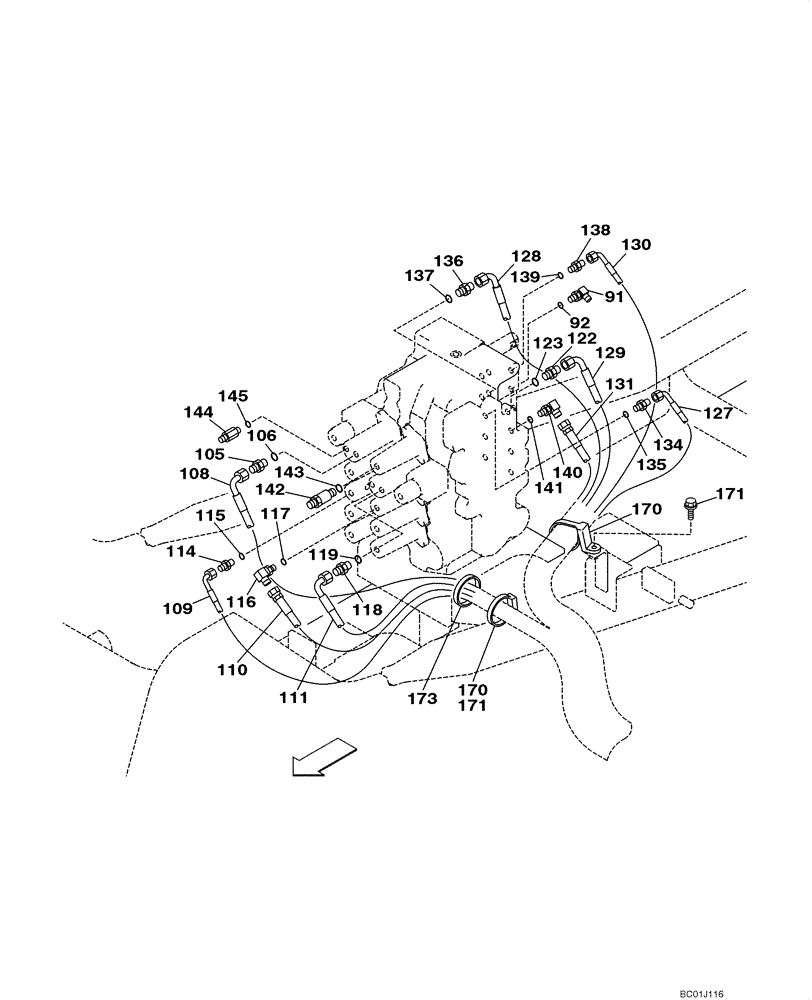

Запчасти Case CX290 (08-39) - HYDRAULICS - PILOT CONTROL LINES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
Control Valve
1шт.
Models With Load Hold And Alternate Joystick Control Pattern
1шт.
91
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 92
1шт.
92
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
105
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 106
1шт.
106
154475A1
O-RING
1шт.
108
162565A1
HOSE ASSY.
1000 mm (39-3/8 in), See Figure 08-32
1шт.
109
KHJ1608
HOSE
See Figure 08-31
1шт.
110
159071A1
HOSE
See Figure 08-31
1шт.
111
159224A1
HOSE ASSY.
900 mm (35-1/2 in), See Figure 08-32
1шт.
114
159848A1
ORIFICE
Special, With Orifice, Incl. 115
1шт.
115
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
116
153559A1
ELBOW
Incl. 117
1шт.
117
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
118
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 119
1шт.
119
154475A1
O-RING
1шт.
122
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 123
1шт.
123
154475A1
O-RING
1шт.
127
161657A1
HOSE ASSY.
1600 mm (63 in), See Figure 08-31
1шт.
128
161492A1
HOSE
See Figure 08-32
1шт.
129
KHJ1606
HYDRAULIC HOSE
See Figure 08-32
1шт.
130
162648A1
HOSE
See Figure 08-32
1шт.
131
157963A1
HOSE
See Figure 08-31
1шт.
134
159848A1
ORIFICE
Incl. 135
1шт.
135
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
136
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 137
2шт.
137
154475A1
O-RING
1шт.
138
162366A1
ADAPTER
Incl. 139
1шт.
139
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
140
153559A1
ELBOW
Incl. 141
1шт.
141
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
142
163104A1
ADAPTER
Incl. 143
1шт.
143
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
144
162554A1
FITTING
Incl. 145
1шт.
145
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
170
KHR2582
CLAMP
2шт.
171
KHJ2298
BOLT,Spcl
2шт.
173
150071A1
MOUNTING CLIP
1шт.
Выбрано товаров: 38
