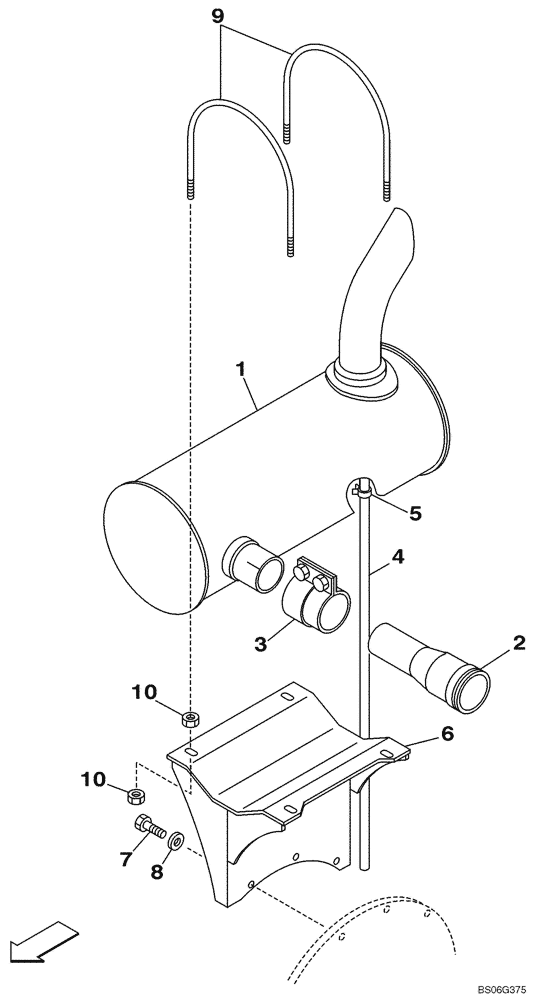

Запчасти Case CX290 (02-03) - EXHAUST SYSTEM - MUFFLER (02) - ENGINE

1

KBH0863

MUFFLER

1шт.

2

KBH0867

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST

1шт.

3

KRH1321

ASSEMBLY

Mounting

1шт.

4

150662A1

TUBE,10 mm ID, 950 mm Length

950 mm (37-3/8 in), Teflon

1шт.

5

165952A1

MOUNTING CLIP

Replaces 151367A1

1шт.

6

KBH0868

BRACKET

1шт.

7

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

3шт.

8

150409A1

WASHER

10,5 x 21 x 3,2 mm

3шт.

9

KBH0850

U-BOLT

BOLT "U"

2шт.

10

150472A1

FLANGE NUT

8шт.
