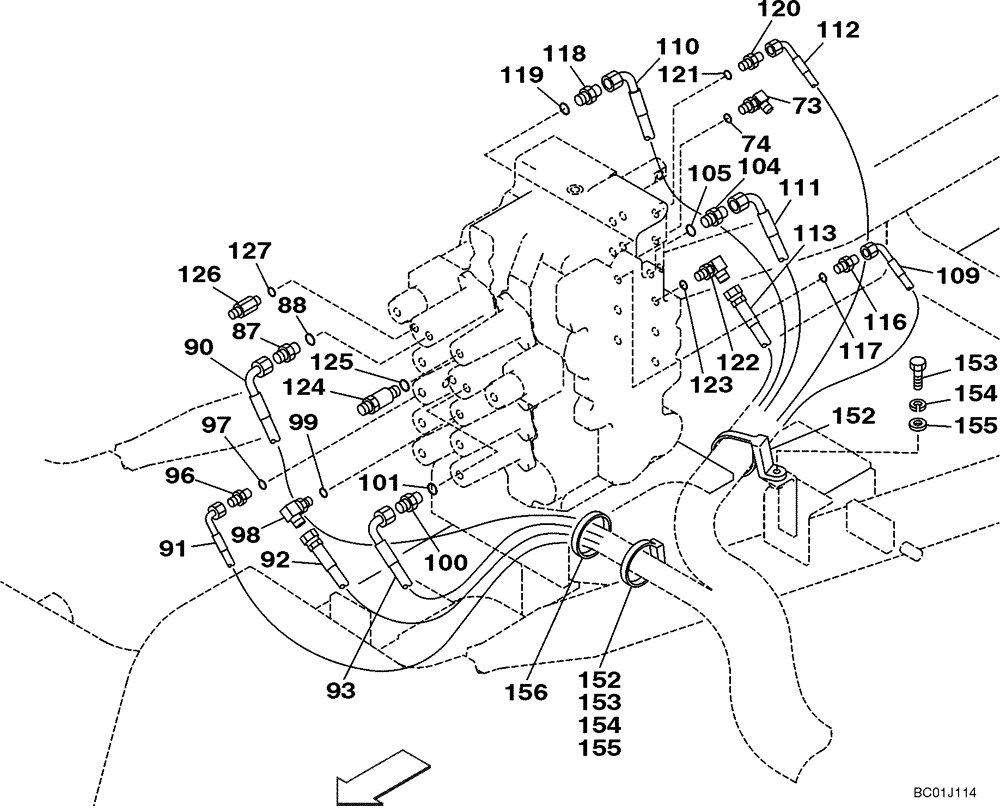

Запчасти Case CX290 (08-37) - HYDRAULICS - PILOT CONTROL LINES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
Control Valve
1шт.
Models With Load Hold
1шт.
73
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 74
1шт.
74
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
87
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 88
1шт.
88
154475A1
O-RING
1шт.
90
162565A1
HOSE ASSY.
1000 mm (39-3/8 in), See Figure 08-30
1шт.
91
KHJ1608
HOSE
See Figure 08-29
1шт.
92
159071A1
HOSE
See Figure 08-29
1шт.
93
159224A1
HOSE ASSY.
900 mm (35-1/2 in), See Figure 08-30
1шт.
96
159848A1
ORIFICE
Special, With Orifice, Incl. 97
1шт.
97
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
98
153559A1
ELBOW
Incl. 99
1шт.
99
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
100
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 101
1шт.
101
154475A1
O-RING
1шт.
104
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 105
1шт.
105
154475A1
O-RING
1шт.
109
161657A1
HOSE ASSY.
1600 mm (63 in), See Figure 08-29
1шт.
110
161492A1
HOSE
See Figure 08-30
1шт.
111
KHJ1606
HYDRAULIC HOSE
See Figure 08-30
1шт.
112
162648A1
HOSE
See Figure 08-30
1шт.
113
157963A1
HOSE
See Figure 08-29
1шт.
116
159848A1
ORIFICE
Incl. 117
1шт.
117
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
118
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 119
2шт.
119
154475A1
O-RING
1шт.
120
162366A1
ADAPTER
Incl. 121
1шт.
121
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
122
153559A1
ELBOW
Incl. 123
1шт.
123
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
124
163104A1
ADAPTER
Incl. 125
1шт.
125
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
126
162554A1
FITTING
Incl. 127
1шт.
127
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
152
KHR2582
CLAMP
2шт.
154
892-11010
LOCK WASHER,M10
2шт.
153
627-10030
BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd
2шт.
155
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
2шт.
156
150071A1
MOUNTING CLIP
1шт.
Выбрано товаров: 40
