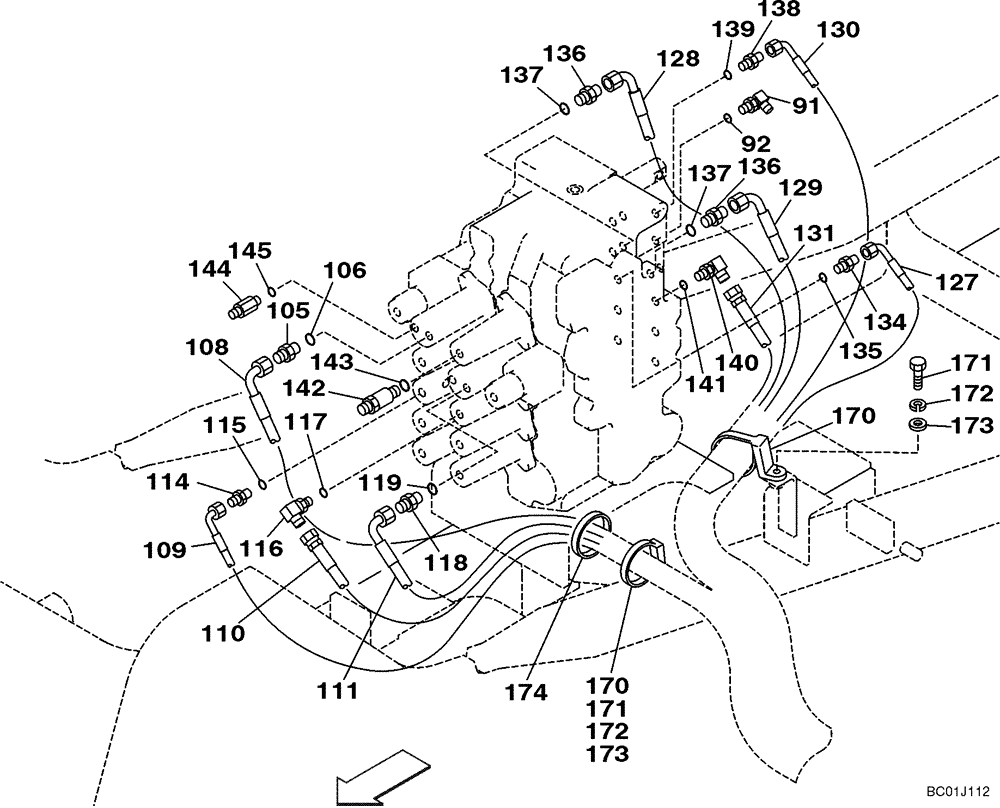

Запчасти Case CX290 (08-35) - HYDRAULICS - PILOT CONTROL LINES (08) - HYDRAULICS

Control Valve

1шт.

Models With Alternate Joystick Control Pattern

1шт.

91

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 92

1шт.

92

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

105

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 106

1шт.

106

154475A1

O-RING

1шт.

108

162565A1

HOSE ASSY.

1000 mm (39-3/8 in), See Figure 08-28

1шт.

109

KHJ1608

HOSE

See Figure 08-27

1шт.

110

159071A1

HOSE

See Figure 08-27

1шт.

111

159224A1

HOSE ASSY.

900 mm (35-1/2 in), See Figure 08-28

1шт.

114

159848A1

ORIFICE

Special, With Orifice, Incl. 115

1шт.

115

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

116

153559A1

ELBOW

Incl. 117

1шт.

117

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

118

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 119

1шт.

119

154475A1

O-RING

1шт.

127

161657A1

HOSE ASSY.

1600 mm (63 in), See Figure 08-27

1шт.

128

161492A1

HOSE

See Figure 08-28

1шт.

129

KHJ1606

HYDRAULIC HOSE

See Figure 08-28

1шт.

130

162648A1

HOSE

See Figure 08-28

1шт.

131

157963A1

HOSE

See Figure 08-27

1шт.

134

159848A1

ORIFICE

Incl. 135

1шт.

135

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

136

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 137

2шт.

137

154475A1

O-RING

1шт.

138

162366A1

ADAPTER

Incl. 139

1шт.

139

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

140

153559A1

ELBOW

Incl. 141

1шт.

141

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

142

163104A1

ADAPTER

Incl. 143

1шт.

143

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

144

162554A1

FITTING

Incl. 145

1шт.

145

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

170

KHR2582

CLAMP

2шт.

172

892-11010

LOCK WASHER,M10

2шт.

173

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

174

150071A1

MOUNTING CLIP

1шт.

171

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.
