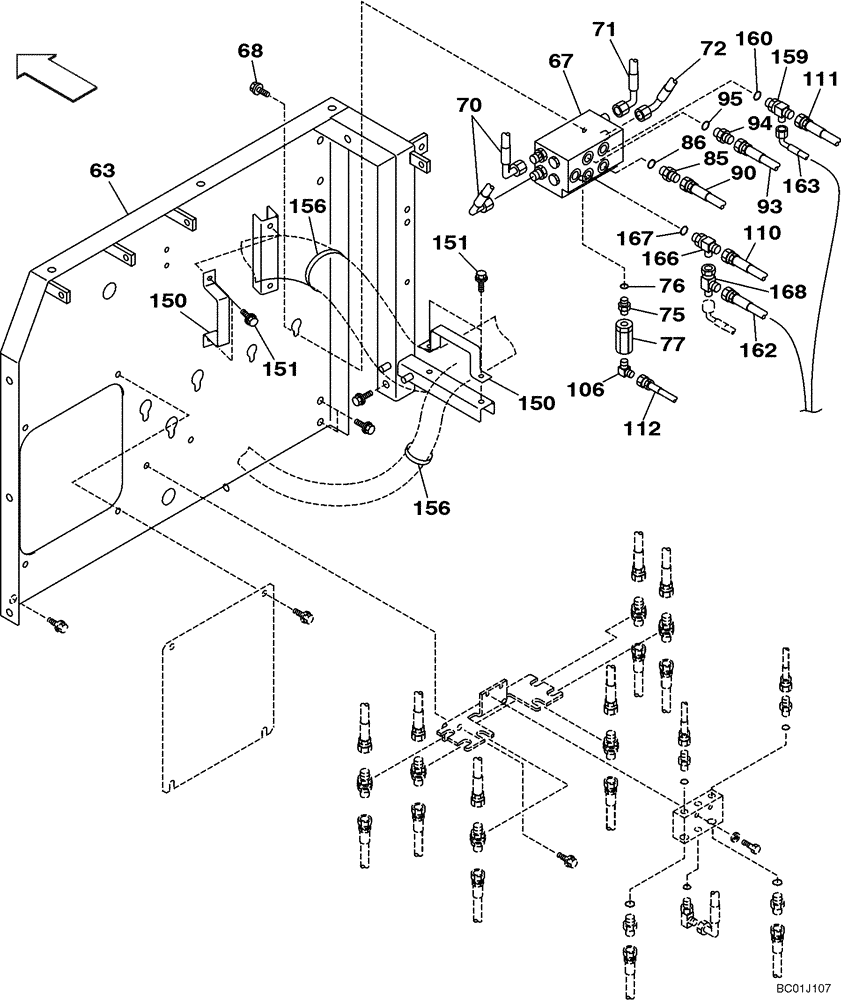

Запчасти Case CX290 (08-30) - HYDRAULICS - PILOT CONTROL LINES (08) - HYDRAULICS

Partition

1шт.

Models With Load Hold

1шт.

63

KRJ6275

SIDE PANEL

1шт.

67

KRJ6501

VALVE, CUSHION

See Figure 08-81

1шт.

68

166052A1

BOLT

With Attached Washer

2шт.

70

162835A1

HOSE ASSY.

See Figure 08-29

2шт.

71

KRJ3932

HOSE

See Figure 08-29

1шт.

72

KRJ3569

HOSE

See Figure 08-29

1шт.

75

152899A1

HYD CONNECTOR

Incl. 76

1шт.

76

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

77

151552A1

FILTER

1шт.

85

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 86

1шт.

86

154475A1

O-RING

1шт.

90

162565A1

HOSE ASSY.

1000 mm (39-3/8 in), See Figure 08-37

1шт.

93

159224A1

HOSE ASSY.

900 mm (35-1/2 in), See Figure 08-37

1шт.

94

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 95

1шт.

95

154475A1

O-RING

1шт.

106

153596A1

ADAPTER

1шт.

110

161492A1

HOSE

See Figure 08-37

1шт.

111

KHJ1606

HYDRAULIC HOSE

See Figure 08-37

1шт.

112

162648A1

HOSE

See Figure 08-37

1шт.

150

159036A1

CLAMP

2шт.

151

166350A1

BOLT

4шт.

156

150071A1

MOUNTING CLIP

2шт.

159

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

Incl. 160

1шт.

160

154475A1

O-RING

1шт.

162

KRJ4336

HYDRAULIC HOSE,9.50 mm ID x 2200.00 mm

See Figure 08-22

1шт.

163

KHJ2280

HYDRAULIC HOSE,12.70 mm ID x 2400.00 mm

See Figure 08-22

1шт.

166

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

Incl. 167

1шт.

167

154475A1

O-RING

1шт.

168

KHJ1897

TEE

1шт.
