Запчасти Case CX240LR (08-19) - PILOT CONTROL LINES, PARTITION (08) - HYDRAULICS

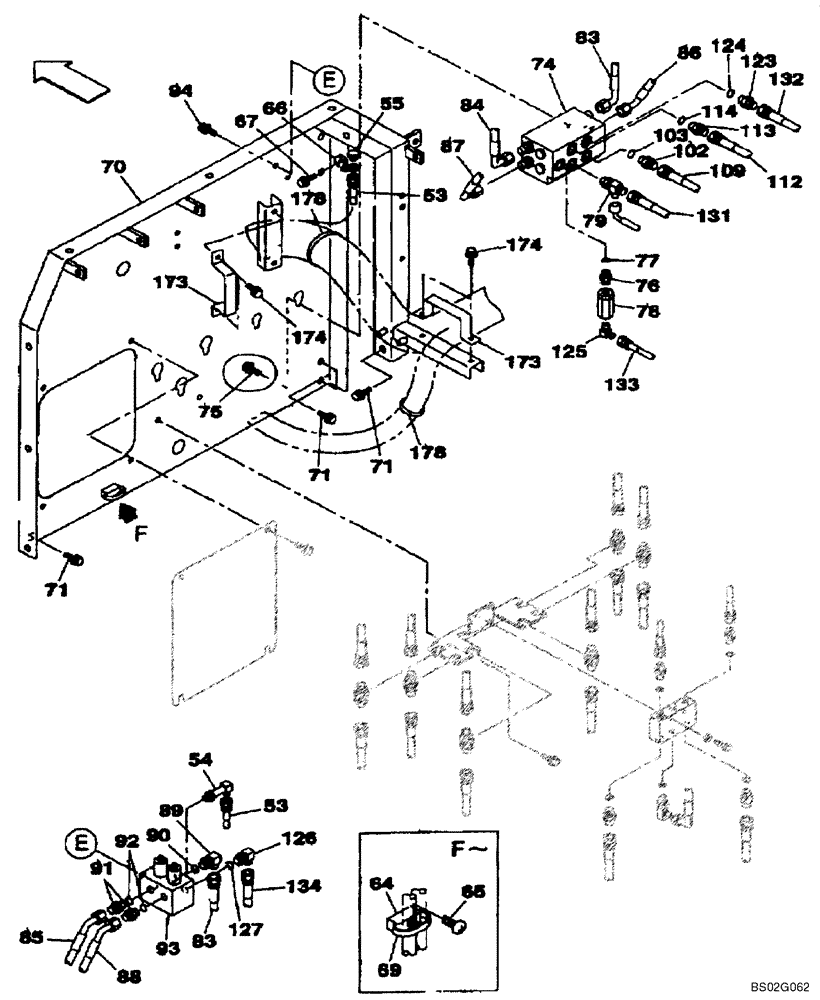

Схема запчастей Case CX240LR - (08-19) - PILOT CONTROL LINES, PARTITION (08) - HYDRAULICS
86
89
126
71
113
125
174
124
71
123
174
131
173
87
124
88
94
178
79
173
133
55
64
103
93
91
112
70
83
6
83
6
114
102
53
102
127
53
90
76
69
178
134
54
71
85
75
84
77
78
74
65
92

Артикул

Название

Примечание

Количество

53

151892A1

HOSE,6.3mm ID x 1950mm L

2шт.

54

KHJ1178

ELBOW

1шт.

55

169177A1

PLUG

1шт.

64

150860A1

COLLAR

1шт.

65

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

66

KHR2583

CLAMP

1шт.

67

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

69

150496A1

MOUNTING CLIP

1шт.

70

KRJ7117

SIDE PANEL

Replaces KRJ6275

1шт.

71

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

74

KRJ6501

VALVE, CUSHION

See Figure 08-43

1шт.

76

152899A1

HYD CONNECTOR

Incl. 77

1шт.

77

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

78

151552A1

FILTER

1шт.

79

163422A1

TEE

1шт.

83

166478A1

HYDRAULIC HOSE

1шт.

84

162835A1

HOSE ASSY.

See Figure 08-18

1шт.

85

KHJ1989

HOSE

See Figure 08-18

1шт.

86

KRJ3569

HOSE

See Figure 08-18

1шт.

87

162835A1

HOSE ASSY.

See Figure 08-18

1шт.

88

KHJ1989

HOSE

See Figure 08-18

1шт.

89

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 90

1шт.

90

154475A1

O-RING

1шт.

91

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 92

2шт.

92

154475A1

O-RING

1шт.

93

KRJ6506

VALVE SECTION

See Figure 08-44A

1шт.

94

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

102

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 103

1шт.

103

154475A1

O-RING

1шт.

109

162565A1

HOSE ASSY.

See Figure 08-22

1шт.

112

159224A1

HOSE ASSY.

See Figure 08-22

1шт.

113

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 114

1шт.

114

154475A1

O-RING

1шт.

123

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 124

1шт.

124

154475A1

O-RING

1шт.

125

153596A1

ADAPTER

1шт.

126

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 127

1шт.

127

154475A1

O-RING

1шт.

131

161492A1

HOSE

See Figure 08-22

1шт.

132

KHJ1606

HYDRAULIC HOSE

See Figure 08-22

1шт.

133

162648A1

HOSE

See Figure 08-22

1шт.

134

152753A1

HOSE,95.00 mm ID x 1100.00 mm

See Figure 08-22

1шт.

173

159036A1

CLAMP

2шт.

174

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

178

150071A1

MOUNTING CLIP

2шт.

Выбрано товаров: 47
