Запчасти Case CX240LR (08-15) - PILOT CONTROL LINES, TRAVEL - ALL MODELS (08) - HYDRAULICS

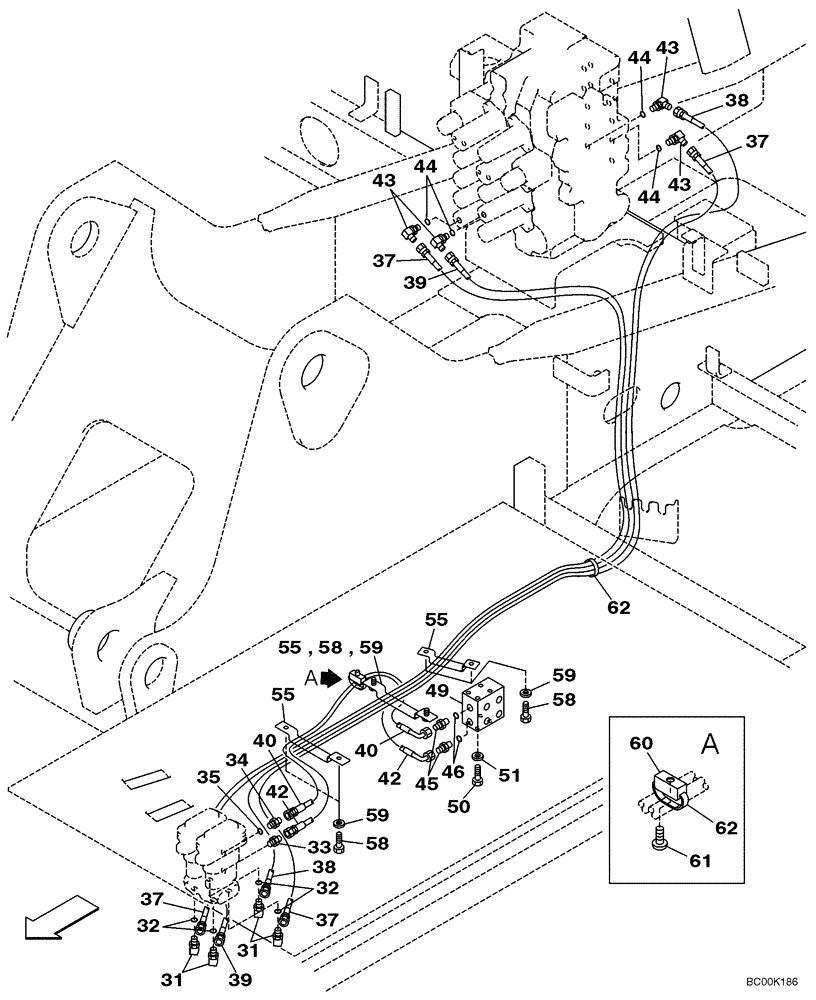

Схема запчастей Case CX240LR - (08-15) - PILOT CONTROL LINES, TRAVEL - ALL MODELS (08) - HYDRAULICS
34
51
32
59
42
58
58
39
43
32
55
55
59
60
33
37
59
37
50
39
62
40
40
37
31
44
44
55
37
43
61
44
43
45
46
35
38
38
62
42
31
49
58

Артикул

Название

Примечание

Количество

ALL MODELS

1шт.

31

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 32

4шт.

32

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

33

161841A1

HYD CONNECTOR

1шт.

34

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 35

1шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

37

157851A1

HOSE

2850 mm (112-1/4 in)

2шт.

38

152299A1

HOSE,63.00 mm ID x 2950.00 mm

1шт.

39

157203A1

HOSE,2800.00 mm

2800 mm (110-1/4 in)

1шт.

40

159019A1

HOSE ASSY.

900 mm (35-1/2 in)

1шт.

42

KAJ3524

HYDRAULIC HOSE

1шт.

43

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 44

4шт.

44

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

45

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 46

2шт.

46

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

49

KRJ5903

MANIFOLD

1шт.

50

828-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

4шт.

51

153081A1

WASHER

4шт.

59

KHJ1951

CLAMP

Replaces KHJ1394

3шт.

62

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

6шт.

63

153081A1

WASHER

6шт.

64

150860A1

COLLAR

1шт.

65

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

68

150071A1

MOUNTING CLIP

2шт.

177

150496A1

MOUNTING CLIP

1шт.

Выбрано товаров: 25
