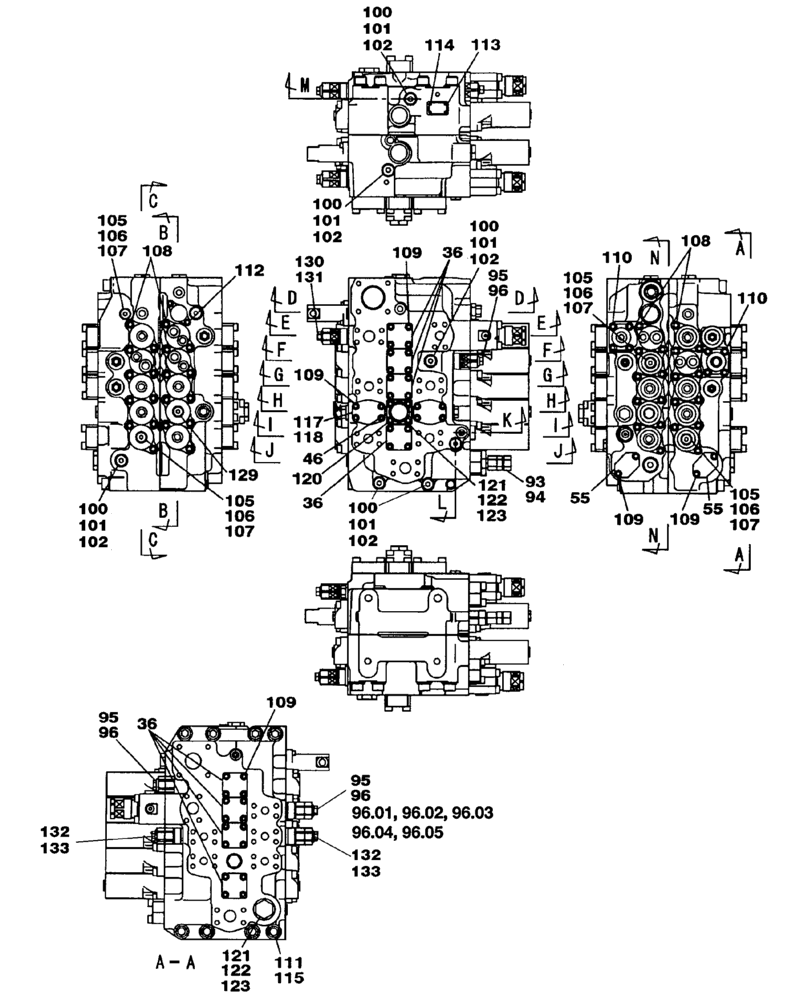

Запчасти Case CX240LR (08-101) - CONTROL VALVE, COMPONENTS (08) - HYDRAULICS

KBJ2938

VALVE, CONTROL

1шт.

Consists Of Ref. Numbers 1-133, See Page(s) 08-102 To 08-105

1шт.

36

LH00248

CAP

8шт.

46

LH00249

CAP

1шт.

55

LH00250

CAP

2шт.

93

LJ00742

VALVE, PRESSURE RELI

EF

1шт.

Consists Of Ref. Number 94

1шт.

94

155223A1

O-RING

1шт.

95

LJ00734

HYDRAULIC VALVE

3шт.

Consists Of Ref. Number 96

1шт.

96

155223A1

O-RING

2шт.

96.01

154463A1

O-RING

1шт.

96.02

164905A1

BACK-UP RING

2шт.

96.03

164906A1

O-RING

1шт.

96.04

163323A1

O-RING

1шт.

96.05

164575A1

BACK-UP RING

2шт.

100

163369A1

PLUG

6шт.

Consists Of Ref. Numbers 101, 102

1шт.

101

NSS

NOT SOLD SEPARAT

Plug

1шт.

102

154475A1

O-RING

1шт.

105

163972A1

PLUG

4шт.

Consists Of Ref. Numbers 106, 107

1шт.

106

NSS

NOT SOLD SEPARAT

Plug

1шт.

107

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

108

160287A1

BOLT,Hex Skt

40шт.

109

108R010Z040B

BOLT

M10 x 40; 12.9

44шт.

110

108R010Z070B

BOLT

M10 x 70; 12.9

8шт.

111

108R016Z130B

BOLT

M16 x 130; 12.9

8шт.

112

LUC0118

BOLT,Hex Skt Hd

2шт.

113

NSS

NOT SOLD SEPARAT

Plate

1шт.

114

NSS

NOT SOLD SEPARAT

Rivet

4шт.

115

156170A1

WASHER

8шт.

117

LR00579

PLUG

2шт.

118

168198A1

O-RING

2шт.

120

108R010Z055B

BOLT

M10 x 55; 12.9

4шт.

121

LK00302

PLUG

1шт.

Consists Of Ref. Numbers 122, 123

1шт.

122

165836A1

PLUG

1шт.

123

154503A1

O-RING

1шт.

129

155447A1

PLUG

1шт.

130

LJ01193

VALVE, PRESSURE RELI

EF

1шт.

Consists Of Ref. Number 131

1шт.

131

155223A1

O-RING

1шт.

131a

154463A1

O-RING

1шт.

Not Illustraded

1шт.

132

LJ01194

VALVE, PRESSURE RELI

EF

2шт.

Consists Of Ref. Number 133

1шт.

133

155223A1

O-RING

1шт.

133a

154463A1

O-RING

1шт.

Not Illustraded

1шт.
