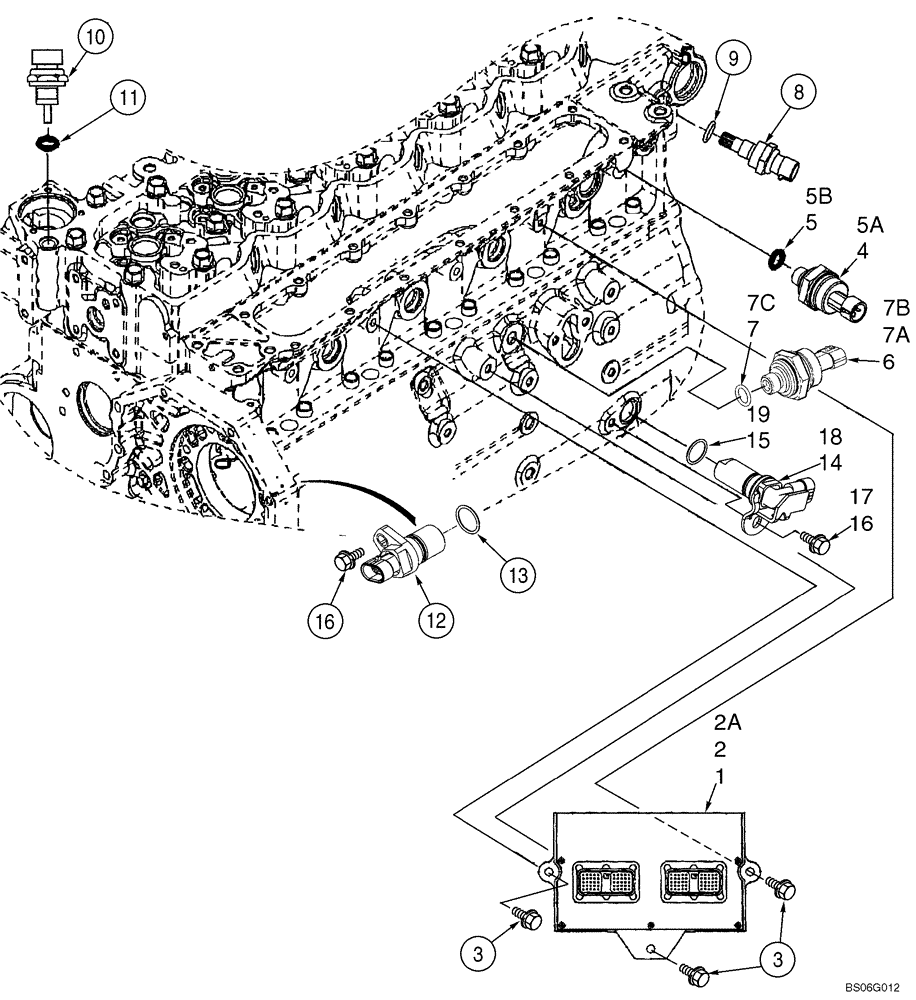

Запчасти Case CX240LR (04-03) - MODULE, ENGINE CONTROL (Jul 21 2010 9:02AM) (04) - ELECTRICAL SYSTEMS

0

6TAA-5904 EMISSIONS CERTIFIED ENGINE

1шт.

JR944124

REMAN-ELECT MONITOR

REMAN-MONITOR N.A. Only; No Longer Available

1шт.

JC944124

CORE-MONITOR

1шт.

1

J944124

CONTROL

Electronic Control, Incl. 2; No Longer Available, Order 87404590

1шт.

87403972R

REMAN ELECT CONTROL

CX210, CX240, CX210LR, CX240LR, Reman for new PN J944124

1шт.

87403972C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

403798A1

CONTROL

Calibrated

1шт.

2a

87404590

MODULE

Calibrated Engine, THIS IS A PRE-PROGRAMMED ENGINE CONTROL MODULE. WHEN STOCK IS EXHAUSTED YOU WILL HAVE TO ORDER 87403972 PROGRAMMABLE ENGINE CONTROL MODULE AND GET IT PROGRAMMED FOR YOU

1шт.

2b

87403972

ECU

UNPROGRAMMED CONTROL module and program it for the unit.

1шт.

87403972R

REMAN ELECT CONTROL

CX240, CX240LR

1шт.

87403972C

CORE-ELECTRONIC CONT

Return Number

1шт.

3

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.

4

J348747

SENSOR

Manifold Air Pressure; Also Known As Turbo Boost Pressure Switch; Incl. 5; No Longer Available, For Service Order Ref 5A, 87559412 Sensor

1шт.

5

J330202

O-RING,11.3MM ID x 2.2 Thk

1шт.

5a

87559412

SENSOR

Manifold Air Pressure, Incl. 5B

1шт.

5b

87536785

O-RING,0.087" Thk x 0.445" ID

1шт.

6

NSS

NOT SOLD SEPARAT

Oil Pressure, Incl. 7, Replaces J408428; No Longer Used, Order Ref 7A, J4088228

1шт.

7

J330202

O-RING,11.3MM ID x 2.2 Thk

1шт.

7a

J4088228

SENSOR

Oil Pressure, Incl. 7; No Longer Available, Order Ref 7B, 87566186

1шт.

7b

87566186

SENSOR

Incl. 7C

1шт.

7c

87385019

O-RING,11.3mm ID x 2.2mm Width

1шт.

8

J408345

SENSOR

Manifold Air Temperature, Incl. 9

1шт.

9

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

10

J865346

SENSOR

Coolant Temperature, Incl. 11

1шт.

11

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

12

87382544

SENSOR

Position And Speed, Incl. 13; Replaces J4002064, 87405627

1шт.

13

87405641

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

Replaces J330478

1шт.

14

J4002066

SENSOR

Position, Incl. 15; No Longer Available, For Service Order Ref 18, 87375189 Sensor

1шт.

15

J330478

O-RING,0.07" Thk x 0.676" ID

1шт.

16

J918108

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

1-2шт.

17

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

1шт.

18

87375189

SENSOR

Position, Incl. 19

1шт.

19

87405641

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

1шт.
