Запчасти Case CX240LR (03-03) - FUEL INJECTION SYSTEM (Apr 30 2012 9:30AM) (03) - FUEL SYSTEM

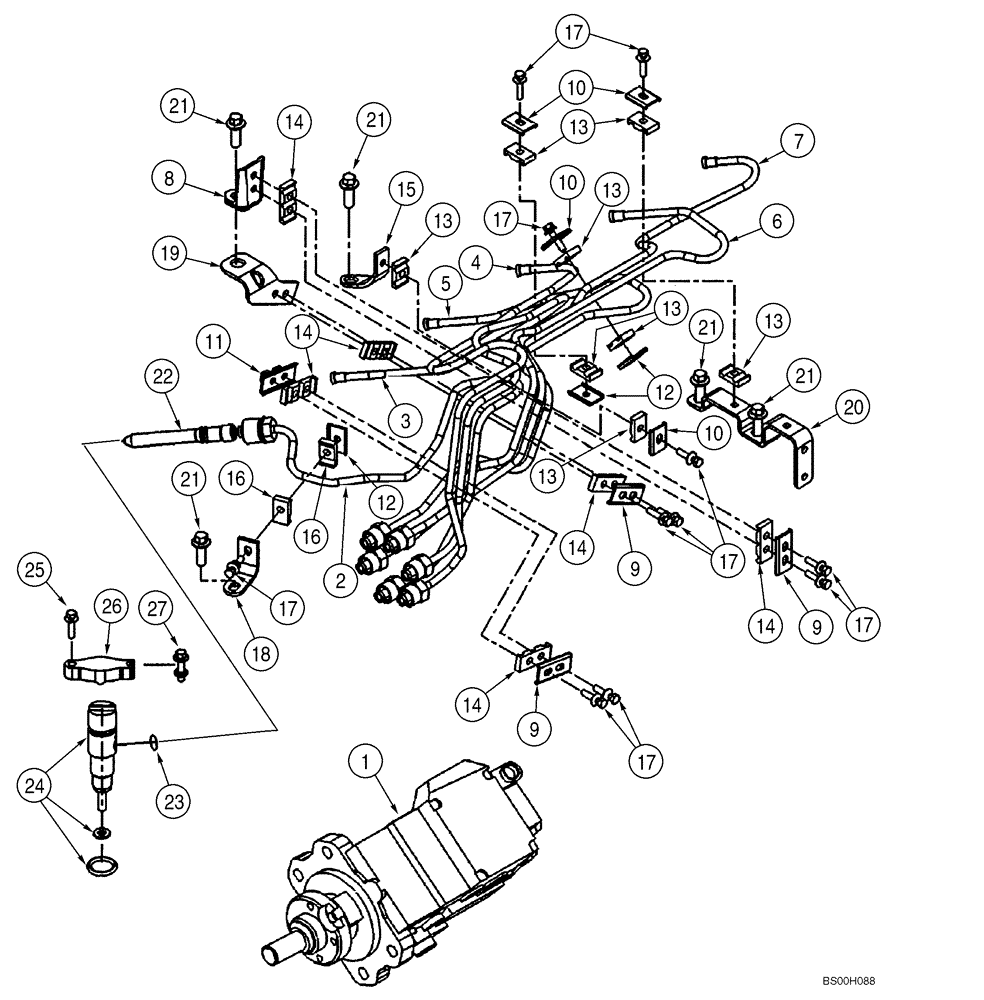

Схема запчастей Case CX240LR - (03-03) - FUEL INJECTION SYSTEM (Apr 30 2012 9:30AM) (03) - FUEL SYSTEM
17
15
17
14
7
13
14
21
9
27
14
10
22
4
6
25
17
19
9
5
13
2
21
24
8
16
16
21
23
14
9
13
14
17
20
26
1
17
12
13
17
10
13
10
13
3
18
21
12
21
11

Артикул

Название

Примечание

Количество

-

6TAA-5904 EMISSIONS CERTIFIED ENGINE

1шт.

1

J937690

PUMP, FUEL INJECTION

PUMP, INJECTION See Figure 03-06; Replaces J944536

1шт.

2

J943765

INJECTION PIPE

# 1 Cylinder

1шт.

3

J943767

INJECTION PIPE

# 2 Cylinder

1шт.

4

J943771

INJECTION PIPE

# 4 Cylinder

1шт.

5

J943769

INJECTION PIPE

# 3 Cylinder

1шт.

6

J943773

INJECTION PIPE

# 5 Cylinder

1шт.

7

J943775

INJECTION PIPE

# 6 Cylinder

1шт.

8

J282942

BRACKET

1шт.

9

J904519

SUPPORT

3шт.

10

CURJ904711

CLAMP

4шт.

11

J917716

BRACE

1шт.

12

J917717

BRACE

3шт.

13

J917746

CLAMP

8шт.

14

J917747

CLAMP

6шт.

15

J930689

SUPPORT

1шт.

16

J919359

CLAMP

2шт.

17

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

11шт.

18

J942758

BRACE

1шт.

19

J942372

BRACE

1шт.

20

J946440

BRACE

1шт.

21

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

5шт.

22

J944833

FUEL TUBE

6шт.

23

J867043

SEAL,1.78mm Thk x 10.82mm ID

1шт.

24

J944200

FUEL SYSTEM INJECTOR

See Figure 03-08

6шт.

24

JR944200

REMAN-FUEL INJECTOR

REMANUFACTURED INJECTOR

6шт.

24

JC944200

CORE-FUEL INJECTOR

Return Number, INJECTOR

6шт.

25

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

6шт.

26

J940639

CLAMP

6шт.

27

J940817

SCREW,Hex Flg, M6 x 1 x 25mm

6шт.

Выбрано товаров: 30
