Запчасти Case CX240LR (02-14) - CYLINDER HEAD - MOUNTING, ALTERNATOR (02) - ENGINE

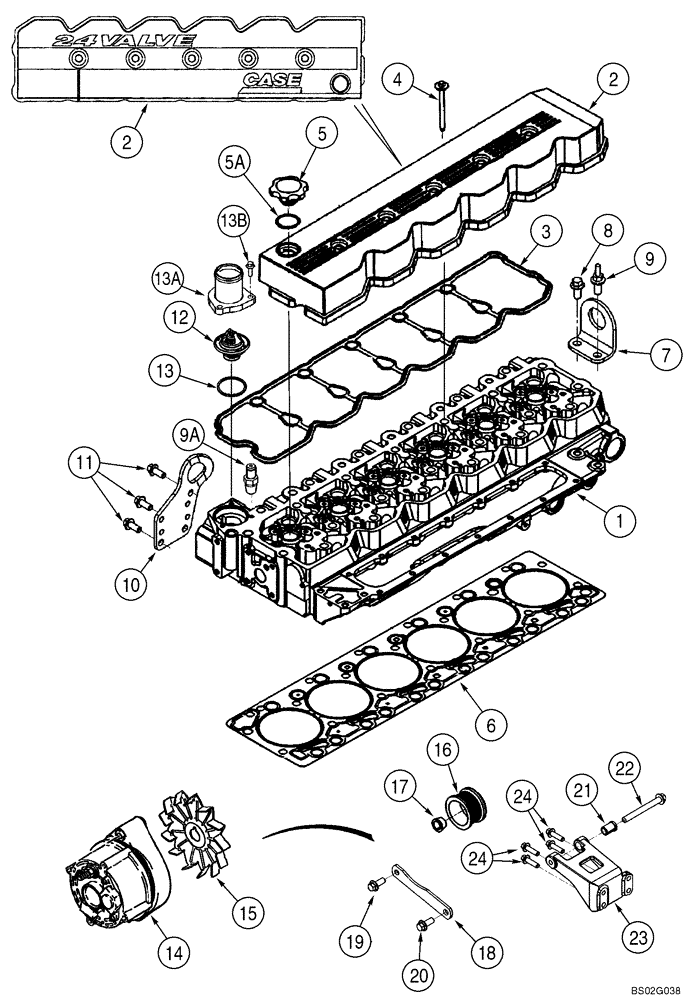

Схема запчастей Case CX240LR - (02-14) - CYLINDER HEAD - MOUNTING, ALTERNATOR (02) - ENGINE
1
22
14
7
24
5a
6
10
13a
19
4
13b
9a
15
3
20
23
2
18
13
5
2
11
24
16
17
12
9
8
21

Артикул

Название

Примечание

Количество

6TAA-5904 EMISSIONS CERTIFIED ENGINE

1шт.

1

87417121

CYLINDER HEAD

See Figure 02-15; Replaces J957403

1шт.

2

87417077

COVER

Replaces J938692, J938044

1шт.

3

J935878

GASKET,10.34mm Thk

1шт.

4

J946168

SCREW,Hex Skt, M8 x 1.25 x 95.28mm

5шт.

4a

J942659

ISOLATOR

Not Illustrated

5шт.

5

J901895

CAP

1шт.

5

84338002

FILLER CAP

Cummin's pn 3973511

1шт.

5a

238-5123

O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro

1шт.

6

J945803

CYLINDER HEAD GASKET

1шт.

7

J940288

BRACKET

1шт.

8

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

1шт.

9

J944061

SCREW,Hex Flg, M12 x 1.75 x 25mm, Cl 10.9

1шт.

9a

J943670

FITTING

Vent

1шт.

MOUNTING, ALTERNATOR

1шт.

10

J943215

BRACKET

1шт.

11

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

3шт.

87423066

THERMOSTAT

Incl. 12, 13; Replaces J954194

1шт.

12

NSS

NOT SOLD SEPARAT

Thermostat

1шт.

13

87423072

SEAL

Replaces J942454

1шт.

13a

J943300

PIPE ASSY.

Water Outlet

1шт.

13b

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

3шт.

14

A187916

ALTERNATOR,24V, 45A

See Figure 04-02

1шт.

15

221425R1

FAN

1шт.

16

J908560

PULLEY

Ref 17 Retainer Not Requred With Replacement Pulley 84538542

1шт.

17

J908563

RETAINER

Not Used With Replacement Pulley 84538542

1шт.

18

J943863

BRACE

1шт.

19

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.

20

845-10025

SPECIAL BOLT

M10 x 25

1шт.

21

87448092

SPACER

Replaces J910715

1шт.

22

J908226

FLANGE BOLT,Hex, M10 x 1.5 x 95mm

M10 x 95

1шт.

23

87449352

SUPPORT

Replaces J943301

1шт.

24

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

4шт.

Выбрано товаров: 33
