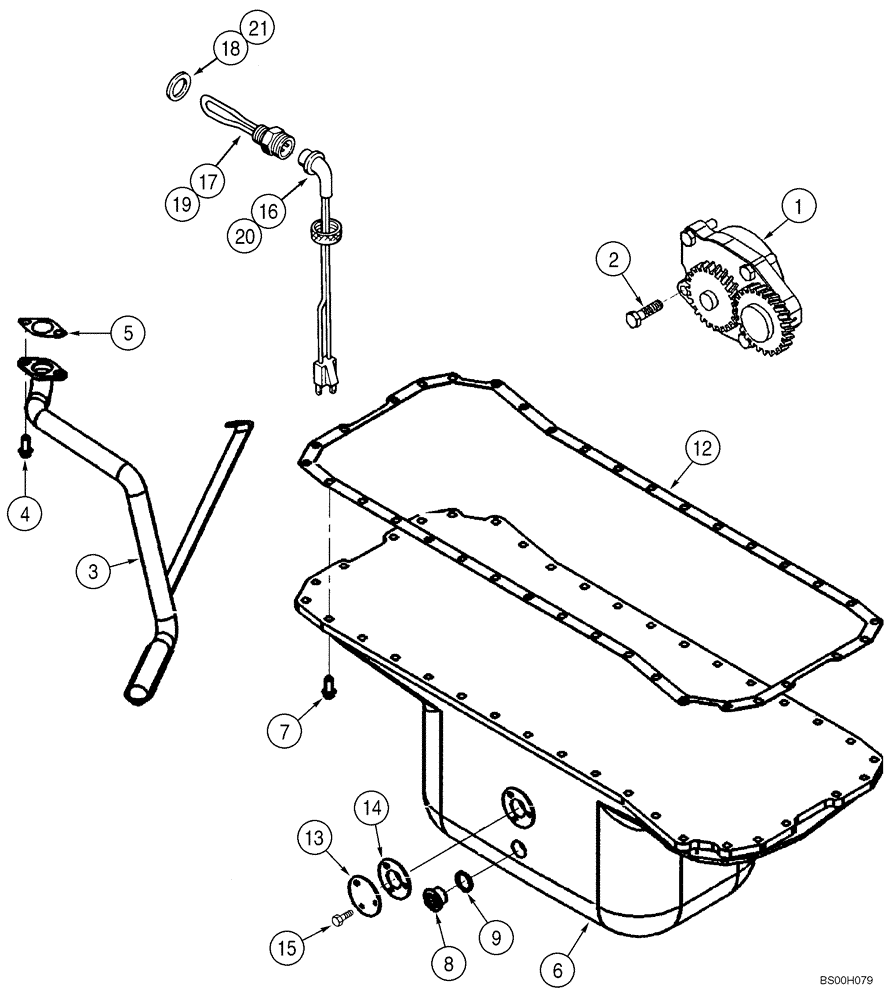

Запчасти Case CX240LR (02-13) - OIL PUMP, PAN - HEATER (02) - ENGINE

6TAA-5904 EMISSIONS CERTIFIED ENGINE

1шт.

1

J937404

PUMP, ENGINE OIL

1шт.

JR937404

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactred Oil Pump; For N. A Only

1шт.

JC937404

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

J900677

BOLT,Hex

M8 x 30

4шт.

3

87448827

SUCTION PIPE

Replaces J863105

1шт.

4

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.

5

J938157

GASKET,1.2mm Thk

1шт.

6

J863104

PAN, ENGINE OIL

PAN, OIL

1шт.

7

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

M8 x 25

36шт.

8

J924148

PLUG,M22 x 1.5

M22

2шт.

9

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

2шт.

12

NSS

NOT SOLD SEPARAT

Gasket, Mounting

1шт.

13

J932513

PLATE

1шт.

14

87413429

GASKET

Replaces J932512

1шт.

15

97010C1

BOLT,Hex, M6 x 12mm, Cl 8.8

M6 x 12

3шт.

A77979

GASKET KIT

Incl. 5, 9, 12, J920773

1шт.

ENGINE OIL HEATER

1шт.

A77490

KIT

120V; Incl. 16, 17

1шт.

16

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.

17

NSS

NOT SOLD SEPARAT

Element

1шт.

18

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

19

J285916

HEATER

240V

1шт.

20

J905114

ELECTRIC CABLE

1829 mm (72 in)

1шт.

21

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.
