6TAA-5904 EMISSIONS CERTIFIED ENGINE
1шт.
1
A77998
TURBOCHARGER

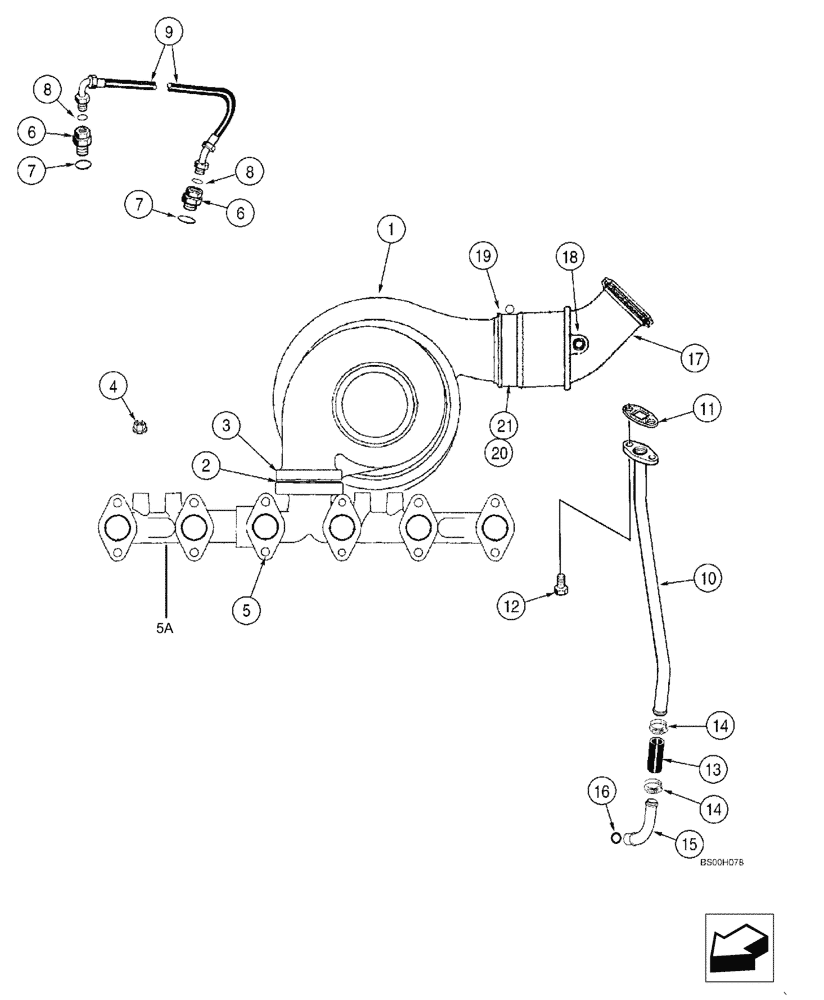

See Figure 02-11
1шт.
1
AR77998
REMAN-TURBOCHARGER
Remanufactured Turbocharger
1шт.
1
AC77998
CORE-TURBOCHARGER
Return Number
1шт.
2
J919369
GASKET,0.5mm Thk
1шт.
3
J818823
STUD
4шт.
4
J818824
FLANGE NUT
M10
4шт.
5
87452256
EXHAUST MANIFOLD
Replaces J945189
1шт.
5a
87747959
EXHAUST MANIFOLD
Replaces J943871
1шт.
J922789
HYD CONNECTOR
Incl. 6 - 8
2шт.
6
NSS
NOT SOLD SEPARAT
Adapter
1шт.
7
J678603
O-RING,2.2mm Thk x 9.3mm ID
1шт.
8
313262A1
O-RING,0.07" Thk x 0.364" ID
(M9.2 ID x 1.7 Thk)
1шт.
9
J930840
HOSE
475 mm (18-3/4 in)
1шт.
10
J945191
TUBE
1шт.
11
J937706
GASKET,0.79mm Thk
1шт.
12
J907860
FLANGE BOLT,Hex, M8 x 25mm, Spcl
2шт.
13
J286499
HOSE
76 mm (3 in); Replaces J931970
1шт.
14
214-1512
HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm, W/ Liner
Replaces 214-1410
2шт.
15
J931973
TUBE,0.875" OD
1шт.
16
238-7018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro
1шт.
17
J918350
PIPE ASSY.
Air Transfer
1шт.
18
86637724
PLUG,1/8" - 27 NPT
1шт.
19
J883284
O-RING,0.07" Thk x 2.364" ID, -36
1шт.
20
J069053
CLAMP,66.54mm ID
1шт.
21
231-1444
NUT,1/4"-20, GB
1шт.
22
A170467
CLAMP,72mm ID
Not Illustrated
1шт.
