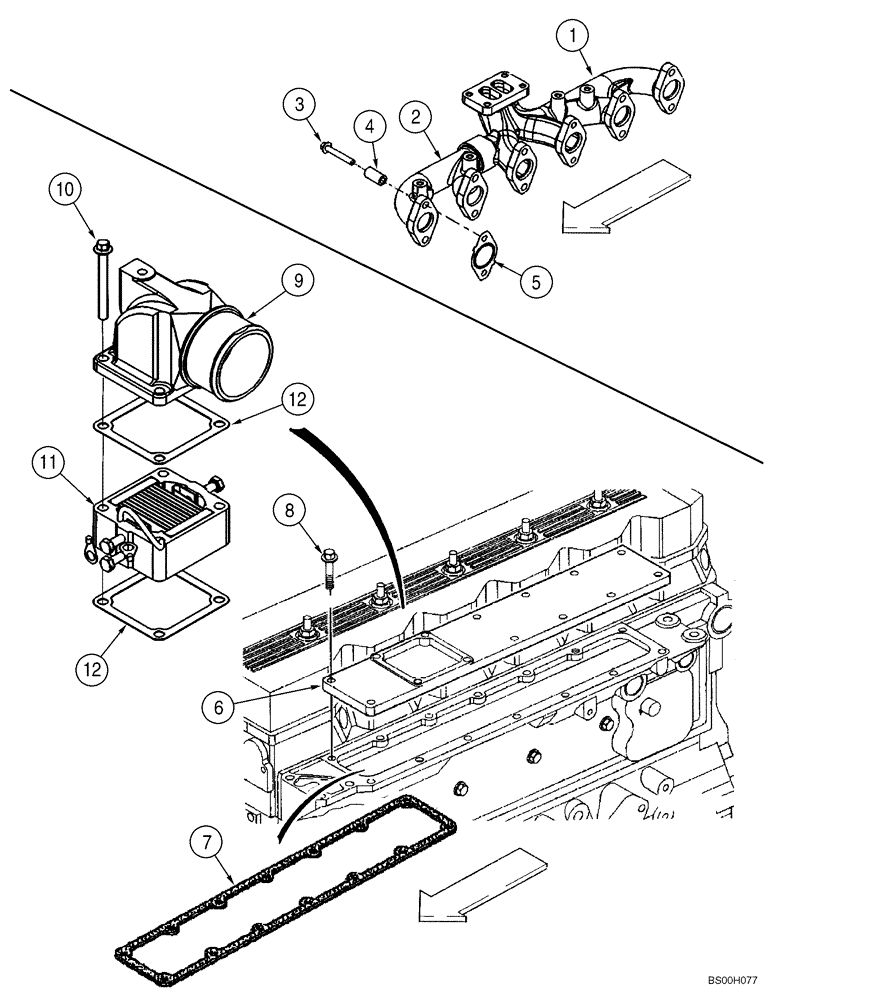

Запчасти Case CX240LR (02-09) - MANIFOLDS - EXHAUST AND INTAKE (02) - ENGINE

6TAA-5904 EMISSIONS CERTIFIED ENGINE

1шт.

EXHAUST

1шт.

1

87452256

EXHAUST MANIFOLD

Replaces J945189

1шт.

2

87747959

EXHAUST MANIFOLD

Replaces J943871

1шт.

3

J944593

BOLT

M8 x 165

12шт.

4

J945252

SPACER

12шт.

5

86991870

MANIFOLD GASKET

Replaces J946275

6шт.

INTAKE

1шт.

6

J941437

COVER

Intake

1шт.

7

J938152

MANIFOLD GASKET

1шт.

8

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

3шт.

9

J921836

PIPE ASSY.

1шт.

10

J919864

BOLT

M8 x 80

4шт.

11

J939914

UNIT HEATER

Replaces J929015

1шт.

12

87445995

GASKET

Replaces J938158

2шт.

13

J927335

TAG

Not Illustrated

1шт.
