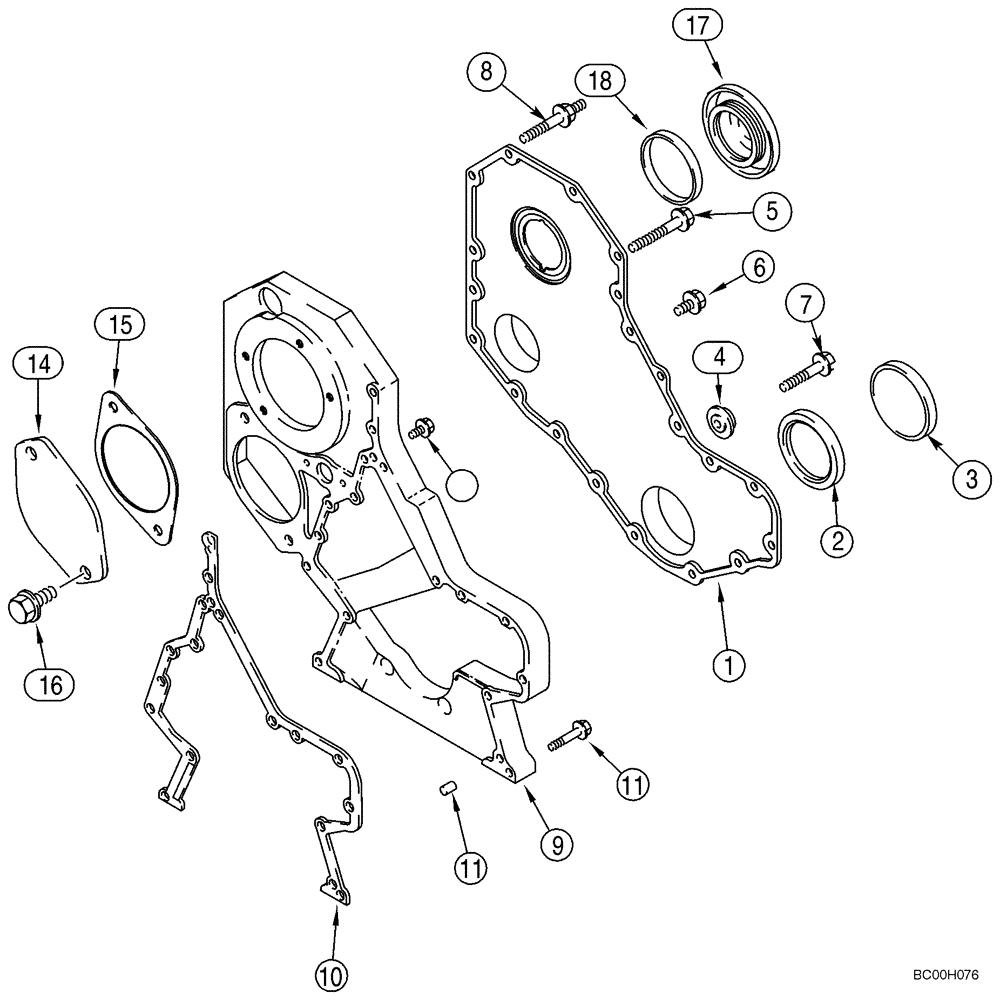

Запчасти Case CX240LR (02-08) - FRONT GEAR COVER (02) - ENGINE

6TAA-5904 EMISSIONS CERTIFIED ENGINE

1шт.

For Engines equipped with Breather Kit 87415708 use Instruction Sheet 6-49400 for parts breakdown. Service Bulletin is NENSB00104.

1шт.

1

J941910

COVER

1шт.

2

NSS

NOT SOLD SEPARAT

Seal; Order A77889; See Figure 02-18, REF 14

1шт.

3

J933261

SHIELD

Dust

1шт.

4

J912772

RETAINER

1шт.

5

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

7шт.

6

J924962

FLANGE BOLT

M8 x 16

7шт.

7

87421315

FLANGE BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

M8 x 65; 10.9, Replaces 845-8065

1шт.

8

J944816

SCREW,Hex Flg, M8 x 1.25 x 50mm, Cl 8.8

M8 x 50

5шт.

9

87497504

HOUSING

Replaces J943380

1шт.

10

J938156

GASKET,0.79mm Thk

1шт.

11

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

2шт.

12

J926846

FLANGE BOLT

M8 x 20

5шт.

13

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

14

A77440

PLATE

1шт.

15

J938655

GASKET,1.27mm Thk

Replaces J929751

1шт.

16

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

2шт.

17

J903463

PLUG,M63 x 5

1шт.

17

87415708

KIT

New Style Breather (added by S/B NENSB00104)

1шт.

18

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

ZPX82194

SPECIAL MAT. SEAL

3 oz; Used With J941910, REF 1; Replaces J823494 and 87307915

1шт.
