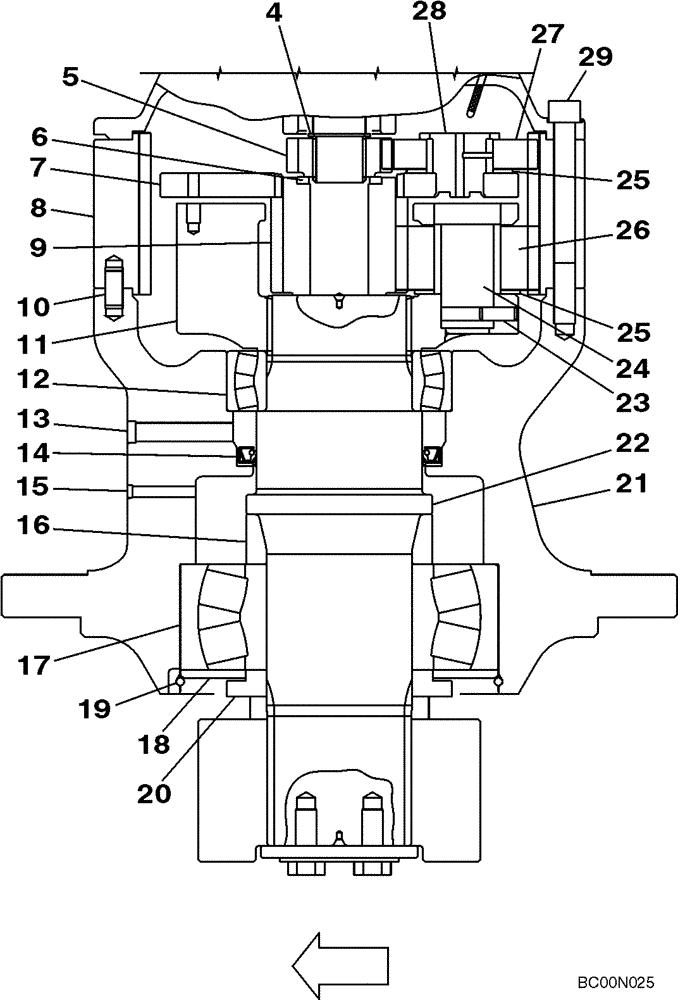

Запчасти Case CX240LR (08-38) - KBC0127 GEAR ASSY, REDUCTION - MOTOR, SWING (08) - HYDRAULICS

KBC0127

REDUCER

Incl. 4 - 29; Replaces KBC0110

1шт.

4

800-1140

SNAP RING,M40, Ext

1шт.

5

KBC0089

SUN GEAR

1шт.

6

KRC0154

PLATE

Thrust

1шт.

7

KBC0092

SUPPORT

1шт.

8

KBC0091

GEAR, RING

RING, GEAR

1шт.

9

KRC0148

GEAR

1шт.

10

KRC0155

PIN

4шт.

11

KBC0096

SUPPORT

1шт.

12

KBC0100

BEARING, ROLLER,110mm ID x 170mm OD x 45mm W

1шт.

13

150824A1

PLUG

1шт.

14

KBC0102

OIL SEAL

1шт.

15

158352A1

PLUG

2шт.

16

KBC0104

SPACER

1шт.

17

KBC0101

BEARING, ROLLER,110mm ID x 240mm OD x 80mm W

1шт.

18

KBC0103

BEARING COVER

Bearing

1шт.

19

KBC0106

RETAINING WIRE

1шт.

20

KBC0105

SPACER

1шт.

21

KBC0098

HOUSING

Gear

1шт.

22

KBC0099

GEAR SHAFT

1шт.

23

838-51028

LOCK PIN,M10 x 28, Slotted

4шт.

24

KBC0097

PIN

4шт.

25

KBC0094

PLATE

7шт.

26

KBC0095

GEAR, PLANETARY

GEAR, PLANET

4шт.

27

KBC0090

GEAR, PLANETARY

GEAR, PLANET

3шт.

28

KBC0093

PIN

3шт.

29

863-16150

HEX SOC SCREW,M16 x 150mm, Cl 12.9

16шт.

29

108R016Y150N

BOLT

16шт.
