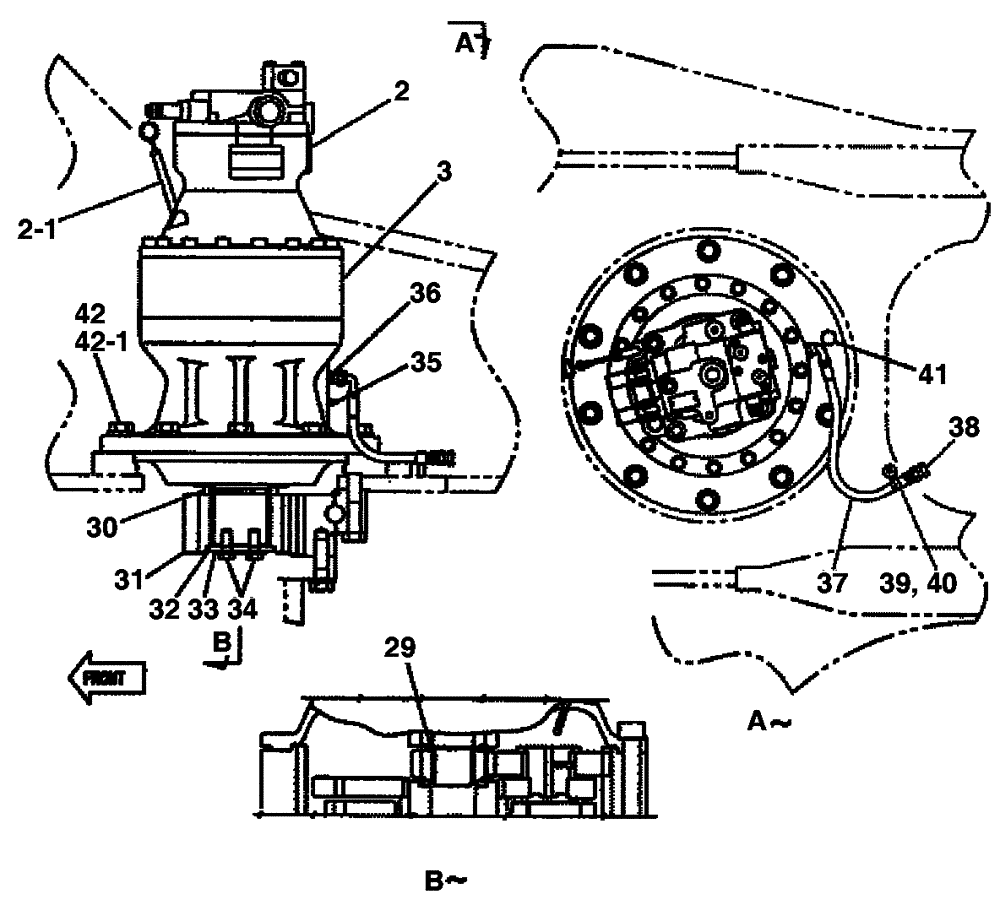

Запчасти Case CX240LR (08-35[00]) - MOUNTING - SWING MOTOR (08) - HYDRAULICS

KBC0119

MOTO-REDUCTION GEAR

1шт.

Consists Of Ref. Numbers 2 To 3

1шт.

2

KBC0118

MOTOR, HYDRAULIC

1шт.

Consists Of Ref. Number 2.1

1шт.

2.1

KBC0115

DIPSTICK

Oil

1шт.

3

KBC0127

REDUCER

1шт.

See Page(s) 06-011-00-01

1шт.

Serial Number : CX240 LR DCH24B0101 To DCH24B0336

1шт.

3

KBC0133

REDUCER

1шт.

See Page(s) 06-011-00-02

1шт.

Serial Number : CX240 LR DCH24B0337 To DCH24B0379

1шт.

3

KBC0157

REDUCER

1шт.

Serial Number : CX240 LR DCH24B0380 And After

1шт.

See Page(s) 06-011-00-03

1шт.

29

800-1140

SNAP RING,M40, Ext

1шт.

Serial Number : CX240 LR DCH24B0102 And After

1шт.

30

158953A1

SPACER

1шт.

31

158952A1

PINION

1шт.

32

158954A1

PLATE, LOCKING

1шт.

33

150002A1

LOCKING PLATE

1шт.

34

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

35

153630A1

LUBE NIPPLE

1шт.

36

153597A1

ADAPTER

1шт.

37

KHJ1193

HYDRAULIC HOSE,9.52 mm ID x 450.00 mm

1шт.

38

KHP0501

PLUG

1шт.

39

KHR2583

CLAMP

1шт.

40

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

41

158955A1

HEADED PIN

1шт.

42

827-24080

BOLT,Hex, M24 x 3 x 80mm, Cl 10.9

9шт.

Consists Of Ref. Number 42.1

1шт.

42.1

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

(26 ID x 44 x 5 mm)

9шт.
