Запчасти Case CX240LR (08-26) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (Mar 2 2011 9:20AM) (08) - HYDRAULICS

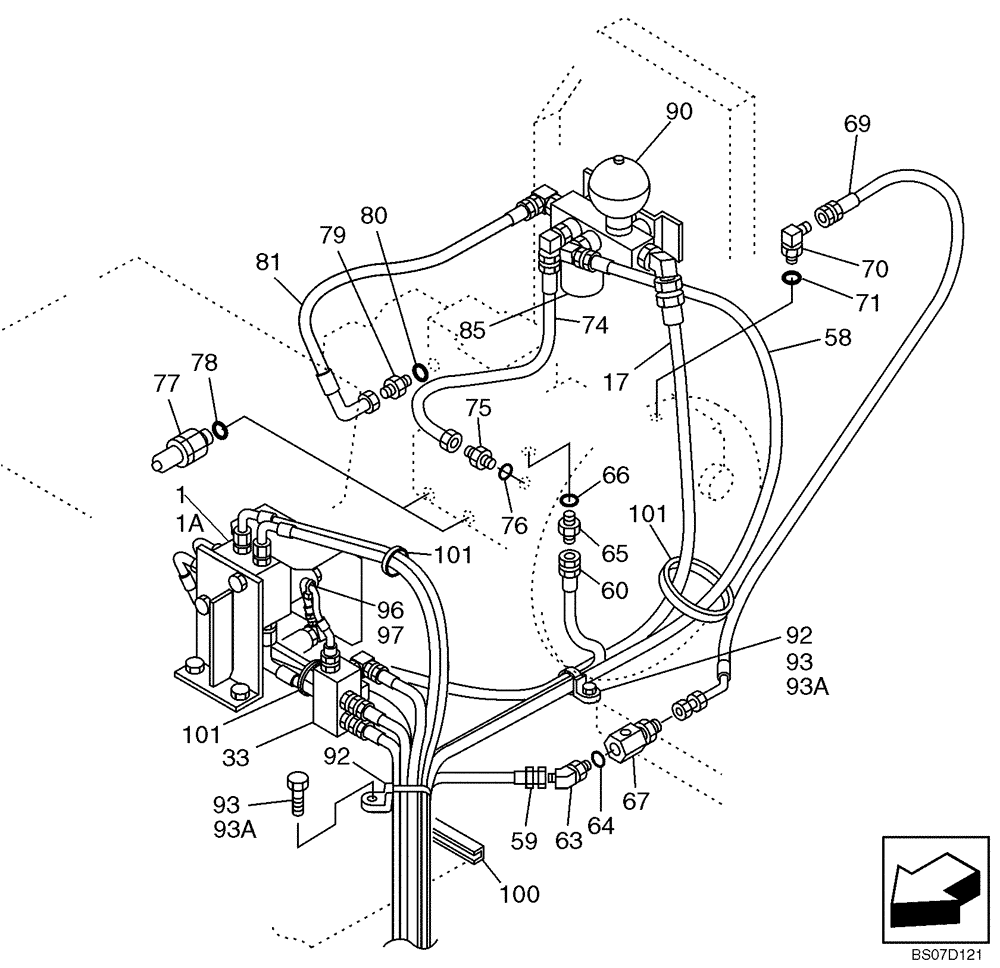

Схема запчастей Case CX240LR - (08-26) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (Mar 2 2011 9:20AM) (08) - HYDRAULICS
67
80
75
1
69
92
59
77
58
93a
74
90
81
93
101
66
76
64
100
85
1a
101
17
79
33
70
60
92
65
96
93a
78
93
63
101
97
71

Артикул

Название

Примечание

Количество

RETURN

1шт.

1

KHJ1972

SOLENOID VALVE

Solenoid; See Figure 08-26; 08-44B; No Longer Available, Order KHJ15460

1шт.

1a

KHJ15460

SOLENOID VALVE

See Figure 08-26; 08-44C

1шт.

17

163716A1

HOSE

See Figure 08-26A, 08-28

1шт.

33

KRJ6101

MANIFOLD

See Figure 08-27, REF 31

1шт.

58

152270A1

HOSE,6.3mm ID x 2600mm L

See Figure 08-29, REF 56

1шт.

59

157852A1

HOSE,6.30 mm ID x 1650.00 mm

1650 mm (65 in); See Figure 08-29, REF 57

1шт.

60

152778A1

HOSE ASSY.

2700 mm (106-3/8 in); See Figure 08-29, REF 58

1шт.

63

150933A1

ELBOW

Incl. 64

1шт.

64

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

65

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 66

1шт.

66

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

67

167662A1

FITTING

1шт.

69

KAJ3466

HYDRAULIC HOSE

1шт.

70

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 71

1шт.

71

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

74

FAJ0418

HOSE

1шт.

75

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 76

1шт.

76

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

77

KHJ1584

UNION

Incl. 78

2шт.

78

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

79

161084A1

ADAPTER

Incl. 80

1шт.

80

154487A1

O-RING

1шт.

81

KHJ1057

HYDRAULIC HOSE,9.52 mm ID x 650.00 mm

1шт.

85

KHJ2562

MANIFOLD

See Figure 08-28, REF 83; Replaces KHJ1583, KHJ2431

1шт.

90

150894A1

ACCUMULATOR

See Figure 08-28, REF 88

1шт.

92

KHR2582

CLAMP

2шт.

93

KHJ2298

BOLT,Spcl

2шт.

93a

KHJ2622

RUBBER PAD

2шт.

96

KHR2583

CLAMP

1шт.

97

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

1шт.

100

167839A1

GROMMET

1шт.

101

150071A1

MOUNTING CLIP

1шт.

Выбрано товаров: 33
