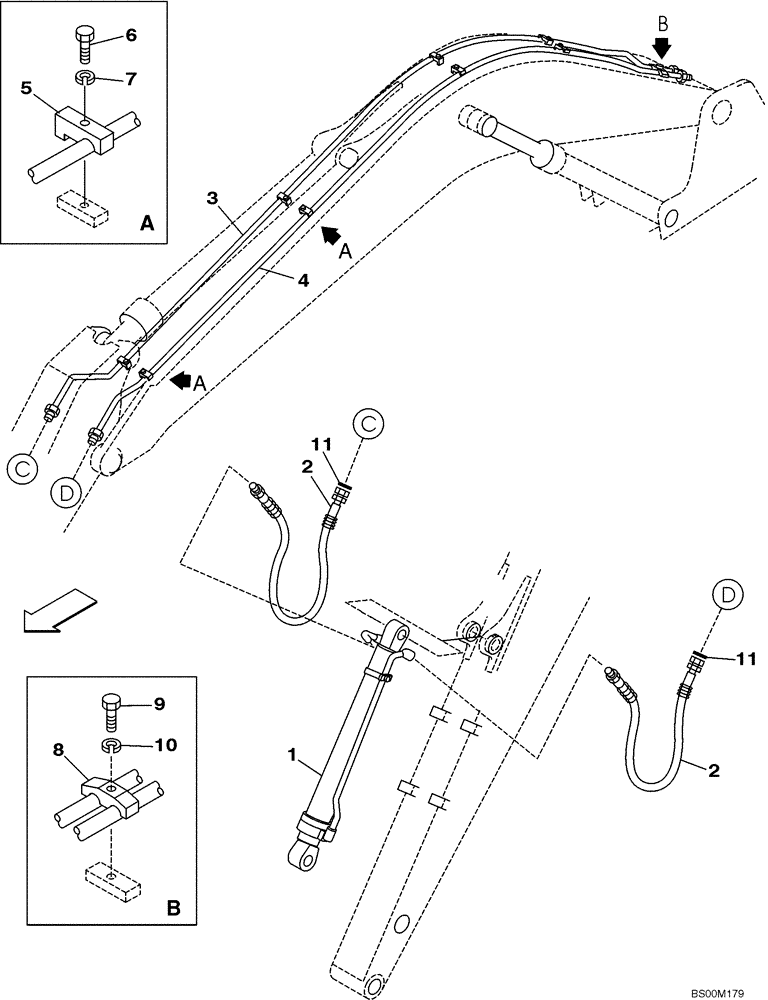

Запчасти Case CX240 (08-13A) - HYDRAULICS - BUCKET, 3,50 M (11 FT 6 IN) ARM (08) - HYDRAULICS

1

KBV1790

BUCKET CYLINDER

Bucket; See Figure 08-49

1шт.

2

KBV1488

HYDRAULIC HOSE,19mm ID x 1950mm L

2шт.

3

KBV1349

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

4

KBV1350

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

5

151486A1

CLAMP BRACKET

4шт.

6

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

4шт.

7

892-11012

LOCK WASHER,M12

4шт.

8

159742A1

COLLAR

1шт.

9

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

1шт.

10

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

1шт.

11

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.
