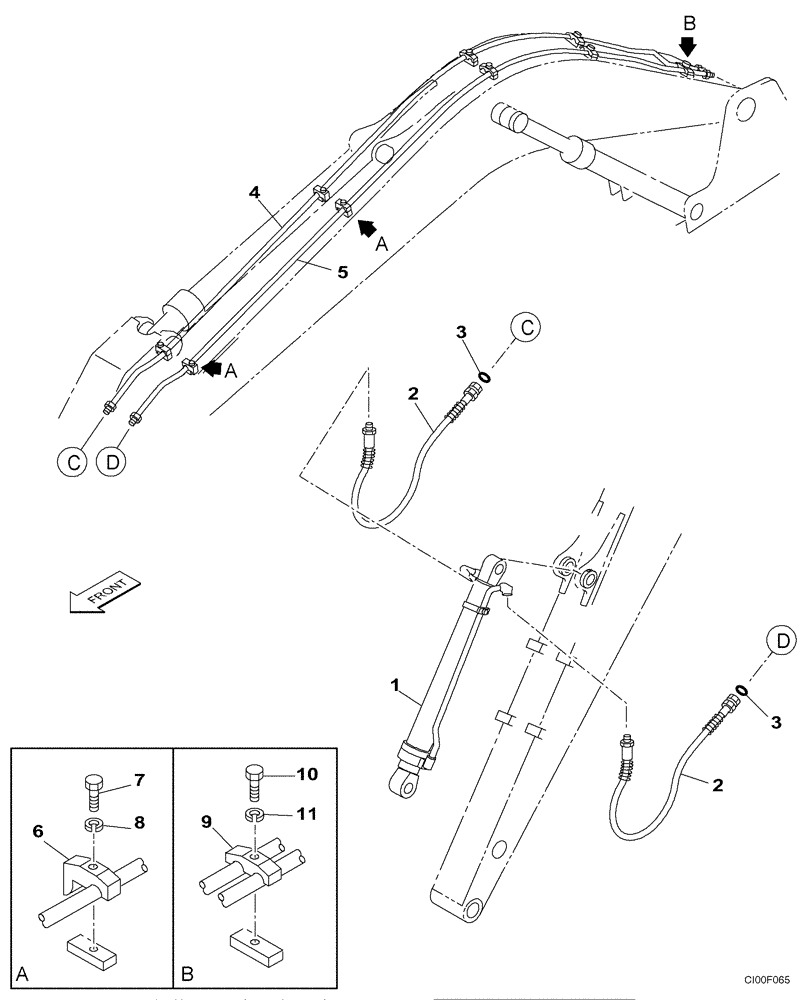

Запчасти Case CX240 (08-13) - HYDRAULICS - BUCKET, 3,09 METER (10 FT 3 IN) ARM (08) - HYDRAULICS

1

KBV1790

BUCKET CYLINDER

Bucket; See Figure 08-49

1шт.

2

KRV2407

HYDRAULIC HOSE,19.00 mm ID x 1550.00 mm

2шт.

3

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

4

KBV1349

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

3-1

154503A1

O-RING

Not Shown

2шт.

5

KBV1350

HYD TUBE,20.8 mm ID x 27.2 mm OD

2шт.

6

151486A1

CLAMP BRACKET

4шт.

7

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

4шт.

8

892-11012

LOCK WASHER,M12

4шт.

9

159742A1

COLLAR

1шт.

10

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

1шт.

11

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

1шт.
