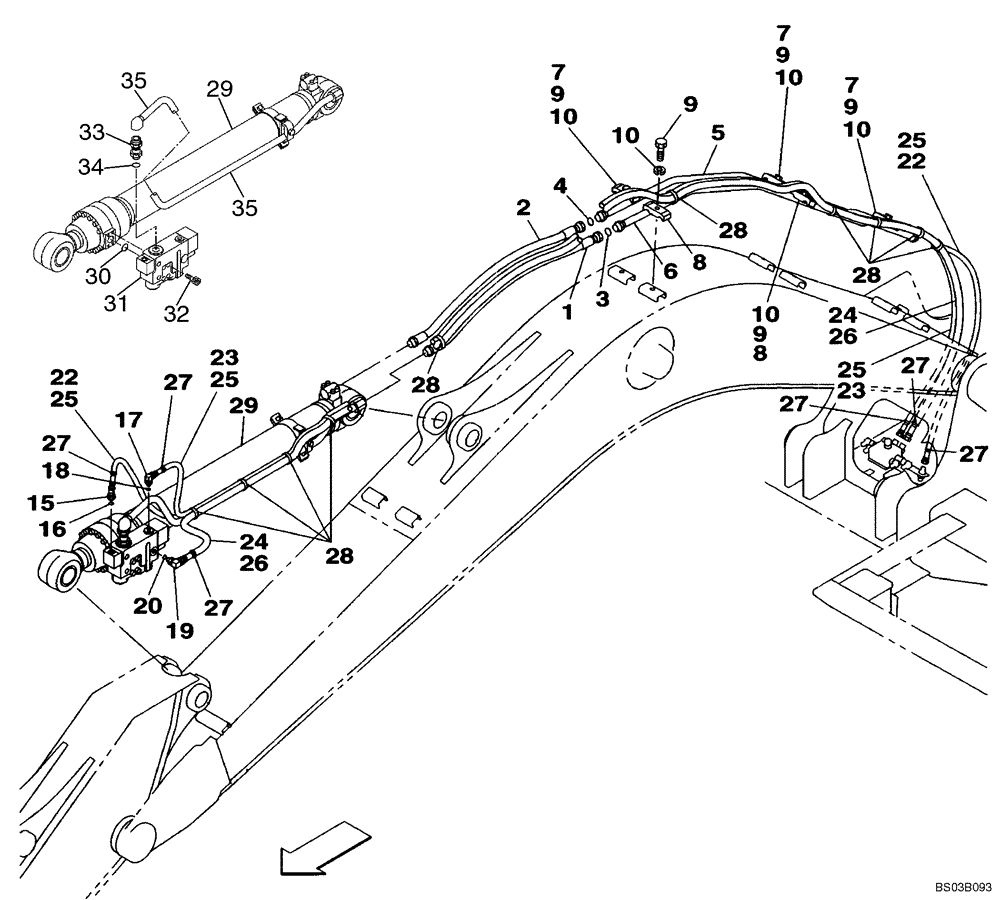

Запчасти Case CX240 (08-12A) - HYDRAULICS - ARM CYLINDER, MODELS WITH LOAD HOLD (Nov 3 2009 8:16AM) (08) - HYDRAULICS

1

KRV2405

HYDRAULIC HOSE,19mm ID x 1000mm L

1шт.

2

KRV2406

HYDRAULIC HOSE,25.4mm ID x 1000mm L

1шт.

3

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

4

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

5

KBV17600

HYD TUBE

TUBE ASSY., Replaces KBV1346

1шт.

6

KBV17670

HYD TUBE

TUBE ASSY., Replaces KBV1773

1шт.

7

151489A1

CLAMP

3шт.

8

159742A1

COLLAR

2шт.

9

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

5шт.

10

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

5шт.

15

157584A1

ELBOW

Incl. 16

1шт.

16

154475A1

O-RING

1шт.

17

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 18

1шт.

18

154475A1

O-RING

1шт.

19

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 20

1шт.

20

154487A1

O-RING

1шт.

22

KBV1863

HYDRAULIC HOSE,9.50 mm ID x 7000.00 mm

1шт.

23

KRV2865

HYDRAULIC HOSE,9.50 mm ID x 6800.00 mm

1шт.

24

KBV1782

HYDRAULIC HOSE,12.70 mm ID x 6700.00 mm

1шт.

25

169298A1

PLASTIC-RUBBER TUBE

2шт.

26

169302A1

PLASTIC-RUBBER TUBE

1шт.

27

150067A1

MOUNTING CLIP

6шт.

28

150496A1

MOUNTING CLIP

1шт.

29

KBV1687

HYDRAULIC CYLINDER

Arm; See Figure 08-48A

1шт.

30

155211A1

O-RING

1шт.

31

KBV1858

VALVE

See Figure 08-48B

1шт.

32

862-12090

HEX SOC SCREW,M12 x 90mm, Cl 12.9

4шт.

33

KHV0326

ADAPTER

Incl. 34

1шт.

34

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

35

KBV1886

TUBE ASSY.,20.8 mm ID x 27.2 mm OD

1шт.
