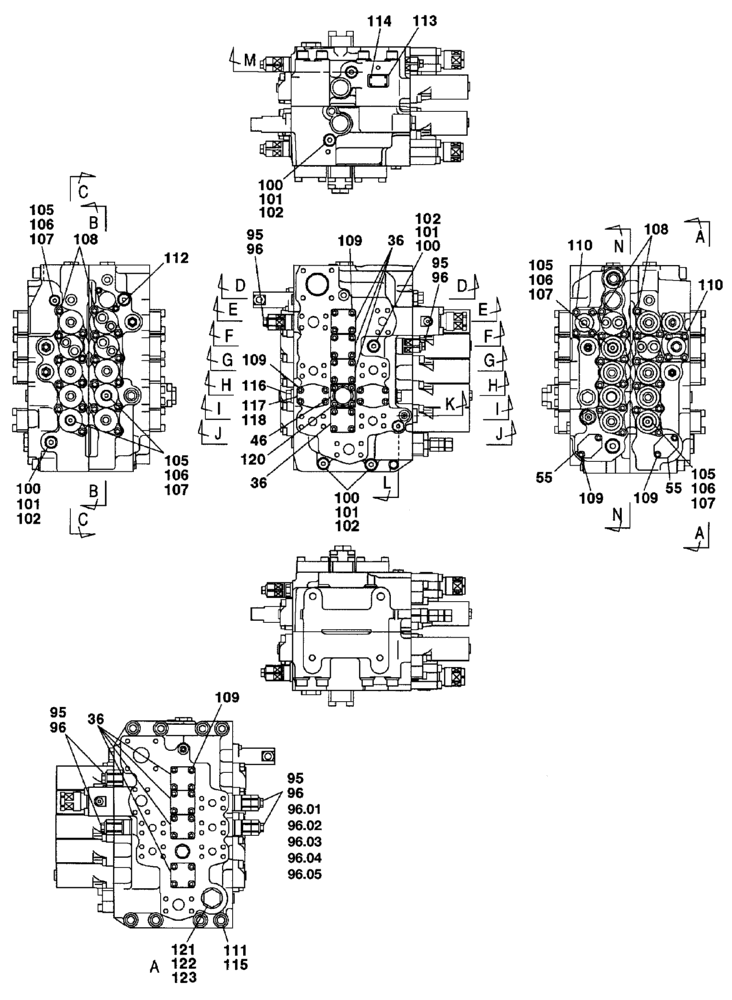

Запчасти Case CX240 (08-101A) - CONTROL VALVE, COMPONENTS (08) - HYDRAULICS

KBJ10200

DISTRIBUTOR

1шт.

Consists Of Ref. Numbers 1-128, See Page(s) 08-101 To 08-105

1шт.

36

LH00248

CAP

8шт.

46

LH00249

CAP

1шт.

55

LH00250

CAP

2шт.

95

LJ00734

HYDRAULIC VALVE

6шт.

Consists Of Ref. Number 96

1шт.

95a

LJ013350

HYDRAULIC VALVE

1шт.

Boom Lowers / Consists Of Ref. Number 96

1шт.

96

155223A1

O-RING

2шт.

96.01

154463A1

O-RING

1шт.

96.02

164905A1

BACK-UP RING

2шт.

96.03

164906A1

O-RING

1шт.

96.04

163323A1

O-RING

1шт.

96.05

164575A1

BACK-UP RING

2шт.

100

163369A1

PLUG

5шт.

Consists Of Ref. Numbers 101, 102

1шт.

101

NSS

NOT SOLD SEPARAT

Plug

1шт.

102

154475A1

O-RING

1шт.

105

163972A1

PLUG

5шт.

Consists Of Ref. Numbers 106, 107

1шт.

106

NSS

NOT SOLD SEPARAT

Plug

1шт.

107

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

108

160287A1

BOLT,Hex Skt

40шт.

109

863-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

44шт.

110

861-10070

HEX SOC SCREW,M10 x 70mm, Cl 12.9

M10 x 70; 12.9

8шт.

111

862-16130

HEX SOC SCREW,M16 x 130mm, Cl 12.9

M16 x 130; 12.9

8шт.

112

LUC0118

BOLT,Hex Skt Hd

2шт.

113

NSS

NOT SOLD SEPARAT

Plate

1шт.

114

NSS

NOT SOLD SEPARAT

Rivet

4шт.

115

156170A1

WASHER

8шт.

116

165839A1

PLUG

2шт.

See Page(s) 08-151-00

1шт.

117

LR00579

PLUG

2шт.

118

168198A1

O-RING

2шт.

120

862-10055

HEX SOC SCREW,M10 x 55mm, Cl 12.9

M10 x 55

4шт.

121

LK00302

PLUG

1шт.

Consists Of Ref. Numbers 122, 123

1шт.

122

165836A1

PLUG

1шт.

123

154503A1

O-RING

1шт.
