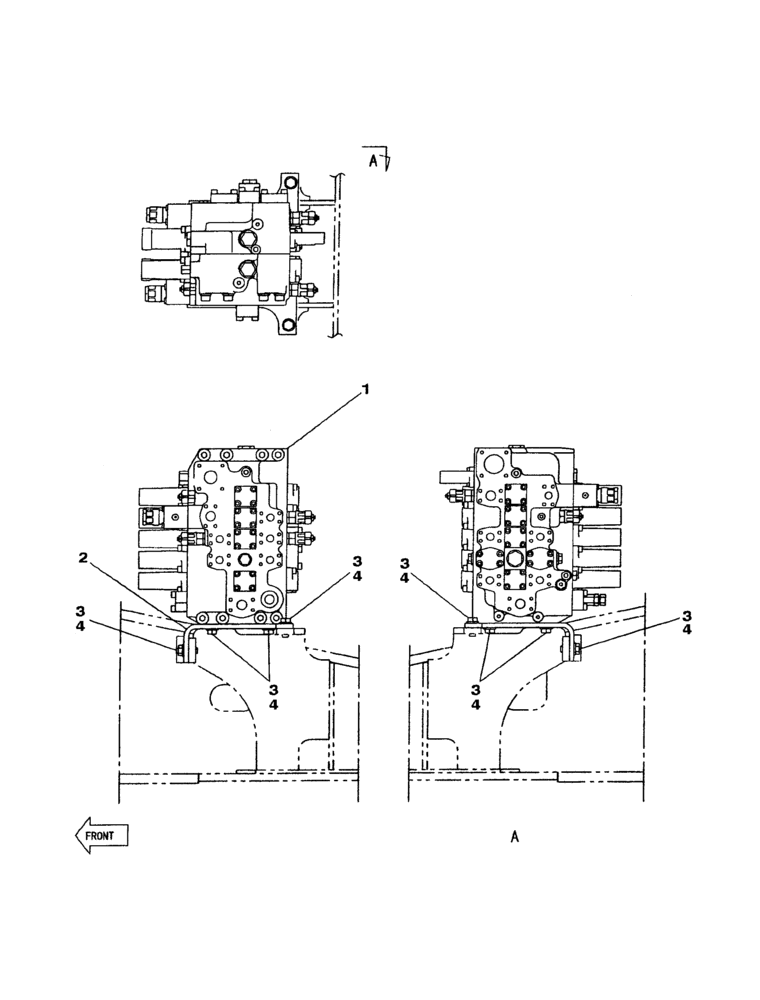

Запчасти Case CX240 (08-100) - CONTROL VALVE, SUPPORT (08) - HYDRAULICS

1

KBJ2747

VALVE, CONTROL

1шт.

BSN DAC02724397 / See Page(s) 08-101 To 08-105

1шт.

1

KBJ10200

DISTRIBUTOR

1шт.

ASN DAC0274938 / See Page(s) See Page(s) 08-101 To 08-105

1шт.

2

KRJ5754

BRACKET

1шт.

3

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

8шт.

4

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.
