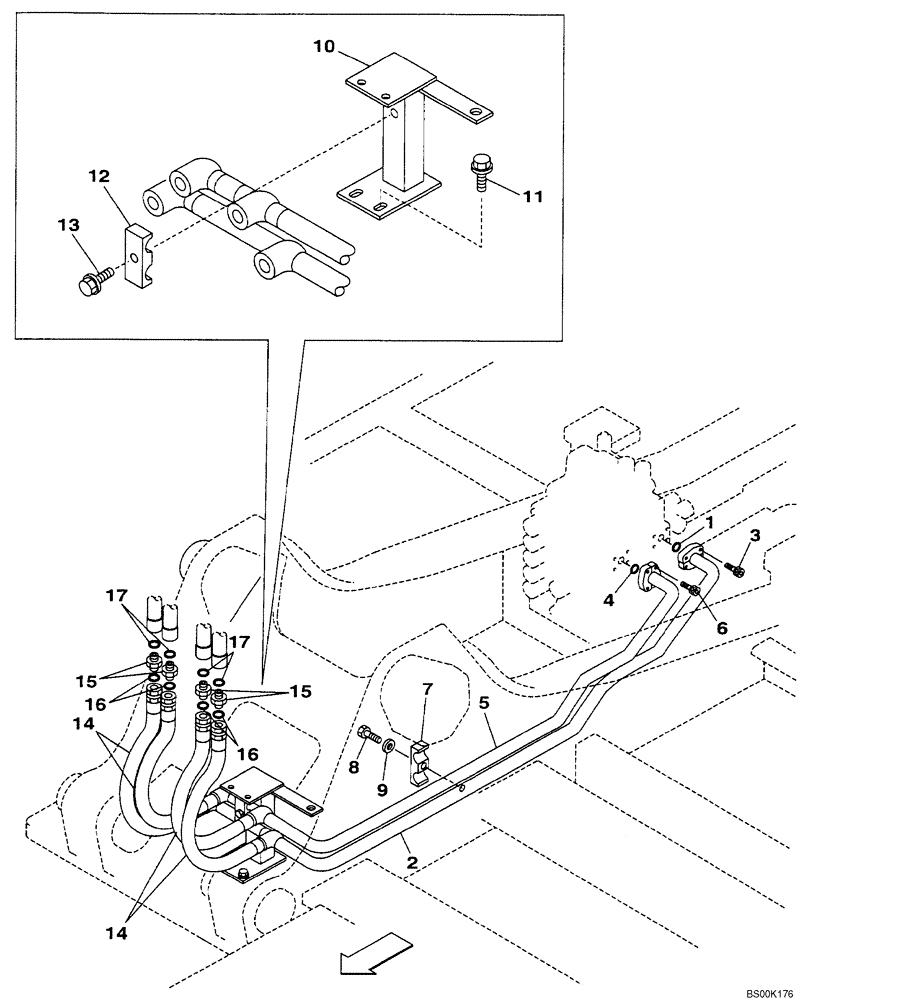

Запчасти Case CX240 (08-10) - HYDRAULICS - BOOM (08) - HYDRAULICS

1

154528A1

O-RING

1шт.

2

KBJ2827

TUBE ASSY.,26 mm ID x 34 mm OD

1шт.

3

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

4

154548A1

O-RING

1шт.

5

KBJ2826

TUBE ASSY.,6 mm ID x 8 mm OD

1шт.

6

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

7

153186A1

COLLAR

1шт.

8

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

1шт.

9

150811A1

WASHER

M12

1шт.

10

KBJ2983

BRACKET

Replaces KRJ6437

1шт.

11

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

12

152085A1

COLLAR

1шт.

13

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

14

KRJ5760

HYDRAULIC HOSE,19.00 mm ID x 790.00 mm

4шт.

15

KHJ1348

ADAPTER

Incl. 16

4шт.

16

154503A1

O-RING

1шт.

17

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.
