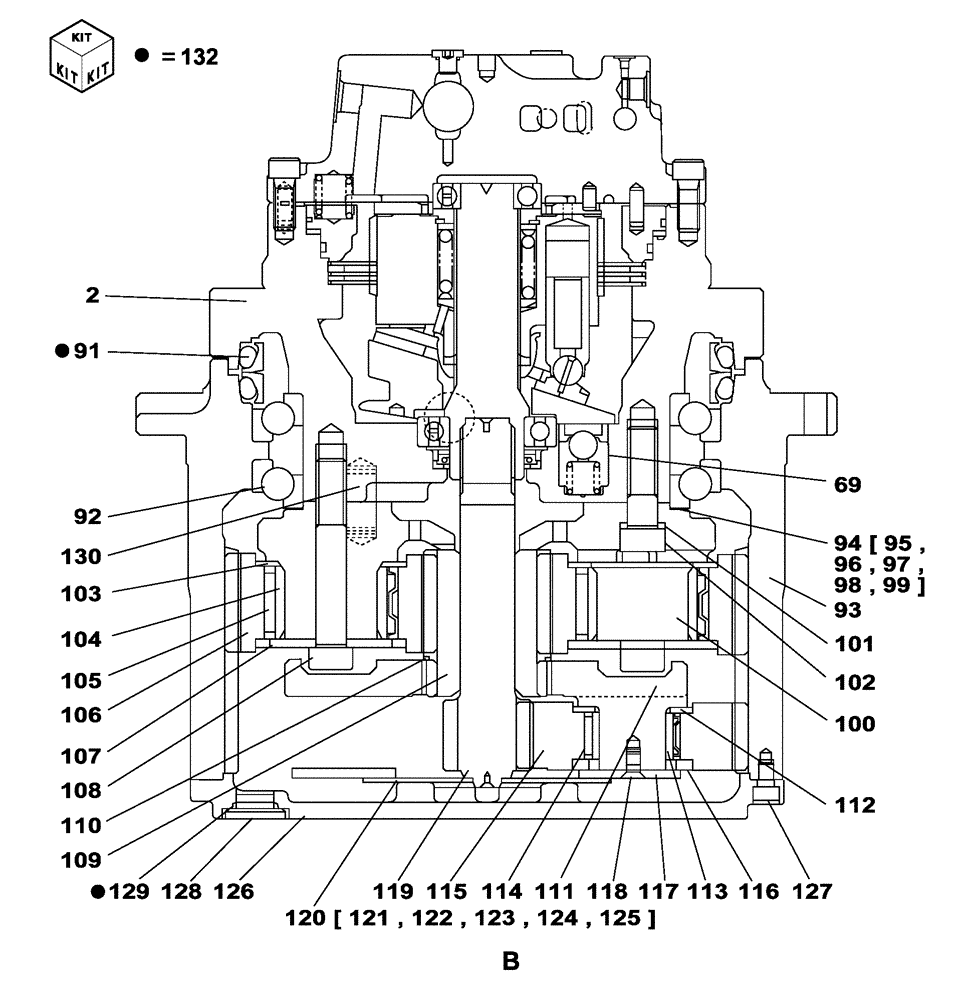

Запчасти Case CX240 (06-08[01]) - TRAVEL MOTOR & REDUCTION GEAR (KBA10060) (06) - POWER TRAIN

KBA10060

MOTO-REDUCTION GEAR

1шт.

91

LE01126

SEAL

2шт.

92

LB00548

BEARING

2шт.

93

NSS

NOT SOLD SEPARAT

1шт.

94

LH00254

SHIM KIT

1шт.

Consists Of Ref. Numbers 95 To 99

1шт.

95

NSS

NOT SOLD SEPARAT

Plate

1шт.

96

NSS

NOT SOLD SEPARAT

Plate

1шт.

97

NSS

NOT SOLD SEPARAT

Plate

1шт.

98

NSS

NOT SOLD SEPARAT

Plate

1шт.

99

NSS

NOT SOLD SEPARAT

Plate

1шт.

100

LS00129

HOLDER

1шт.

101

LA00702

WASHER

8шт.

102

LA00703

BOLT

8шт.

103

LR00583

PLATE

4шт.

104

LB00549

RING RACE

4шт.

105

LB00550

BEARING

4шт.

106

LC00163

SUN GEAR

4шт.

107

LR00584

PLATE

4шт.

108

LA00704

BOLT

4шт.

109

LC00164

SUN GEAR

1шт.

110

LA00705

RING, SNAP

RING SNAP

1шт.

111

LS00130

HOLDER

1шт.

112

LR00585

PLATE

3шт.

113

LB00551

RING RACE

3шт.

114

LB00552

BEARING

3шт.

115

LC00165

SUN GEAR

3шт.

116

LR00586

PLATE

3шт.

117

LR00587

PLATE

1шт.

118

LV00029

SCREW

3шт.

119

LC00166

SUN GEAR

1шт.

120

LR00588

DISC

1шт.

Consists Of Ref. Numbers 121 To 125

1шт.

121

NSS

NOT SOLD SEPARAT

Plate

1шт.

122

NSS

NOT SOLD SEPARAT

Plate

1шт.

123

NSS

NOT SOLD SEPARAT

Plate

1шт.

124

NSS

NOT SOLD SEPARAT

Plate

1шт.

125

NSS

NOT SOLD SEPARAT

Plate

1шт.

126

LW00316

COVER

1шт.

Order LW005570

1шт.

126

LW005570

COVER

1шт.

Consists Of Screw 108R01Z020N Qty 16

1шт.

127

108R010Z016N

BOLT

M10 x 16

16шт.

127

108R010Z020N

BOLT

M10 x 20

16шт.

128

165681A1

PLUG

3шт.

129

154503A1

O-RING

3шт.

130

160104A1

PIN

4шт.

LZ006880

SEAL KIT

1шт.

Consists Of Ref. Numbers 10, 16, 18, 28, 30, 31, 36, 37, 44, 52, 55, 74, 78, 79, 84, 85

1шт.

LZ006890

REPAIR KIT

1шт.

Consists Of Ref. Numbers 91, 129

1шт.

LZ006910

REPAIR KIT

1шт.

Consists Of Ref. Numbers 2, 69

1шт.

LZ006900

REPAIR KIT

1шт.

Consists Of Ref. Number 4, 6 To 10, 38, 39, 47 To 52

1шт.

LN001410

REDUCER

1шт.

Consists Of Ref. Numbers 2, 69, 91 To 130

1шт.
