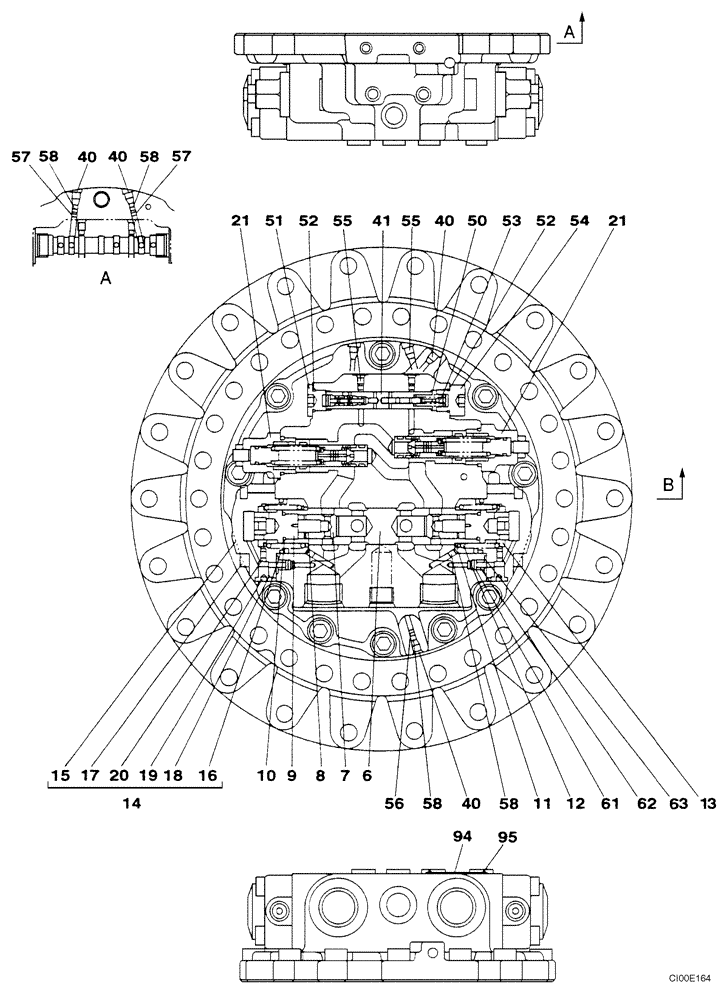

Запчасти Case CX240 (06-03) - MOTOR ASSY - TRAVEL, INLET AND OUTLET (06) - POWER TRAIN

KRA1426

MOTO-REDUCTION GEAR

Travel; Incl. 6 - 95; Also Incl. Parts On Figure(s) 06-02, 06-04

1шт.

KRA1860

MOTO-REDUCTION GEAR

Travel; Incl. 6 - 95; Also Incl. Parts On Figure(s) 06-02, 06-04

1шт.

6

NSS

NOT SOLD SEPARAT

Spool

1шт.

7

NSS

NOT SOLD SEPARAT

Plug

2шт.

8

NSS

NOT SOLD SEPARAT

Finger

2шт.

9

NSS

NOT SOLD SEPARAT

Tappet

2шт.

10

154495A1

O-RING

2шт.

11

156110A1

SPRING SEAT

2шт.

12

160261A1

SPRING

2шт.

13

156111A1

SPRING SEAT

2шт.

14

LR00580

PLUG

Incl. 15 - 20

2шт.

15

NSS

NOT SOLD SEPARAT

Cap

1шт.

16

154589A1

O-RING

1шт.

17

861-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

4шт.

18

154455A1

O-RING

1шт.

19

164024A1

PLUG

1шт.

20

NSS

NOT SOLD SEPARAT

End

1шт.

21

160565A1

VALVE

See Figure 06-04, REF 21; Replaces LJ00743

2шт.

40

NSS

NOT SOLD SEPARAT

Plug

4шт.

41

NSS

NOT SOLD SEPARAT

Spool; See Figure 06-04, REF 42

1шт.

50

LG00343

COMPRESSION SPRING

1шт.

51

LK00329

PLUG

1шт.

52

154487A1

O-RING

2шт.

53

LS00127

GUIDE

1шт.

54

LK00306

PLUG

1шт.

55

NSS

NOT SOLD SEPARAT

Plug

6шт.

56

NSS

NOT SOLD SEPARAT

Plug, Blank-Off

1шт.

57

NSS

NOT SOLD SEPARAT

Plug, Blank-Off

2шт.

58

NSS

NOT SOLD SEPARAT

Plug, Blank-Off

5шт.

61

LJ00744

CHECK VALVE

2шт.

62

LG00344

COMPRESSION SPRING

2шт.

63

154471A1

O-RING

Replaces 155059A1

2шт.

94

NSS

NOT SOLD SEPARAT

Plate

1шт.

95

NSS

NOT SOLD SEPARAT

Rivet

2шт.

LZ00378

SEAL KIT

Incl. 10, 16, 18, 52, 63, Also Includes Parts on Figure 06-04

1шт.

LZ00381

HYDRAULIC MOTOR

Incl. 6 - 10, 40, 41, 55 - 58

1шт.
