Запчасти Case CX240 (02-19) - FLYWHEEL - HOUSING (02) - ENGINE

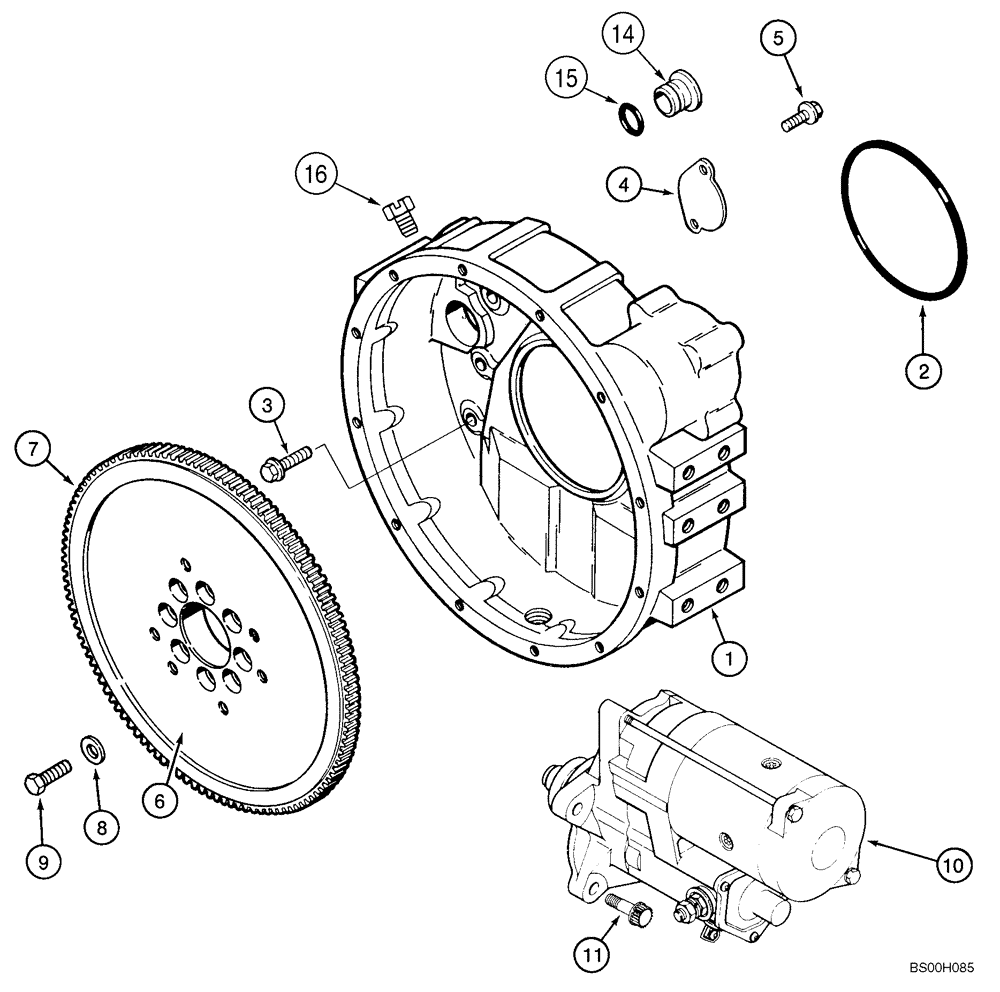

Схема запчастей Case CX240 - (02-19) - FLYWHEEL - HOUSING (02) - ENGINE
11
4
14
5
2
8
9
1
16
3
15
7
10
6

Артикул

Название

Примечание

Количество

*

6TAA-5904 EMISSIONS CERTIFIED ENGINE

1шт.

1

J937426

HOUSING

Flywheel

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING

1шт.

3

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

8шт.

4

J925234

PLATE

1шт.

5

J912072

SELF-TAP SCREW

2шт.

6

J282053

FLYWHEEL WITH GEAR

Incl. 7

1шт.

7

J905427

GEAR

1шт.

8

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

8шт.

9

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

10

1987566C1

STARTER MOTOR,24V, 5.5kW

See Figure 04 -01

1шт.

10

1987566C1R

REMAN-STARTER,24V, 5.5kW

Reman For New PN 1987566C1

1шт.

10

1987566C1C

CORE-STARTER,24V, 5.5kW

Return Number

1шт.

10

1987566C1GV

STARTER MOTOR,24V, 5.5kW

Value

1шт.

11

87440692

12 PT SCREW,Flg, M10 x 1.5 x 35mm

Replaces J903834

2шт.

12

J919666

STUD

Not Illustrated

1шт.

13

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

Not Illustrated

1шт.

14

J910248

PLUG

1шт.

15

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

16

353-225

PLUG,Sltd Hd, 3/4"-16

1шт.

Выбрано товаров: 20
